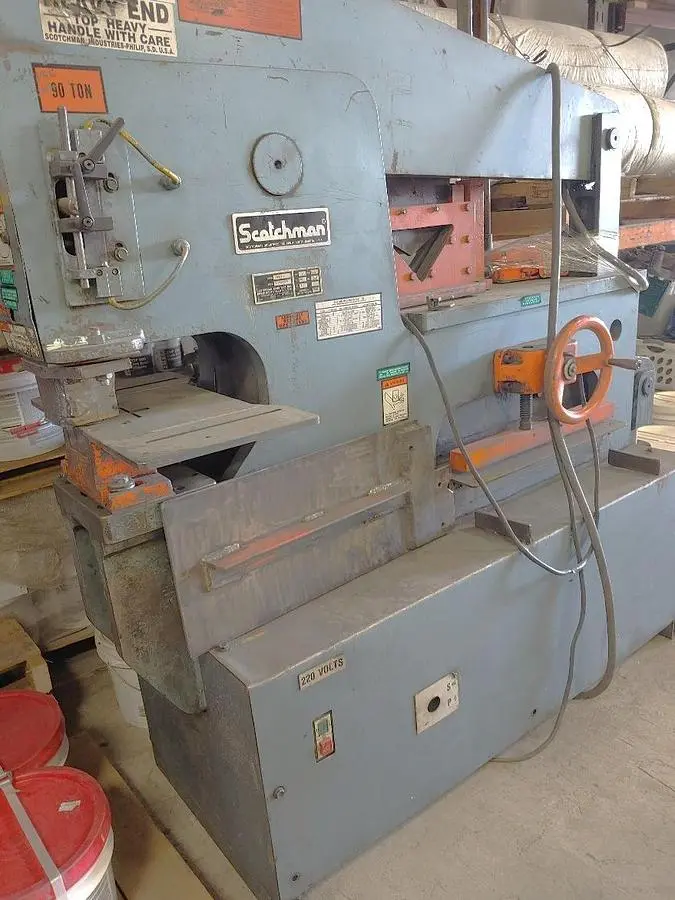

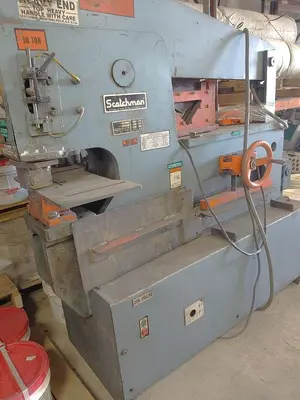

USED 2004 SCOTCHMAN 9012-24M 90 TON IRON WORKER

90 Ton Punch Station
24" Wide Flat Bar Shear
Angle Shear Capability
Punch Gauging Table
Punch Jog Control
Remote Foot Pedal
Wired 220V 3 Phase Power

The Scotchman 9012-24M Iron Worker is a robust fabrication machine designed for heavy-duty tasks. It offers a punching power of 90 tons, with a throat depth of 12 inches, and can handle a maximum capacity of punching a 1.125-inch hole through 1-inch thick materials. This machine efficiently shears angles up to 6 inches by 6 inches by 0.5 inches at 90 degrees and handles flat bars measuring 24 inches with capacities of 1 inch by 8 inches or 1/4 inch by 24 inches.

For shearing, the 9012-24M is versatile with capabilities for square bars ranging from 1/4 inch to 1 inch and round bars from 1/4 inch to 1 1/4 inches. The square tube shear accommodates dimensions from 1/2 inch to 2 inches with a 12 gauge thickness. It also features rectangular notching capabilities of 2 inches by 2 1/5 inches by 3/8 inch, ideal for precise and reliable notching tasks.

Powered by a 5 HP motor, the machine runs efficiently while its substantial build is reflected in its dimensions of 76 inches in length, 26 inches in width, and 70 inches in height, with a weight of 4,300 lbs. Suitable for varied industrial applications, this ironworker offers substantial reliability and versatility for fabrication shops looking to enhance productivity with durable and precise machinery.

Punching Power: 90 Ton
Throat: 12"
Maximum Capacity: 1.125" Hole x 1" Thickness
Shearing Angles at 90 Degrees: 6" x 6" x .5"
Shearing of Flat Bars: 24" Bar (1" x 8" , 1/4" x 24")
Shearing of Square Bars: 1/4" - 1", 1 CAV.
Shearing of Round Bars: 1/4" - 1 1/4", 9 CAV.
Square Tube Shear: 1/2" - 2", 12 Gauge
Rectanglular Notching: 2" x 2 1/5" x 3/8"
Main Motor: 5 HP
Machine Dimensions LxWxH: 76" x 26" x 70"
Machine Weight: 4,300 lbs
