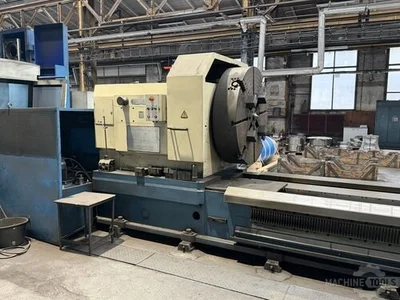

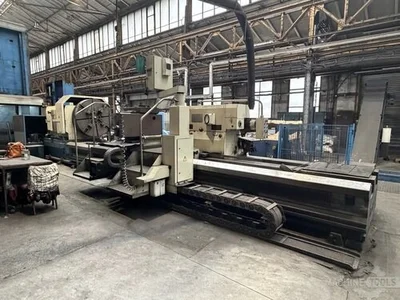

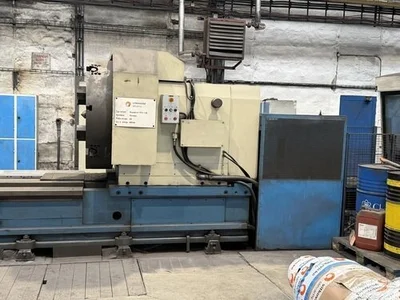

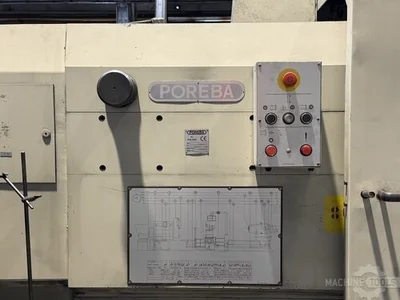

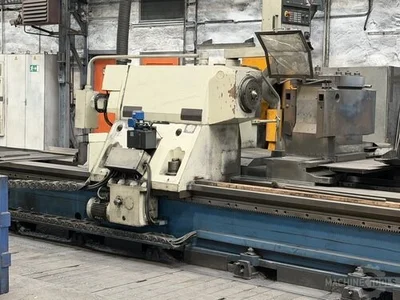

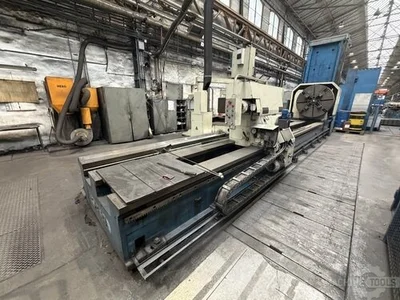

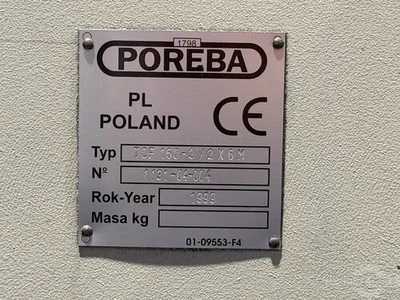

USED 2001 POREBA TCF160

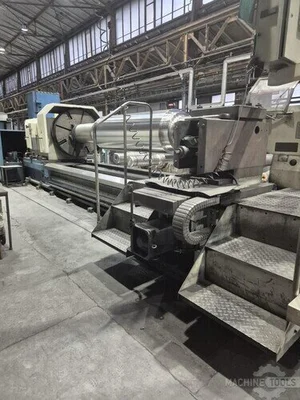

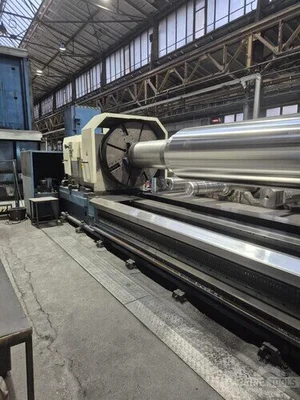

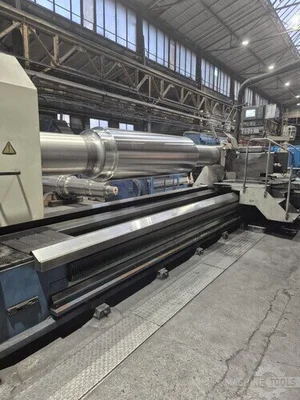

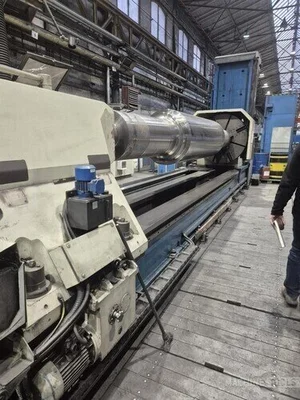

Turning large shafts and heavy cylindrical parts, like those used in shipbuilding, power generation, mining, and heavy machinery.
When equipped with optional tooling, it can also perform drilling and milling operations in addition to turning.
Rigid construction with hardened guideways and heavy cast components for stability.
Milling attachment 5,5 kW with Sk-40 taper
Central lubrication

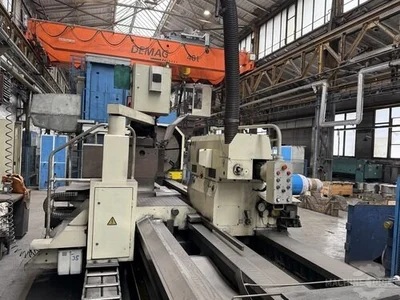

Motorized tailstock

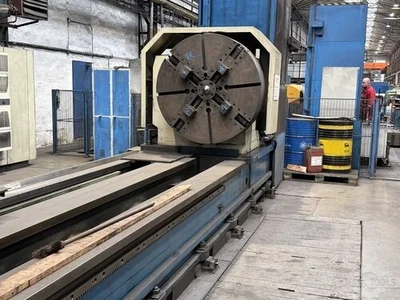

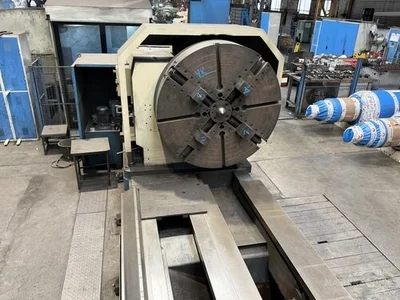

4 Chuck 1300 mm

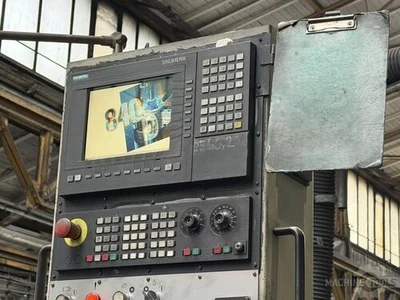

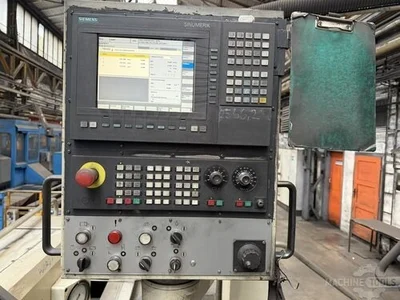

CNC control SIEMENS 840D with following softeare options:
MMC Easy Mask
Spline interpolation
Look Ahead
Contour re-alignment
Mantel surface programming
Full C-Axis 360.0000

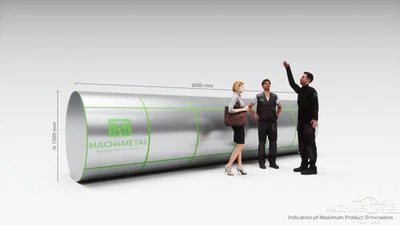

Swing over bed Ø: 1600 mm
Swing over cross slide Ø: 1300 mm
DBC Turning Length: 6000 mm
Spindle power: 100 kW
Tailstock spindle Ø: 280 Ø
Stroke pinole: 200 mm
Workpiece weight: 40000
Power: 125 A
Speeds / ranges: 250 Rpm
Length: 9550 mm
Width: 2950 mm
Height: 2875 mm
Weight: 41000 kg
