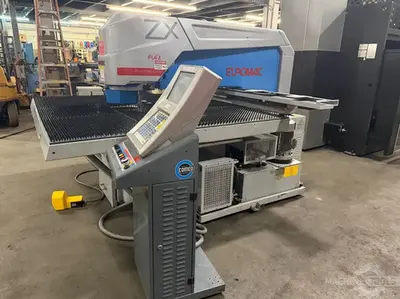

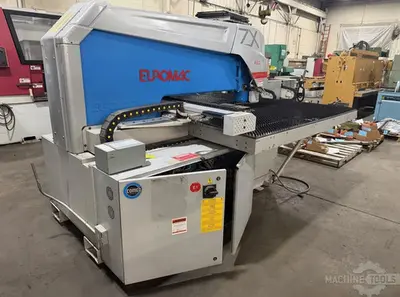

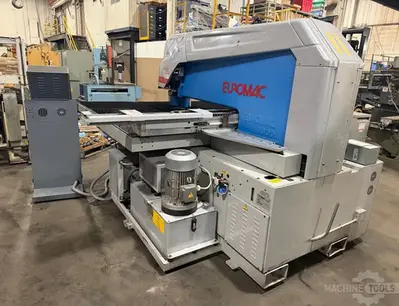

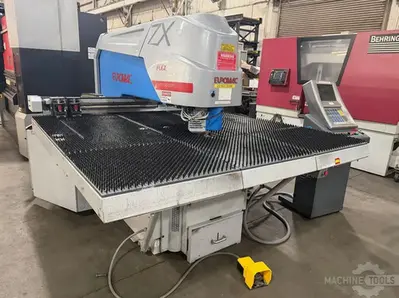

USED 2013 EUROMAC ZX

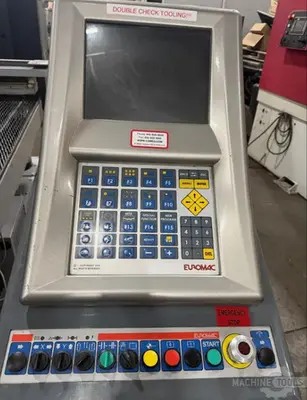

33 Tons, 40” X 50” CNC Turret Punch with Euromac CNC Control, Accepts up to a 10 Station Multi Tool, 360° Bi-Directional Rotation of Tooling and Brush Table.GENERAL SPECIFICATIONS Max Punching Force:                        33 TonsY - Axis Travel:                            40” X - Axis Travel:                            50”Automatic Repositioning in X - Axis:                393”Stroke Depth:                            .004” - 1.22”Opening of Clamps:                            .275”Max Hit Rate with .787” Pitch:                    375 Per MinMax Nibbling Rate with .039” Pitch:                1,000 Per MinMarking Speed:                            2,000 IPMMaterial Thickness Range:                        .024” - .314”Maxmaterial Thickness with Optional Clamps:            .492”Max Material Weight with Reduced Axis Speed:            330 LbsMain Motor:                                11 HP Dimensions:                                88” X 128”Weight:                                8,800 Lbs INCLUDES: Euromac CNC Control, Accepts up to a 10 Station Multi Tool, 360° Bi-Directional Rotation of Tooling and Brush Table.
