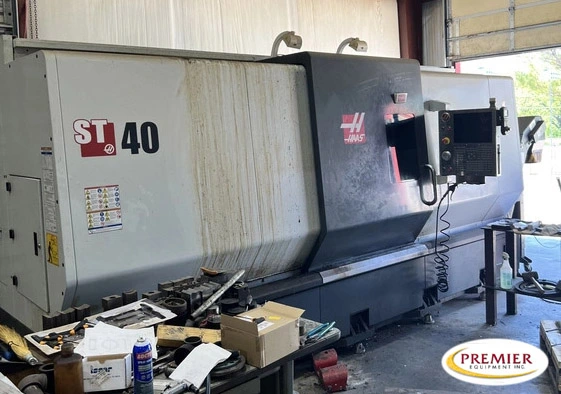

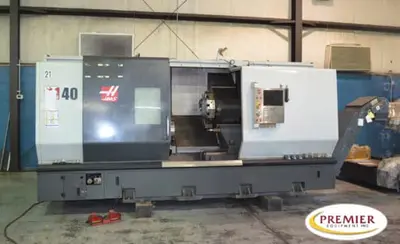

Haas ST40 CNC Turning Center
SWING DIAMETER
Over Front Apron 34.5 “
Over Cross Slide 25.5 “
Over Tailstock 25.5 “
CAPACITIES
Max Cutting Diameter (varies with turret) 25.5 “
Max Cutting Length (without workholding) 44 “
Bar Capacity 4.0 “
TRAVELS & FEEDRATES
X Axis 17 “
Z Axis 44 “
SPINDLE
Max Rating 40 hp
Max Speed 2400 rpm
Max Torque 1400 ft-lb @ 150 rpm
Spindle Nose A2-8
Spindle Bore ø 4.62 “
TURRET
Number of Tools 12 Stations
Haas CNC Control
Kitagawa B-15 3-Jaw Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor
Remote Jog Handle
