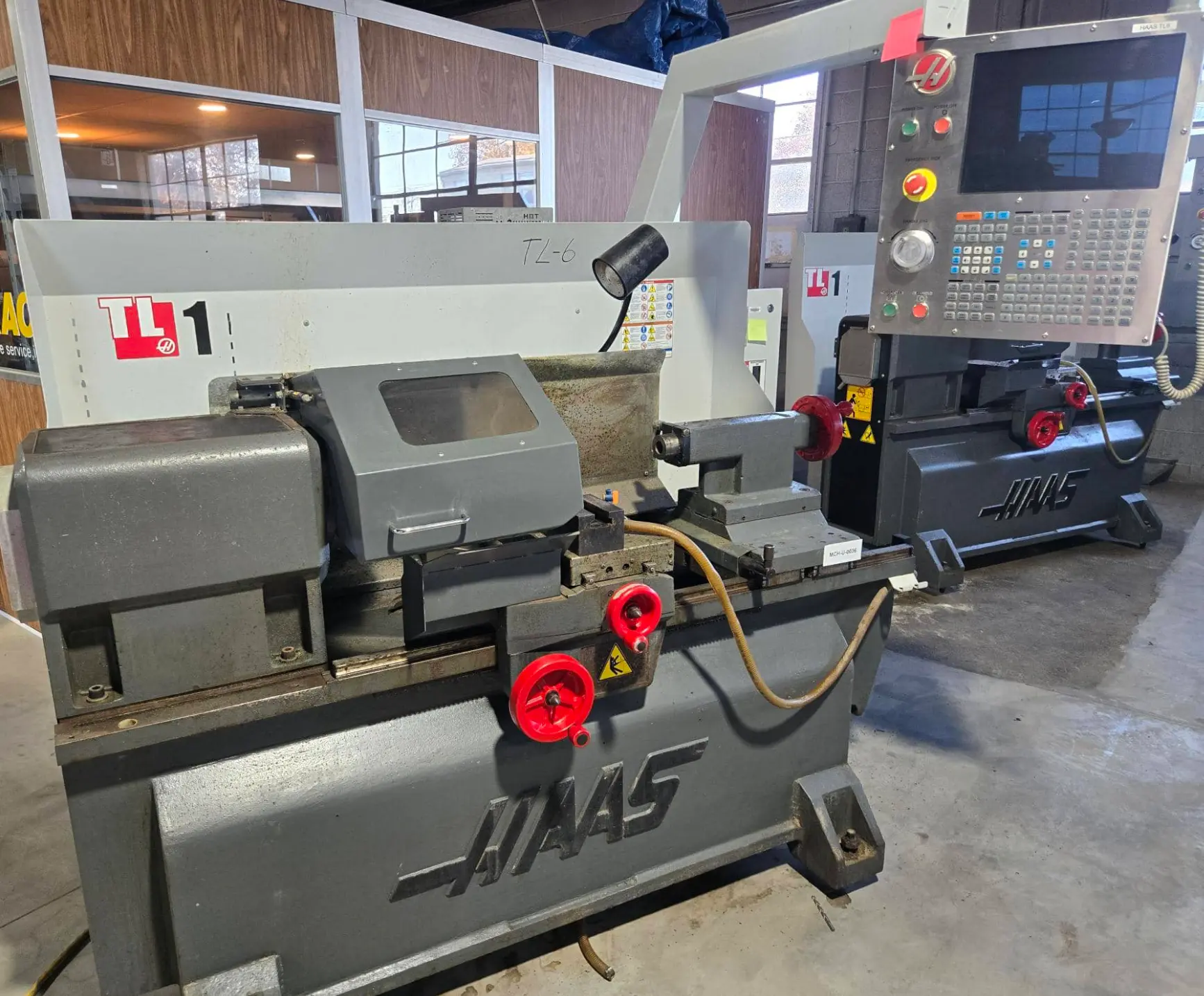

Used CNC Lathe for sale. Features Haas CNC control, 8″ chuck, tailstock, and coolant pump kit. 220V, 10hp, and spindle speed of 1,800 rpm. Max cutting diameter 16″, X-axis travel 8″, Z-axis 30″. Compact dimensions: 78″ × 55″, weight 4,500 lbs.
| Swing | 16" | 406.4 mm |
| Machining Length | 762 mm | 30" |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.25" | 57.15 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 78″ × 55″ | 78″ × 55″ |
| Weight | 4,500 lbs | 4,500 lbs |
Power Requirement: 220V/3 phase
Spindle Motor Power: 10hp
Spindle Speed: 1,800 rpm
Spindle Nose: A2-5 S
Spindle Bore: 2.5″
Bar Capacity: 2.25″
X-Axis Travel: 8″
Z-Axis Travel: 30″
Maximum Cutting Diameter: 16″
Maximum Swing: 16″
Chuck Size: 8″
Machine Dimensions: 78″ × 55″
Machine Weight: 4,500 lbs
Haas CNC Control
8″ Chuck
Tailstock
Chuck Cover
Coolant Pump Kit
Memory Lock Switch
USB Port
15″ Color LCD
1 MB of Memory
Intuitive Programming System
