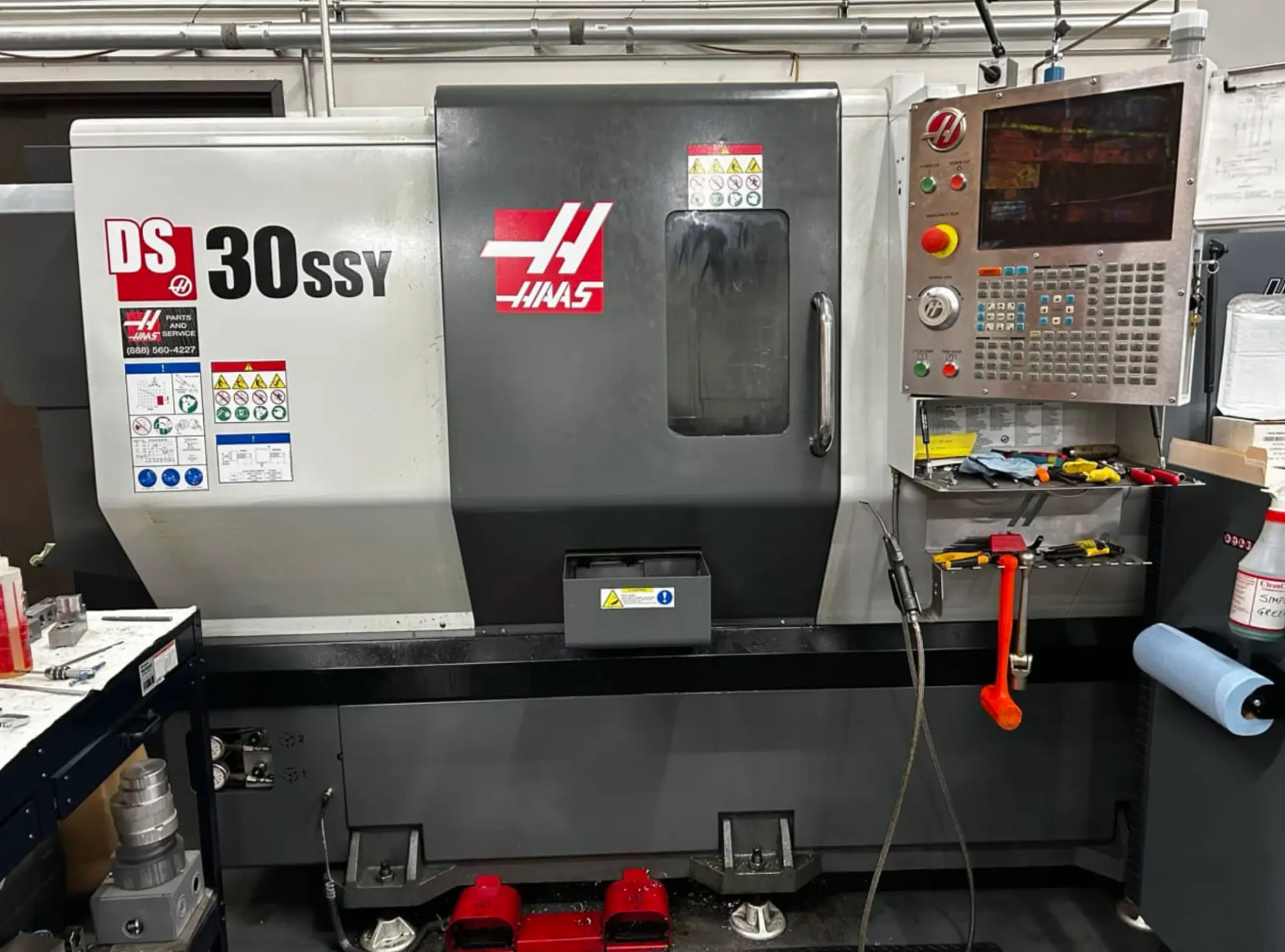

Used CNC Lathe available. Features 4-axis, live tooling, sub spindle, and Haas CNC control. 30 HP power with a max RPM of 4,800. Specs include a 31.75" swing, 23" machining length, 8.3" chuck, and 2" bar capacity.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 23" | 584.2 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,800 RPM | 4,800 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
Max Turning Length: 23″
Max Turning Diameter: 16″
Swing Over Bed: 31.75″
X Axis Travel: 12.5″
Z Axis Travel: 23″
Bar Capacity: 2″
Chuck Size: 8″
Spindle Speed: 4,800 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Sub Spindle:
Bar Capacity: 2.0″
Spindle Speed: 4,800 RPM
Spindle Nose: A2-5
Spindle Motor: 20 HP
Turret: 24 Stations
Haas CNC Control
Sub Spindle
Y Axis
Enclosure Exhaust System
Expanded Memory
High Pressure Coolant System
Parts Catcher
Spindle Liner Kit
Rigid Tapping
