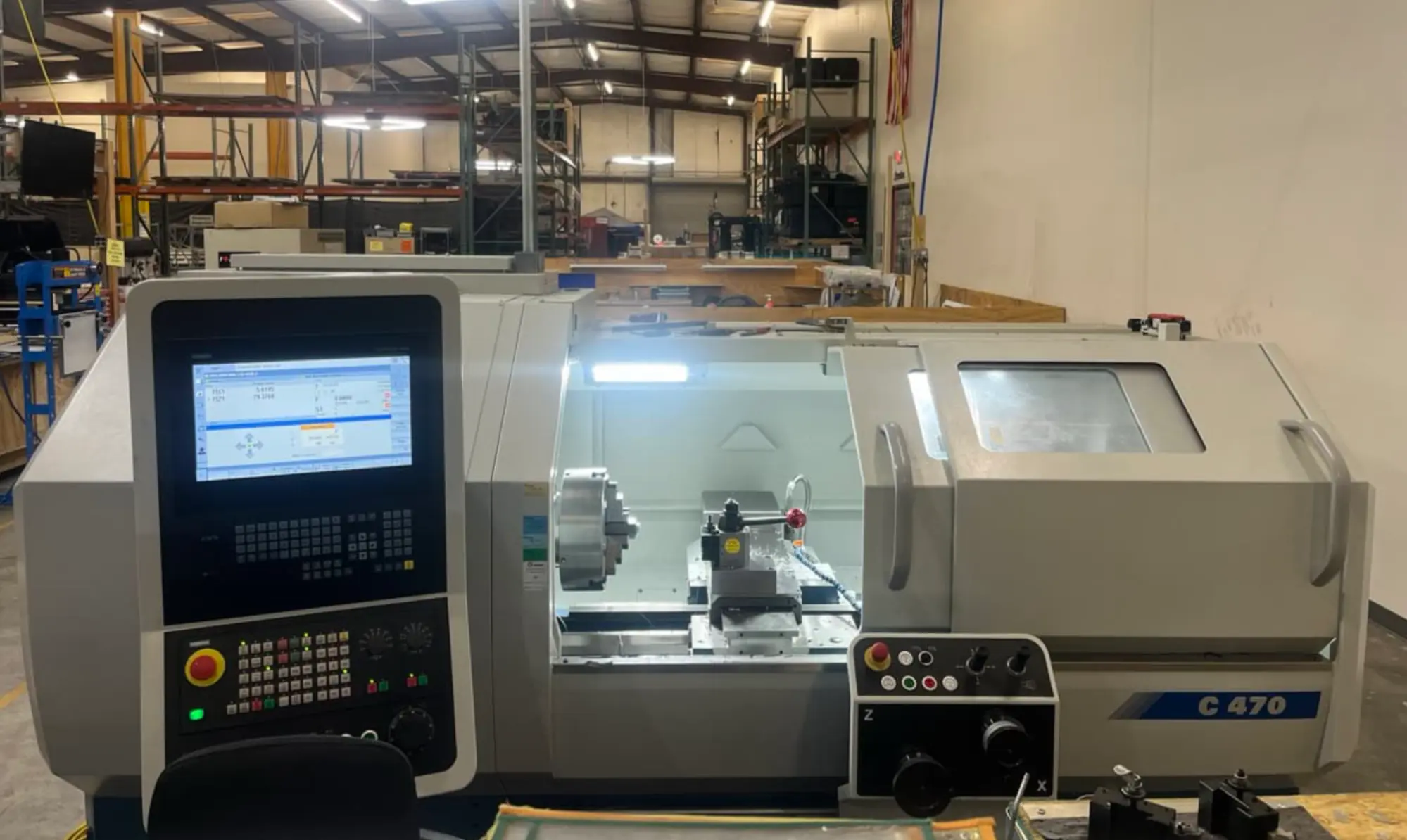

CNC Lathe, used, featuring Siemens Sinumerik 828D Control, spindle speed up to 3,000 rpm, 8-station turret, and 12.5 hp motor. Includes 10 OD holders, 7 ID holders, and tailstock.
| Swing | 18.5" | 469.9 mm |
| # Axis | 2 | 2 |
| Power | 12.5 hp | 9.3 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Control | CNC (Siemens) | CNC (Siemens) |
| Dimensions | 114.6″ × 48.8″ | 114.6″ × 48.8″ |
| Weight | 5,732 lb | 5,732 lb |
Swing over bed: 18.50″
Swing over cross slide: 7.87″
Distance between centers: 39.37″
Cross slide (X-axis) travel: 8.66″
Longitudinal (Z-axis) travel: 41.93″
Center height: 9.45″
Spindle nose: A2-6
Spindle bore (through hole): 2.56″
Maximum spindle speed: 3,000 rpm
Main motor power (S6, 40%): 12.5 hp
Rapid traverse (X and Z axes): 394″/min
Turret: 8-station electric turret, 1″ × 1″ tool capacity
Tailstock: Manual (standard), optional hydraulic quill
Tailstock quill stroke: 4.72″
Tailstock quill diameter: 2.36″
Tailstock taper: Morse Taper #4
Machine footprint (L × W): 114.6″ × 48.8″
Machine weight: 5,732 lb
Siemens Sinumerik 828D Control
(10) Od holders
(7) ID holders with a bore of 1″
Tailstock
