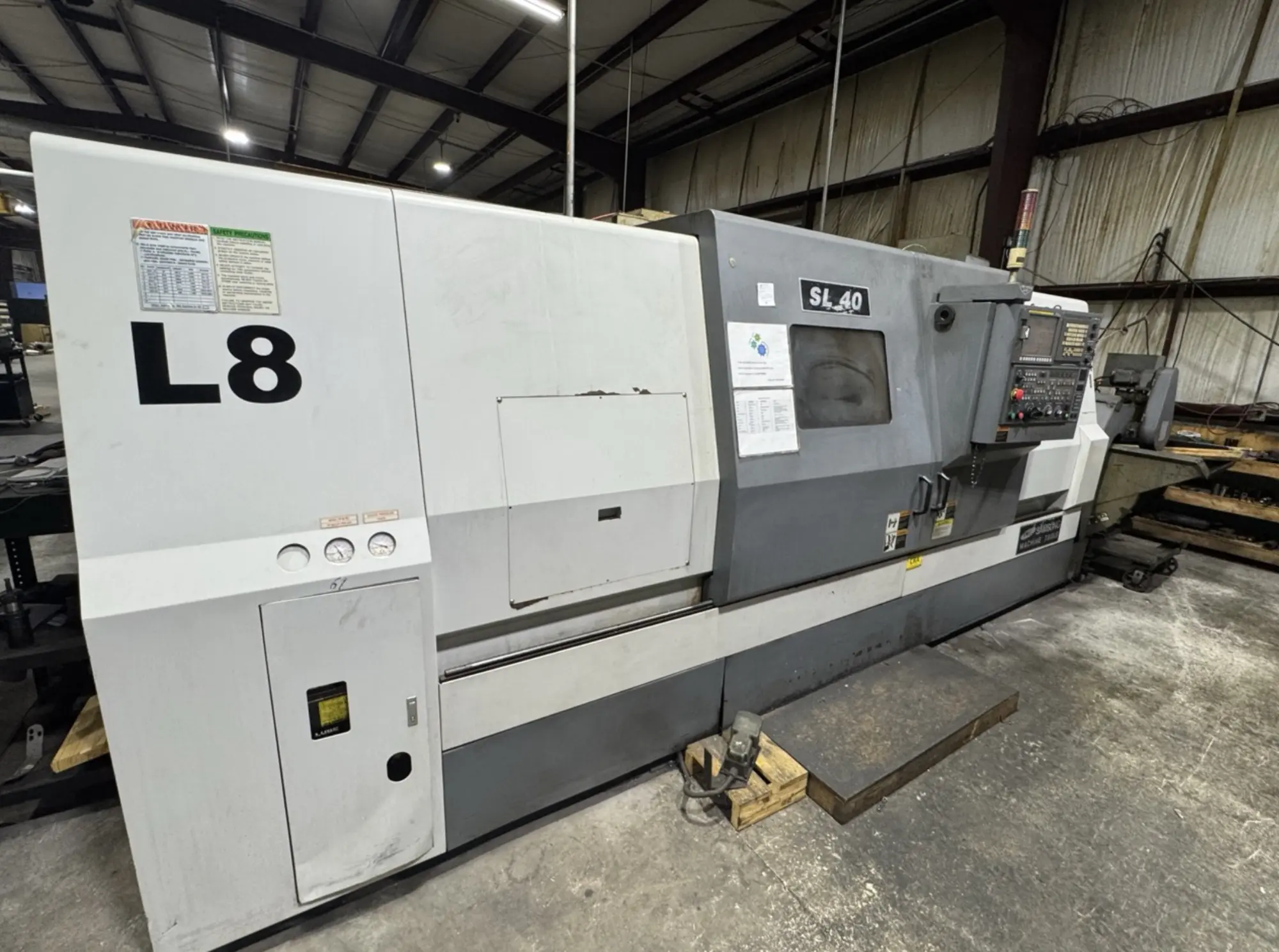

Used CNC Lathe available, used with 13,389 cutting hours. Features a 26.8" swing, 60.2" machining length, 30 HP, 18" chuck, and 10-station turret. Equipped with Fanuc Oi-TD, RIP Steady Rest, and Chip Conveyor.
| Swing | 26.8" | 680.72 mm |
| Machining Length | 60.2" | 1,529.1 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 4.6" | 116.84 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 19.7" | 500.38 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 197″x75″x75″ | 197″x75″x75″ |
| Weight | 20,500 lbs | 20,500 lbs |
Swing: 26.8″
Turning Diameter: 19.7″
Machining Length: 60.2″
X-Axis: 11″
Z-Axis: 63.19″
Spindle nose A2-11
Bar Capacity 4.6″
Spindle Bore Diameter 5.20″
Chuck Size: 18″
Power: 30 HP
Max rpm: 1,800 RPM
Turret: 10 Station
Tailstock travel(quill): 4.7″
Cutting Hours: 13,389
Floor Space: 197″x75″x75″
Approx. Weight: 20,500 lbs
Fanuc Oi-TD
RIP Steady Rest
Chip Conveyor
