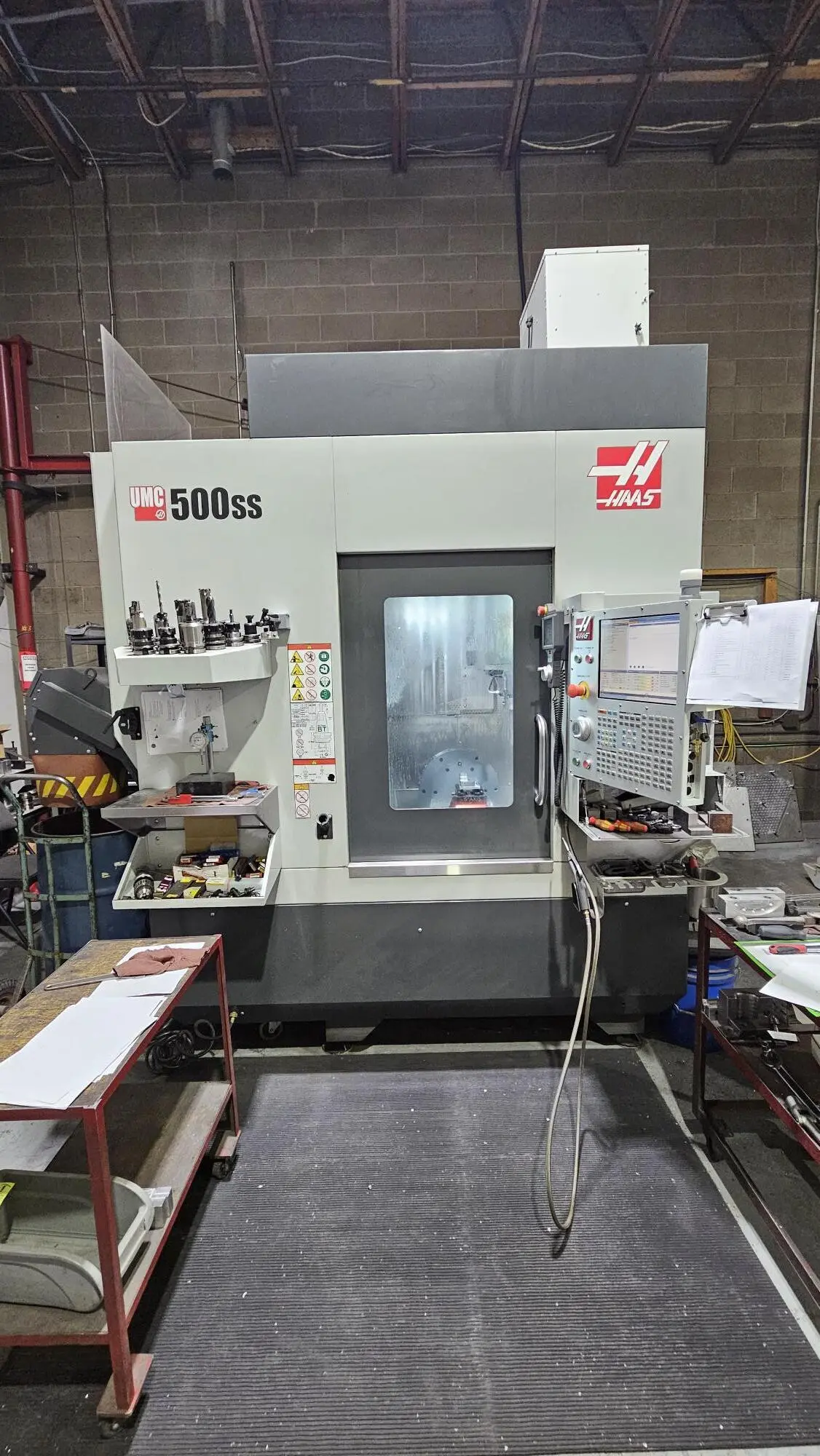

Haas UMC-500SS 5-Axis, 2021 model, offers 24"x16"x16" XYZ travel with 12,000 RPM and 30 hp. Equipped with Haas CNC, 300 PSI thru-spindle coolant, mist extractor, and chip conveyor, this used unit ensures high-performance machining.
| X | 24" | 609.6 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 50 | 50 |
| Taper | BT-40 | BT-40 |
| Dimensions | Floor Space 115" x 90" x 103" H | Floor Space 115" x 90" x 103" H |
| Weight | 12,000 Lbs | 12,000 Lbs |
B-Axis Tilt 120 Degrees to - 35 Degrees
C-Axis Rotation 360 Degrees
Platter Diameter 15.7"
Max Weight on Platter 500 Lbs
Haas CNC Control
300 PSI Thru Spindle Coolant
Programmable Coolant Nozzle
Chip Strainer
Mist Away Mist Extractor
Belt Type Chip Conveyor
