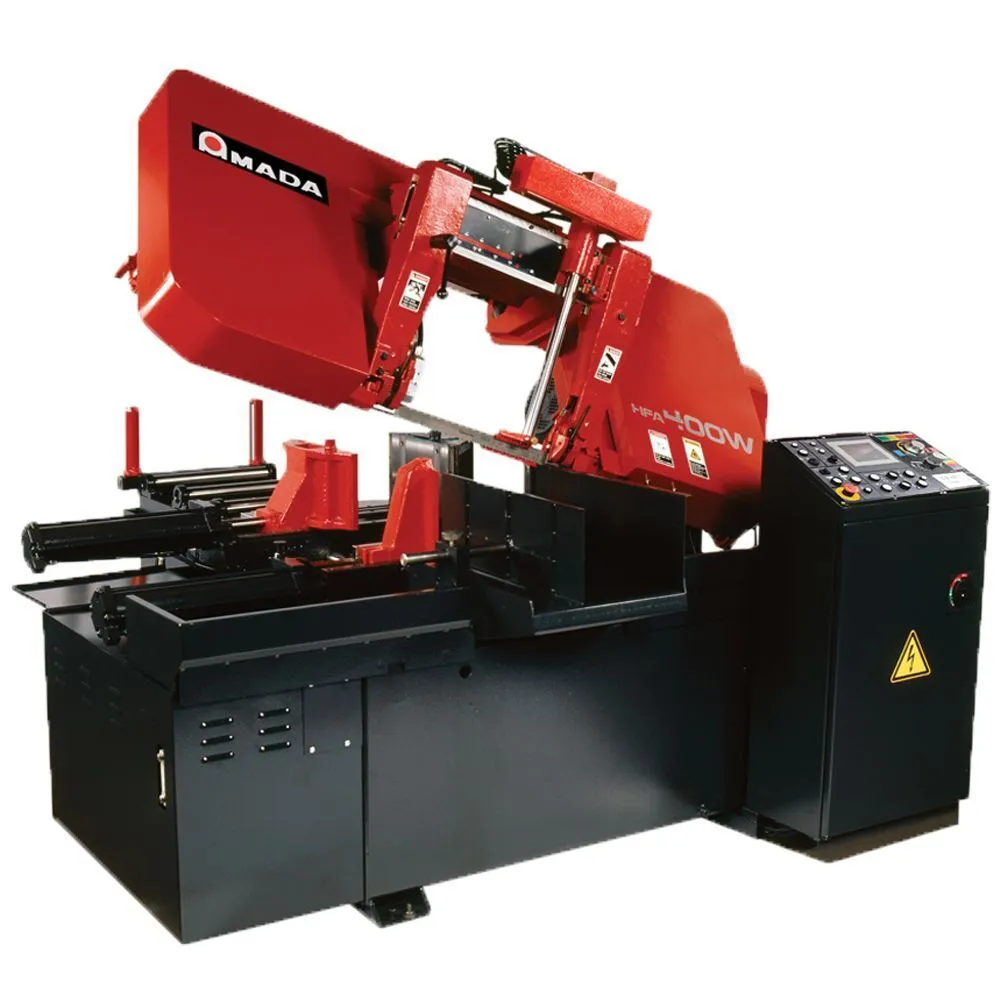

New Amada Horizontal, Programmable Bandsaw, 16" Capacity
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 15' | 4,572 mm |
| Dimensions | 89.5" x 106.2" x 95.5" | 89.5" x 106.2" x 95.5" |
| Weight | 4,850 Lbs. | 4,850 Lbs. |
Machine Specifications
Cutting Capacity Round (Diameter) 1.18"-16.54"
Rectangle (W x H) 16" x 16"
Workload Capacity 5,511 lbs.
Material Index Stroke 19.6"
Index Length 0.39" - 999.99"
Saw Blade Dimensions (L x T x W) 15' x 0.050" x 1-1/2"
Blade Speed 56-295 ft./min, 60 Hz, Stepless
Saw Blade Motor 7.5 HP
Hydraulic Pump Motor 2 HP
Cutting Fluid Pump Motor 1/4 HP
Voltage Required AC220V±10%, 3 PH, 60 Hz
Or AC440V, 3 PH, 60 Hz
Machine Dimensions, Head Up Position 89.5" x 106.2" x 95.5" (W x L x H)
Head Down Position 89.5" x 106.2" x 62.0" (W x L x H)
Table Height 31.5"
Machine Weight 4,850 lbs.
Machine Standard Features
NC Back Gauge Blade Deviation Monitor
Variable Blade Speed Drive Motion Detector
Self-Diagnostics Wheel Cover Limit Switch
Pressure Flow Valve Chip Conveyor
Full Stroke Vises Auto Trim Cut
