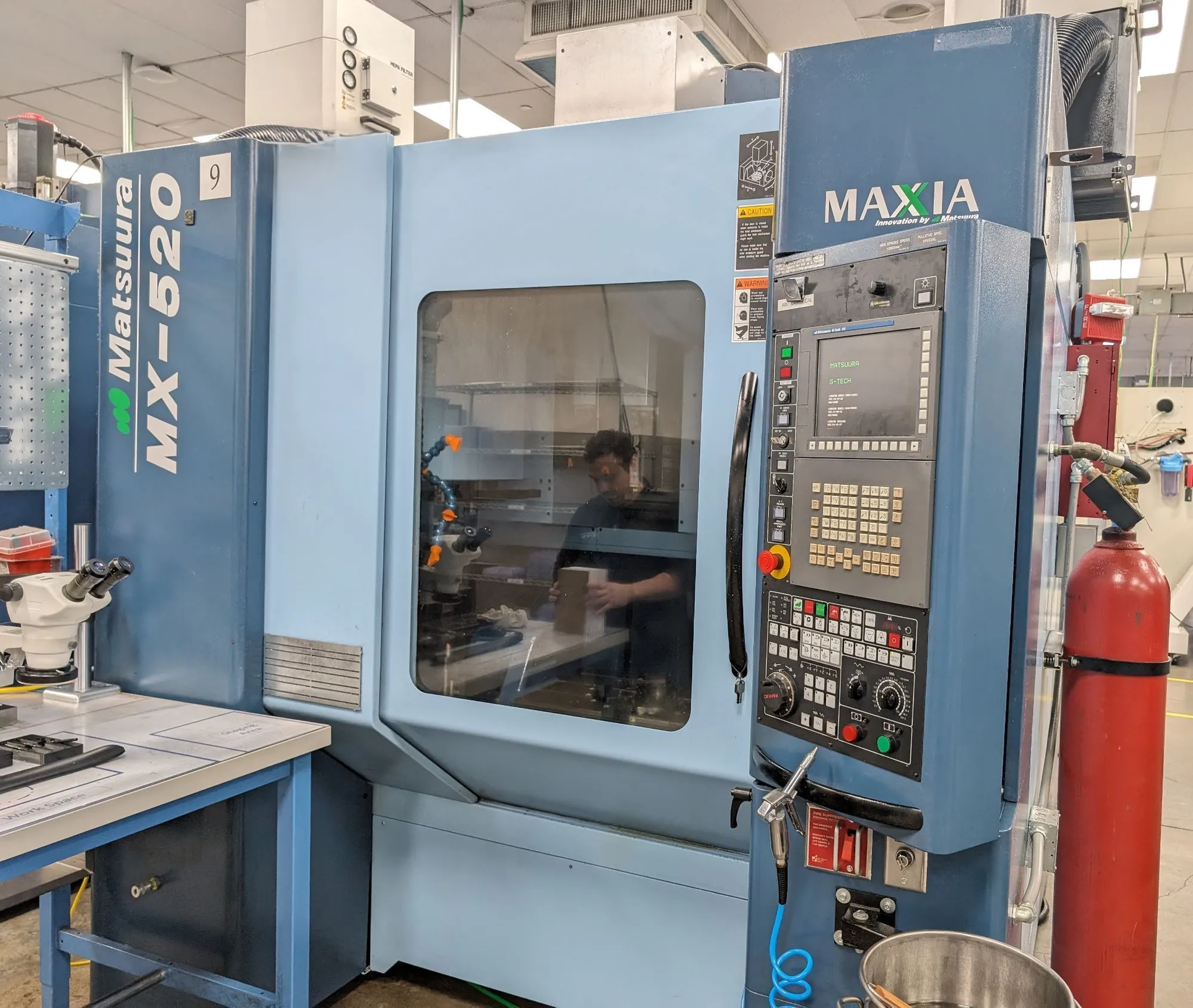

MATSUURA MX-520 5-Axis Vertical Machining Center (used) New 2013 - Matsuura G-Tech, Fanuc 31i Control, ATC: 60 Station, Scale Feedback A/C Axis, Coolant Through Spindle, Spiral & Lift-Up Chip Conveyor, Air Blow for Chip Removal, Probe System - RAN OIL!
| X | 24.8" | 629.92 mm |
| Y | 22" | 558.8 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 15 hp | 11.2 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT40 | CAT40 |
| Control | CNC (Matsuura G-Tech / Fanuc 31i) | CNC (Matsuura G-Tech / Fanuc 31i) |
SPINDLE
Speed: 20,000RPM
Taper: CAT40
Power 15HP

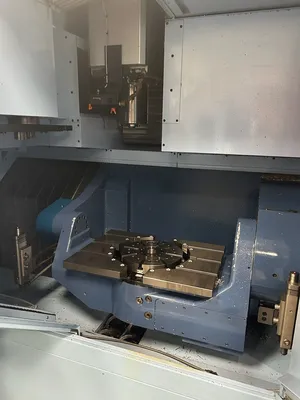

TABLE
15HP
Working Surface: 19.68” DIAMETER
Load Capacity: 440 Lbs.
Max Work Size: 20.5” x H13.77”
Travels: X-24.8”, Y-22”, Z-20”
A-Axis: -125°~+10°
C-Axis: 360°
Feedrate: (X/Y/Z) = 1575 IPM
Feedrate: A = 17 RPM, C = 33 RPM
Dimensions: (WxDxH) 136.2” x 235.5” x 116.14”
Weight 19,500 Lbs.

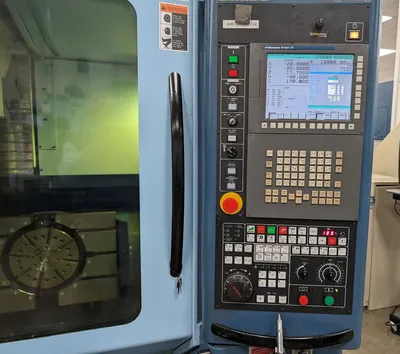

Matsuura G-Tech, Fanuc 31i Control
ATC: 60 Station
Scale Feedback A/C Axis
Coolant Through Spindle

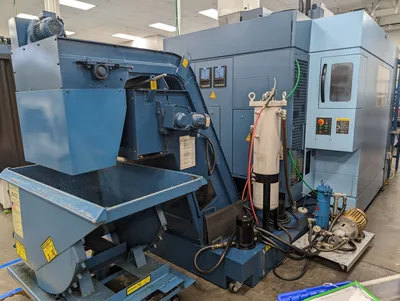

Spiral & Lift-Up Chip Conveyor
Air Blow for Chip Removal
Probe System
