| Swing | 17" | 431.8 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Bridgeport EZ Path CNC Control) | CNC (Bridgeport EZ Path CNC Control) |
| Dimensions | 98″ x 51″ x 60″ High Approx. | 98″ x 51″ x 60″ High Approx. |
| Weight | 4000 lbs. Approx. | 4000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

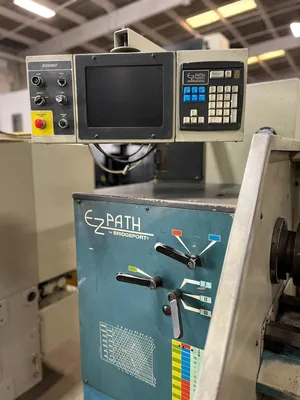

Bridgeport EZ Path CNC Control
Dual Electronic Handwheel
Inch/Metric Threading
Coolant system with Chip Pan
Capacity:
Max Height of Centers: 8.46″
Max Swing Over Bed : 17.0″
Max Swing Over Cross Slide: 8.0″
Max Swing Over Carriage Wings : 15.75″
Bed Width x Height: 12″ x 13″
Distance Between Centers : 40.0″
Travels:
X Axis Travel (Cross Slide): 8.66″
Z1 Axis Travel (Longitudinal) : 40.0″
Feedrate:
Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.09″
Spindle Speed: 50 – 4000 RPM
Spindle Motor: 10 HP

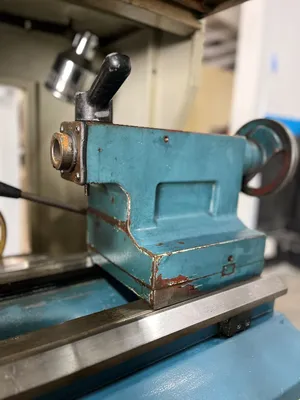

Tailstock:
Tailstock Type: Manual
Taper: MT-4
Maximum Quill Travel: 4.7″
Quill Diameter: 2.36″
General:
Power Requirement: 460v / 3 phase / 60 Hz
Overall Dimensions: 98″ x 51″ x 60″ High Approx.
Machine Weight: 4000 lbs. Approx.

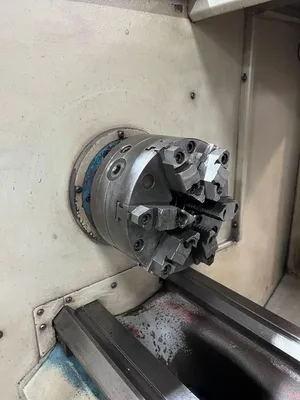

10″ 6-Jaw Chuck
Geared Headstock
Manual Tailstock

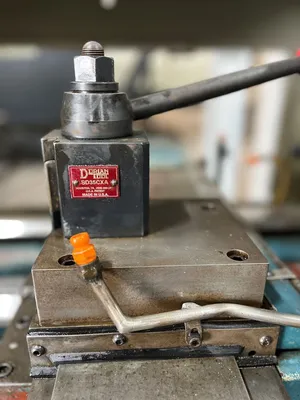

Tool Post
