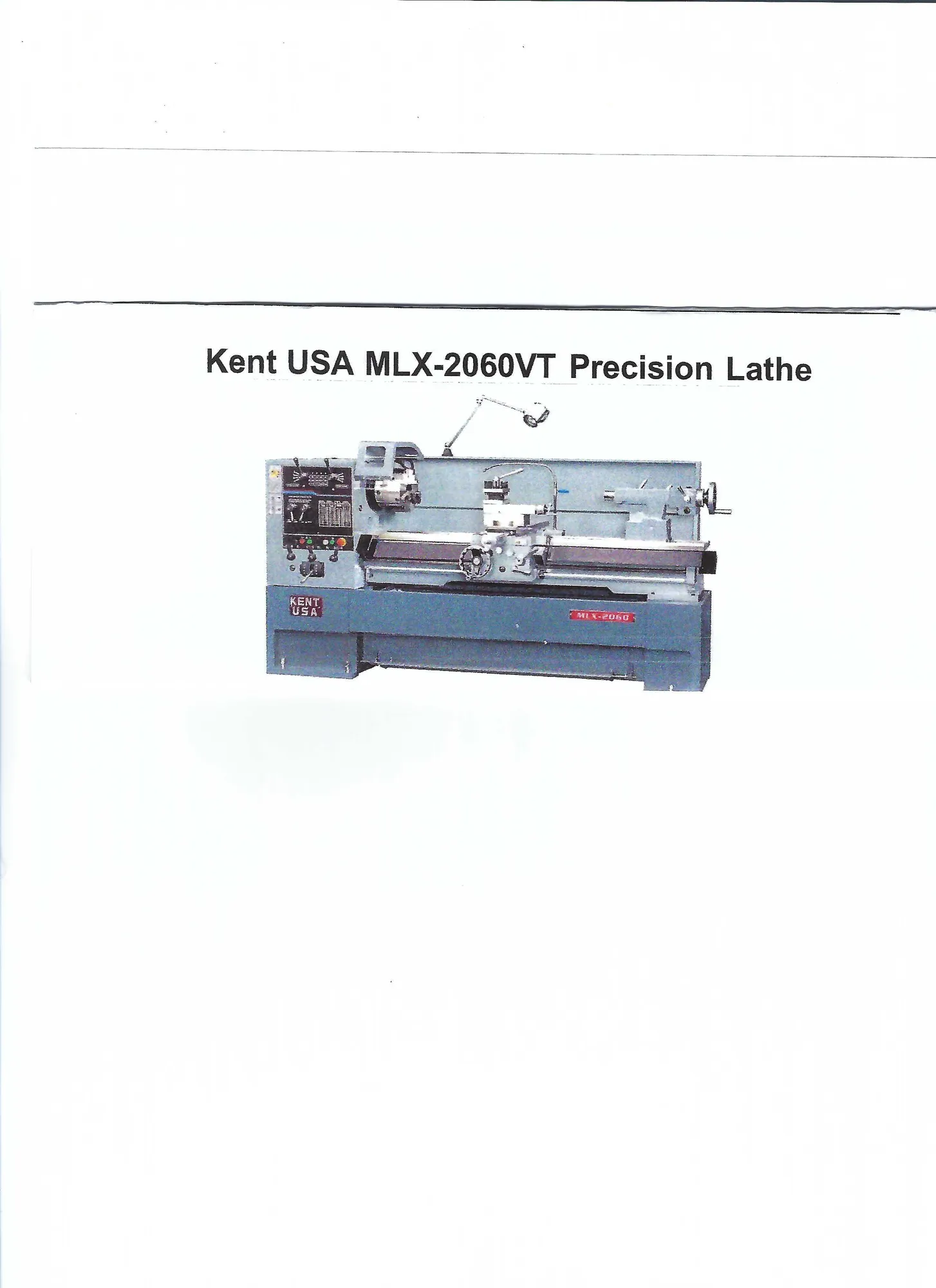

NEW KENT USA MLX-2060VT
Overview
New MLX 2060VT Precision Lathe ( Variable Speed) 10HP- 3.125" spindle hole, inch /metric dials
Fiull length Splash Guard, Main Lead screw Cover
Specs
Swing Over Bedways: 20"
Swing over Cross slide: 14
Swing over Gap: 27.5"
Gap Length: 8" / w face plate
Spindle hoe: 3.125"
Spindle Nose:D1-8
Spindle Speed; 25-100/75-375/ 360-1500 RPM/ 3 Ranges
Spindle Sleeve taper: MT#5
Bearing Length on ways: 17.3"
Cross Slide width:7.25
Cross Slide Trave;" 10.6"
Top Slide: Compound travel: 4.75"
inch threading: 45,2-72 TPI
Metric: 39, 0.2 - 14mm
Module: 18, 0.03 - 3.5m
Diametral pitch : 21, 8-44DP
long. Feeds: 0.0015- 0.04 IPR
Cross Feeds: 0.00075 - 0.02 IPR
Quill Dia: 2.3"
Quill travel: 5"
Quill Taper: MT#4
AVAILABLE OPTIONS & ACCESSORIES Listed Below - Request Pricing
Acu-rite DRO 203 Package,2 Axis- Installed
Aloris Type CA#4 Set/Toolpost w/6 Holder
5c Lever Style Collet Cloaser
5c Front Mount Hand wheel style Collet Closer(D1-8)
Taper turning attachment
Royal Live Center
12" 4- Jaw Chuck Independent- D1-
Upgrade to Bison 10" self centering adj. 3 Jaw Chuck w/ Back Plate 3"Plus " Hole
Micrometer carriage Stop
Equipped With
Standard Accessories:
10" 3- Jaw Chuck, Chuck Cover with Interlock, Steady Rest & Follow Rest, Main screw cover,
4-poostion Tool Post, Coolant system, Full Length Splash Guard, Led Work Light, thread Chasing Dia, Bed Mount Carriage Stop, Electric Cabinet Interlock Switch
