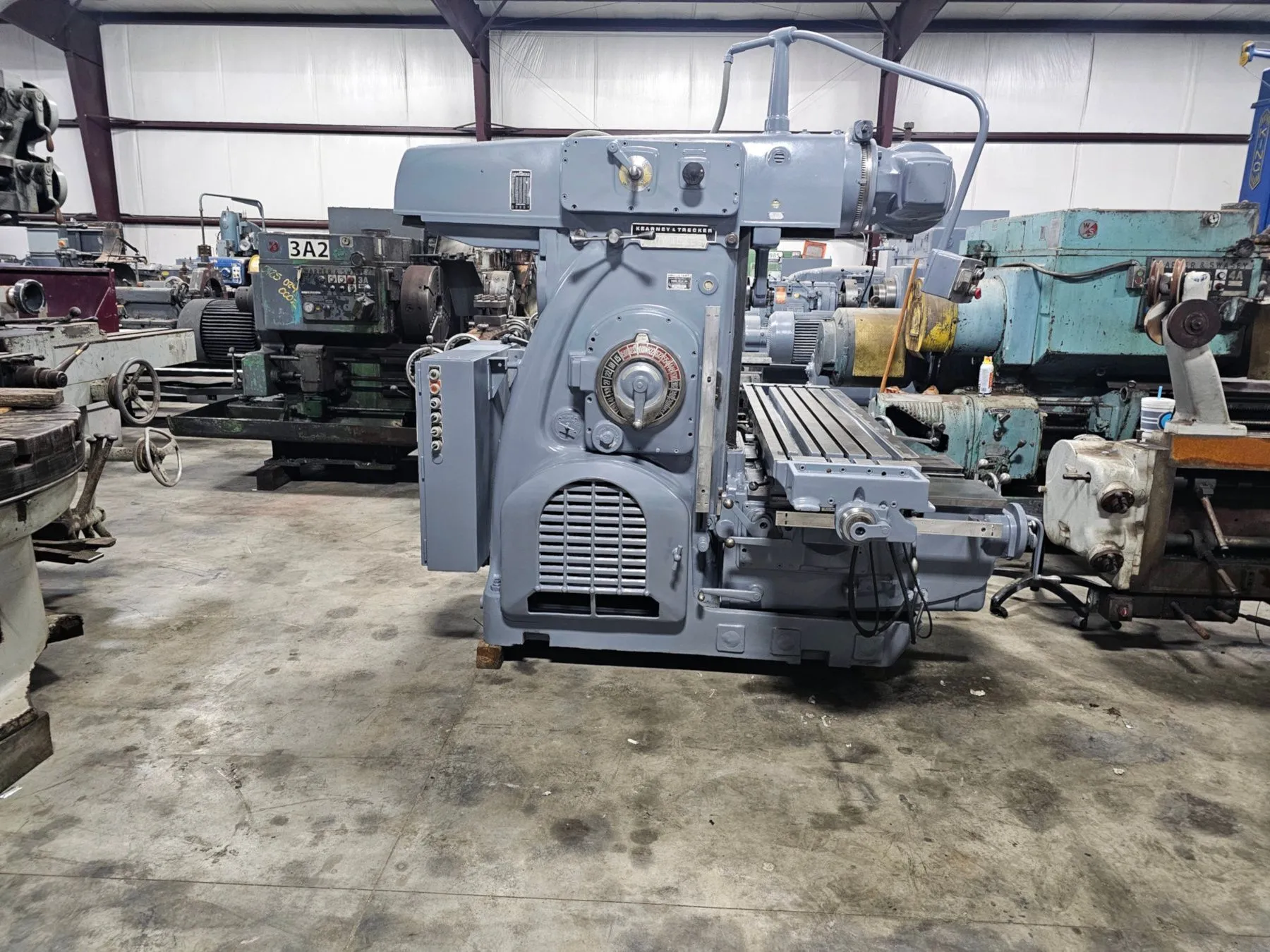

17" X 72" Used K & T Horizontal Milling Machine With Independent Vertical Head
| Table Size-W | 17" | 431.8 mm |
| Table Size-L | 72" | 1,828.8 mm |
| Power | 20 hp | 14.9 kW |
| Dimensions | R-L 90" X F-B 85" X Height 85" | R-L 90" X F-B 85" X Height 85" |
| Weight | 12,600 Lbs. | 12,600 Lbs. |
Table Size........................................17" X 72"
Table Travel......................................32"
Table Cross Travel................................17"
Spindle Taper.....................................50"
Knee Travel Up & Down.............................18"
Distance Vertical Spindle To Table Min / Max......1" To 14"
Spindle Speeds Horizontal.........................15 To 1,500 Rpm's
Spindle Speeds Vertical...........................100 To 1,600 Rpm's
Saddle And Table Feeds............................3/8 To 90 I.P.M.
Rapids Long. & Cross..............................150 I.P.M.
Rapids Knee.......................................37-1/2 I.P.M.
Independent Vertical Spindle Motor................5 Hp.
Main Motor........................................20 Hp.
Approximate Dimensions............................85" Front To Back
Approximate Dimensions............................90" Left To Right
Approximate Dimensions............................85" High
Weight............................................12,600 Lbs.
Swiveling Vertical Head...........................Yes
Coolant...........................................Yes
Pendent...........................................Yes
Machine will be cleaned, painted and cycled.Oil will be changed and new belts.
Slight glasses replaced as needed.
