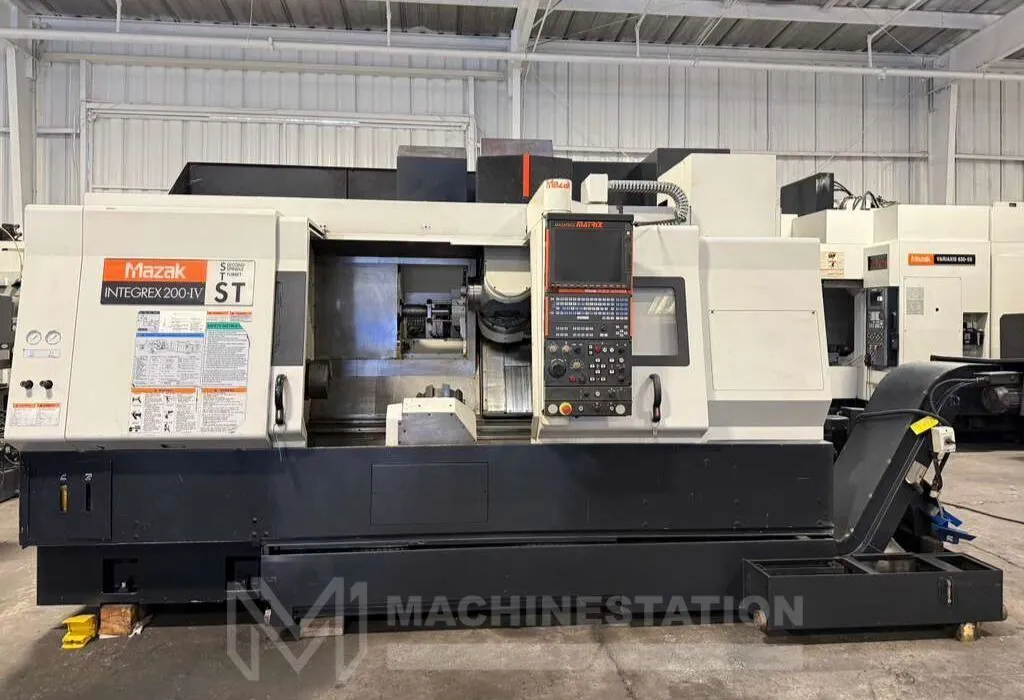

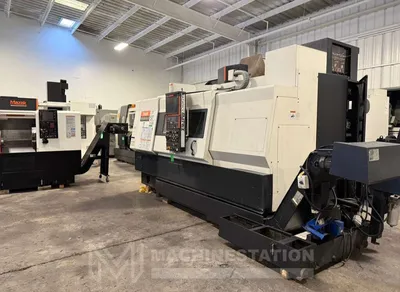

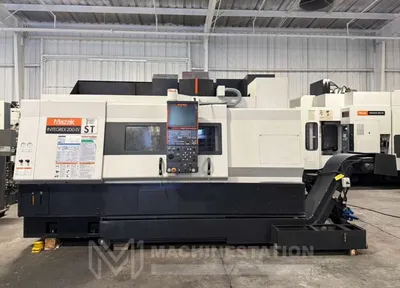

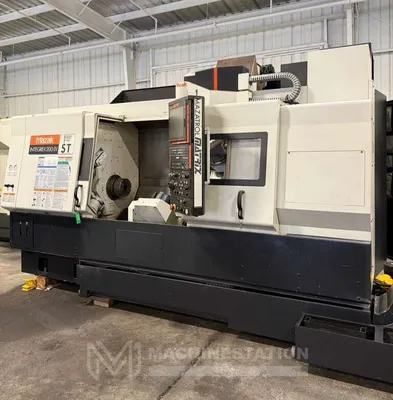

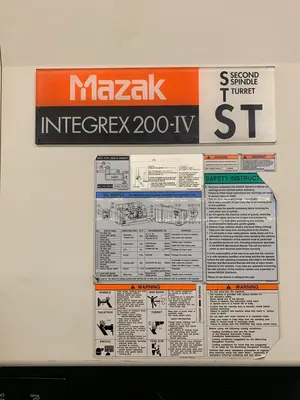

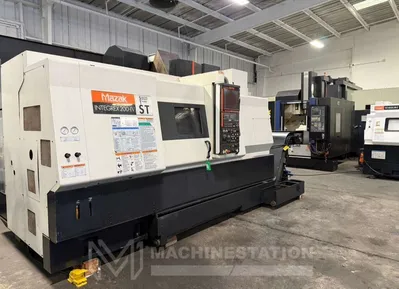

USED 2006 MAZAK 200-IV ST

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:

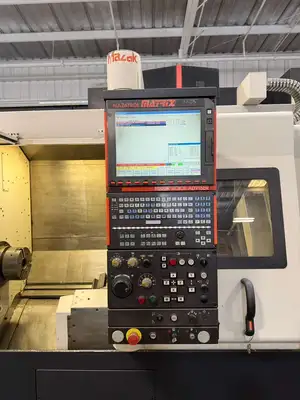

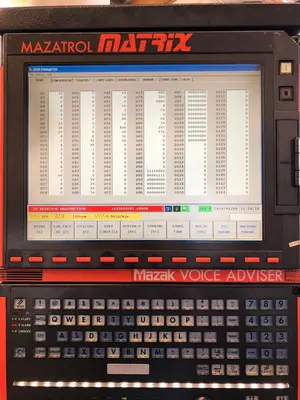

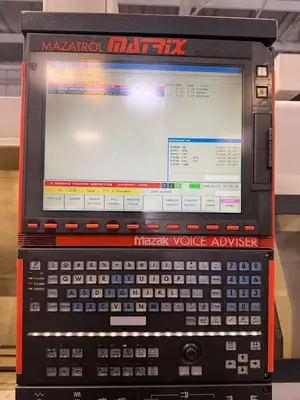

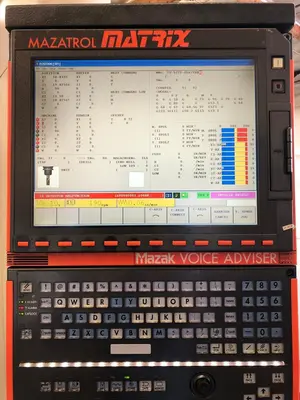

Mazatrol Matrix CNC Control
Linear Ways Construction
EIA/ISO Programming
3DCoordinate Conversion
Rigid Tapping
PCMCIA Card Slot

Capacity:
Max Turning Diameter: 26.0″
Max Turning Length: 40.0″
Max Bar Capacity: 2.55″
Max Swing Over Bed: 26.0″
Max Swing with Y-Axis: 19.70″
Max Weight on Main & Sub Spindle: 660 lbs

Travel:
X Axis Travel: 22.83″
Y Axis Travel: 6.30″
Z Axis Travel: 41.14″
W Axis Travel: 41.34″ (Sub Spindle)
B Axis Travel: 225 Degree
C Axis: 360° (0.001°) Both Spindle
X Rapid Traverse Rate: 1496 Inch Per Minute
Y Rapid Traverse Rate: 1093 Inch Per Minute
Z Rapid Traverse Rate: 1496 Inch Per Minute

Spindle:
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-8
Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Speed: 35 – 5000 RPM
Sub Spindle Speed:35 – 5000 RPM
Main Spindle Motor: 30 HP
Sub Spindle Motor: 25 HP

Milling Head:
Single Station Pendulum Head with 40 ATC
Tool Type: HSK-63 Taper

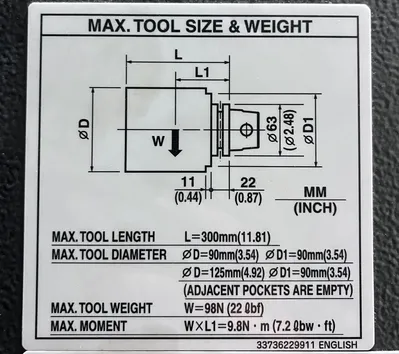

Max Tool Diameter: 3.54"
Max Tool Length: 11.81"
Spindle Speed: 15-12,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

Lower Turret:
Capacity: 9 Stations
Turret Index Time: 0.14 Second
OD Tool Size: 1.00″

General:

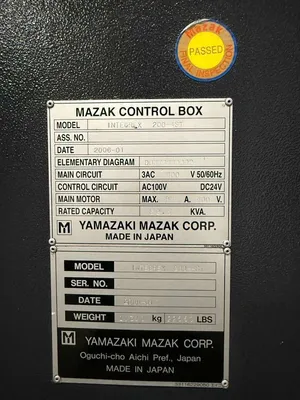

Power Source: AC 400V, Three Phase, 50/60 Hz
Power Requirement: 82.6 Kva
Overall Dimensions: 160″ x 93.0″ x 110.2″ High
Weight: 22,660 lbs Approx.

12,000 RPM Pendulum Milling Head

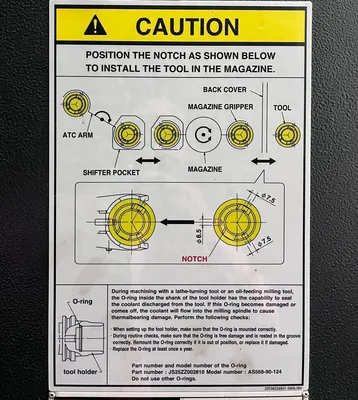

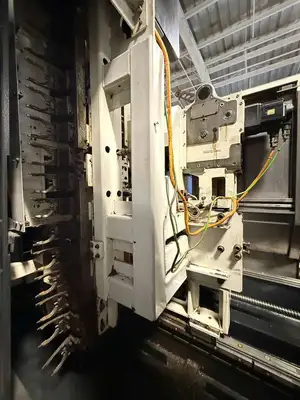

40 Station Tool Magazine
9 Station Lower Turret
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Y Axis Capability

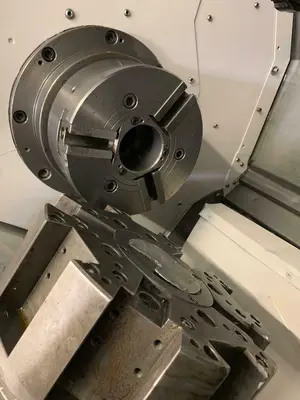

8″ Chuck on Main Spindle
8″ Chuck on Sub Spindle
High Pressure Coolant System
Foot Operated Control for Chuck
Chiller Unit

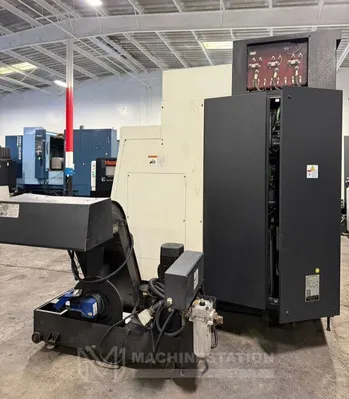

Chip Conveyor
