USED AGATHON 175-A

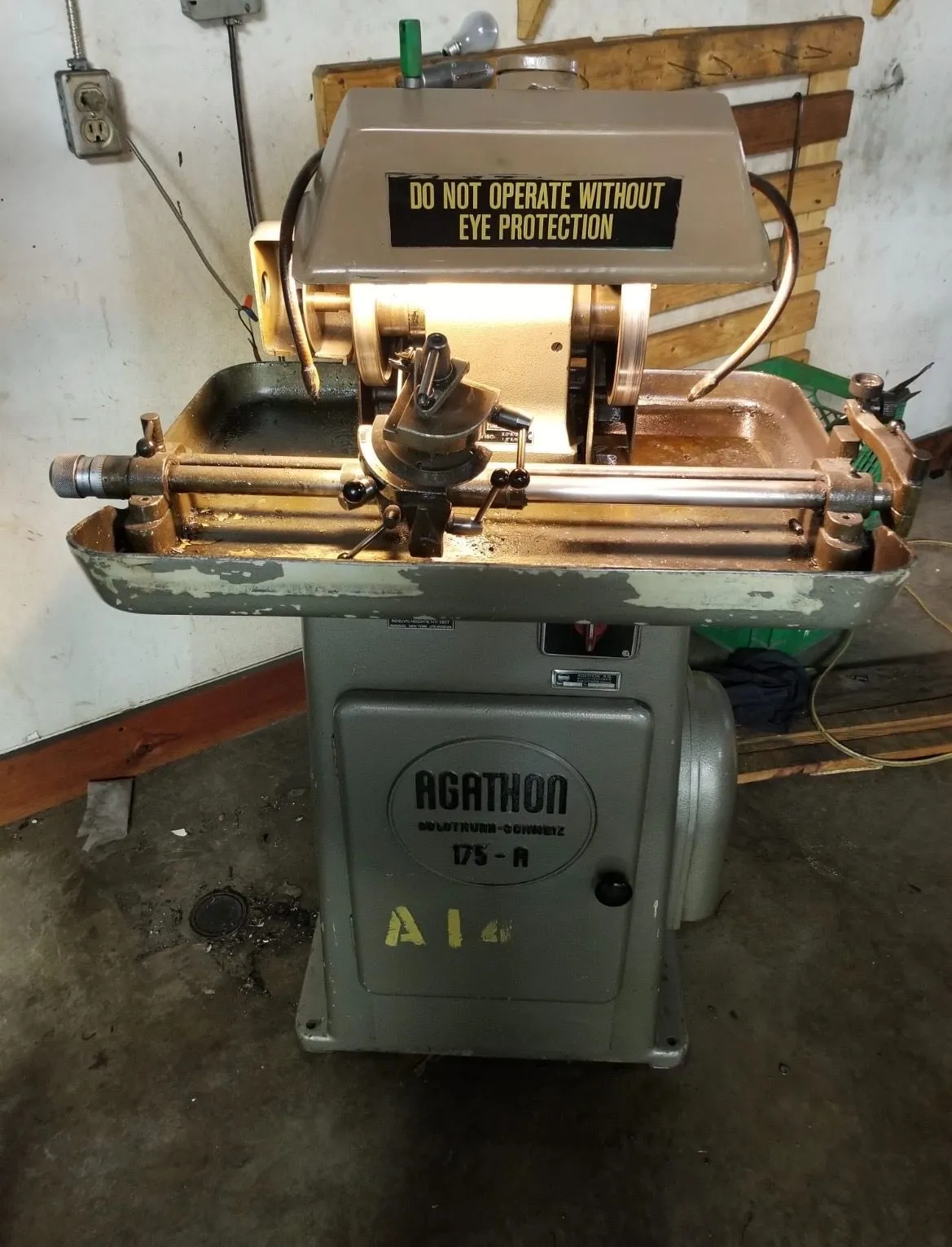

One (1) Used AGATHON 175-A Precision Tool Grinding Machine. Machine is made in Switzerland.

Specifications:
Grinding Wheel Diameter......... 7" - 175 mm
Bore........................................ .79" - 20 mm
Spindle Head Belt Pulley Diameter.... 2.35" - 60 mm
Spindle Speed................. 2500 RPM
Shank Size of Tools To Be Ground Up To... 1.58"/1.58" - 40/40 mm
Space Required By Machine....... 33.5/24.4" - 850/620 mm
Spindle Height...................... 47.5" - 1215 mm
Power Required: Main Motor/Electro Suction Pump.. 0,55/0.1 kW
Machine Weight (Approximate)........ 700 lbs.
Specifications Subject to Buyer Confirmation
Machine Equipped With:
Clamp Type Tool Holder
Off Hand Radius Grinding of a Tool on Grinding Table

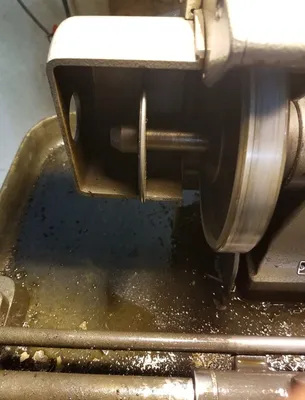

Left Hand Extension Arbor with Wheel
Coolant Tank
Light
Grinding wheels are used and have to be checked before use.

One Used AGATHON 175A Tool & Cutter Grinder in Good Condition.
Specifications:
Technical data
Grinding wheels:
Diameter 175 mm
Width 25 mm
Bore 20 mm
Spindle speeds:
number (steps)
up to 2500 rpm
Cutting speed 23 m/s
Tool orthogonal clearance
max. 26 °
Voltage 50 Hz 3x 380 Volt
Power 2.3 HP
Machine's weight about 300 kg
Overall dimensions machine:
Length 1000 mm
Width 800 mm
Height 1400 mm
Various accessories:
Inclinable tool holder
Lamp
Specifications Subject to Buyer Confirmation
