USED 2001 MORI SEIKI ZT-2500Y
Overview
Description
2001 Mori Seiki ZT-2500Y Multi-Axis CNC Lathe, Twin Spindle, Twin Turret, Live Tooling, Y-Axis, Tool Presetter, Chip Conveyor, Additional Tool Holders
Specifications
| Max Swing | 26" | 660.4 mm |
|---|---|---|
| Turning Dia | 14.9" | 378.46 mm |
| Machining Length | 13.7" | 347.98 mm |
| Distance Between Spindle Faces | 51.2" | 1,300.5 mm |
| # Axis | 8 | 8 |
| Bar Capacity | 2.87" | 72.898 mm |
| Through Spindle Hole | 3.5" | 88.9 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM (Main) | 4,000 RPM | 4,000 RPM |
| Max RPM (Sub) | 4,000 RPM | 4,000 RPM |
| Max RPM (Live Tooling) | 4,000 RPM | 4,000 RPM |
| X1/X2/X3-Axis Travel | 11" / 7.9" | 11" / 7.9" |
| Y-Axis Travel | ±2.9" | ±2.9" |
| C-Axis Rotation | 0.001° | 0.001° |
| Z1/Z2/Z3-Axis Travel | 37.8" / 38.8" | 37.8" / 38.8" |
| Spindle Nose (Main) | A2-8 | A2-8 |
| Spindle Nose (Sub) | A2-8 | A2-8 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Rapid Traverse (X/Z) | 945 in/min. | 945 in/min. |
| Rapid Traverse (Y) | 472 in/min. | 12 m/min. |
| Turret Capacity | 12 X 2 | 12 X 2 |
| Control | CNC (Mitsubishi MSC-501) | CNC (Mitsubishi MSC-501) |
| Dimensions | 165.47" X 108.89" X 103.07" | 165.47" X 108.89" X 103.07" |
| Weight | 29,000 lb | 29,000 lb |
Equipped With
Twin spindles
Twin turrets
Live tooling (12 stations, both turrets)
Y-axis
C-axis
Tool presetter
Chip conveyor
(2) electric foot pedals

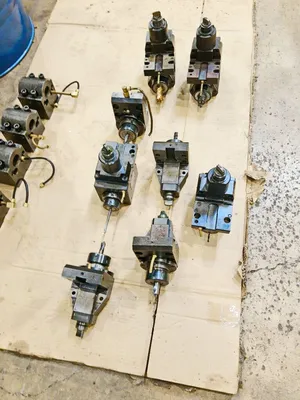

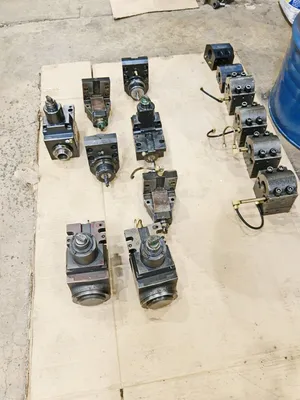

Additional tool holders (live/static)
