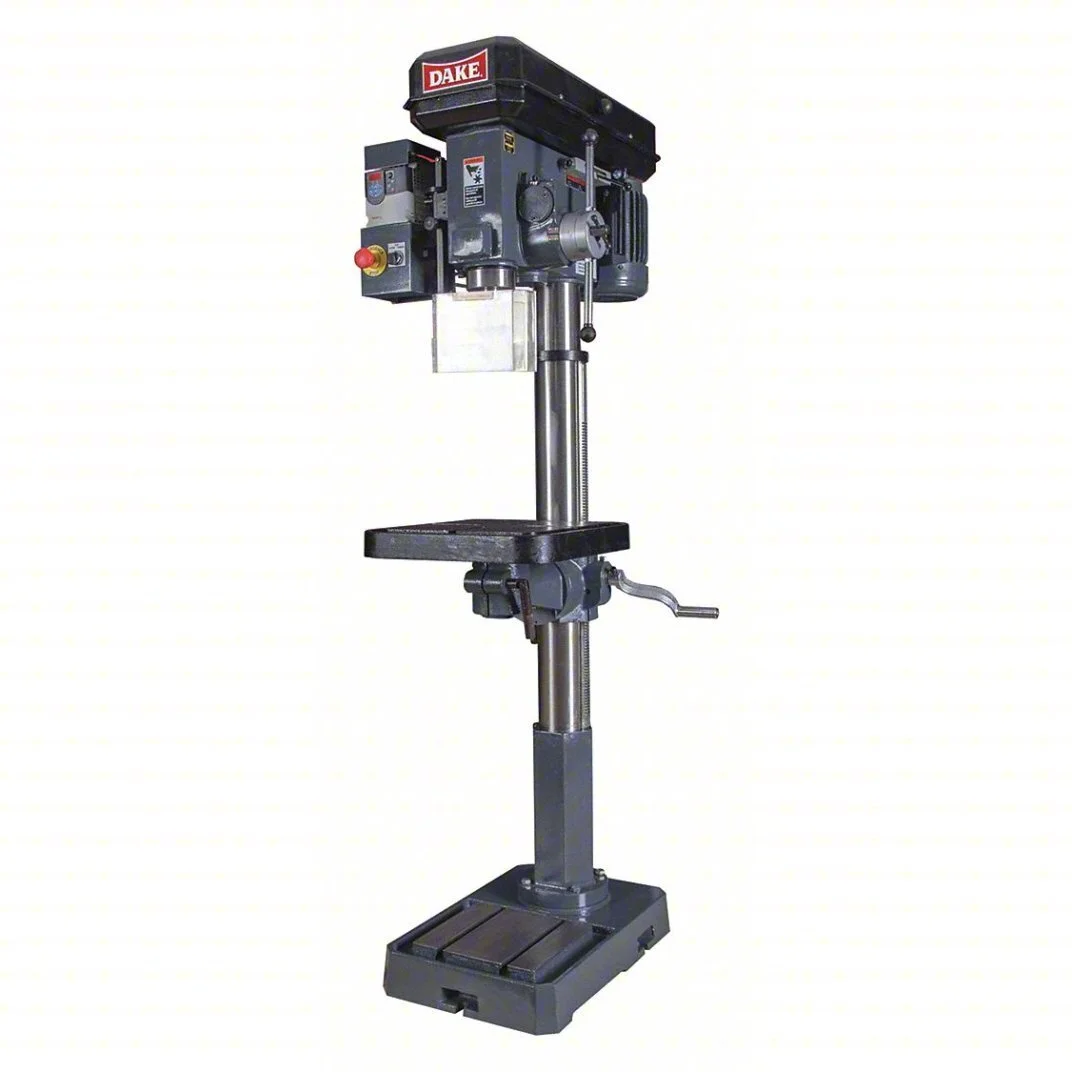

NEW DAKE SB-250V

Brand - DAKE
Model - 250V
Type - Drill Press
Drive Type - Belt

Drilling Capacity in Steel - 1”
Swing - 18 "
Spindle-to-Column Distance - 9"
Horsepower - 1-1/2 hp
Speed Control - Variable
Motor Voltage - 120V AC / 1PH
Spindle Speed - 68 to 1,380 RPM
Spindle Taper - 3MT
Table Size - 15-3/4” x 15-3/4”

Drilling Capacity in Steel - 1"
Spindle Travel - 5 "
Drill Press Application - Drilling; Tapping
Power Down Feed Included - Yes
Number of Spindle Speeds - Variable

Base Height - 23-5/8"
Base Width - 15"
Chuck Capacity - 5/8"
Chuck Size - 5/8"
Chuck Style - Keyed
Column Diameter - 3-5/8”

Maximum Overall Height - 71"
Maximum Spindle-to-Base Height - 49-1/4"
Maximum Spindle-to-Table Height - 28-3/8"
Weight - 483 lb
