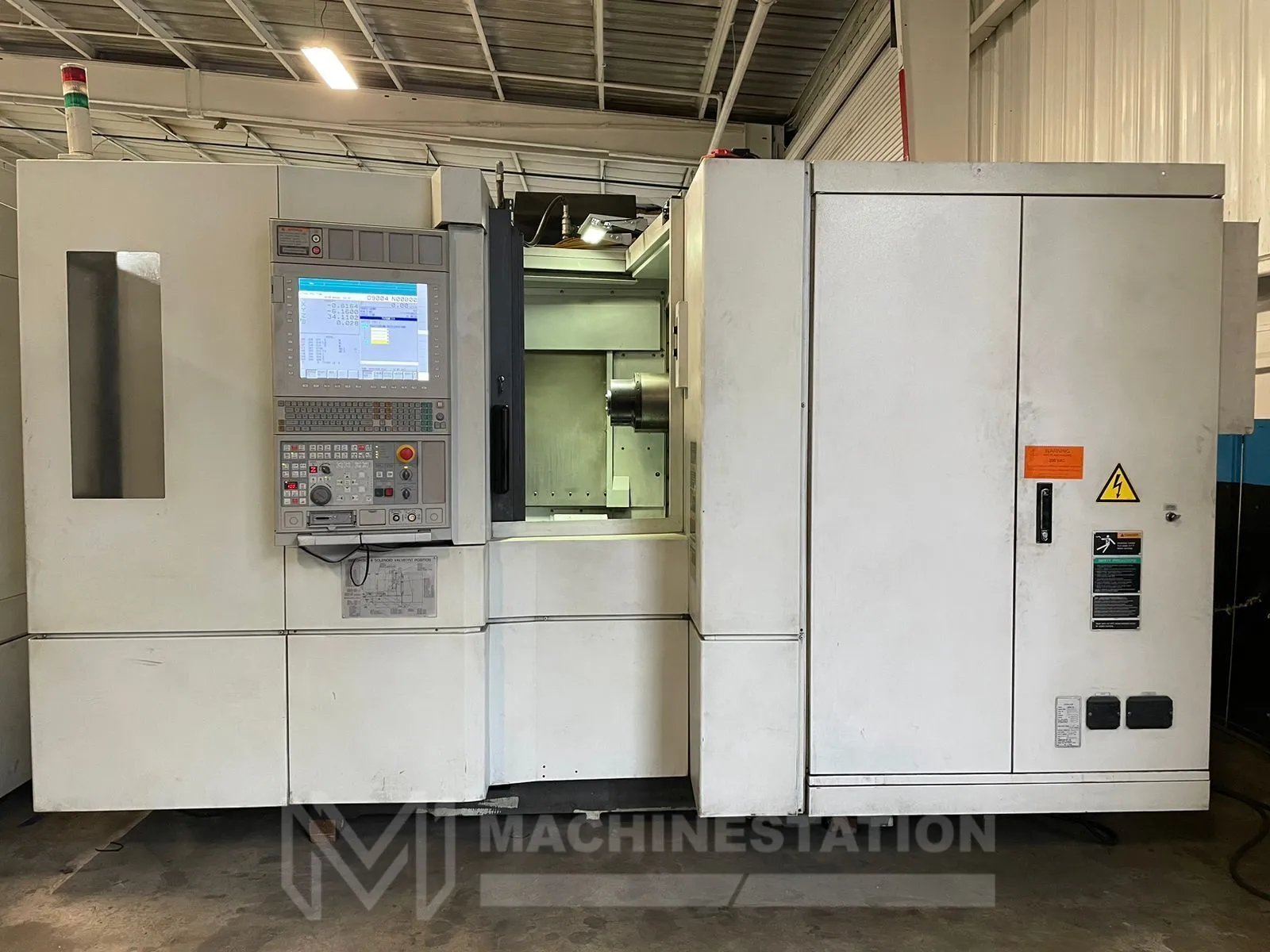

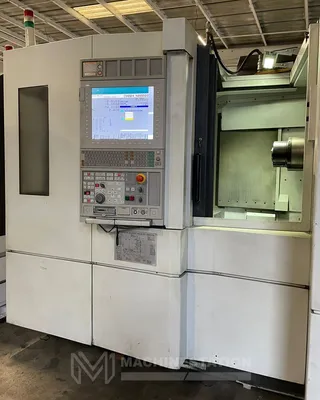

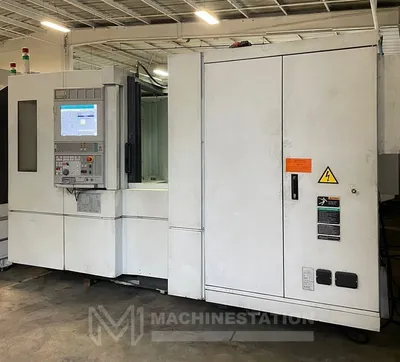

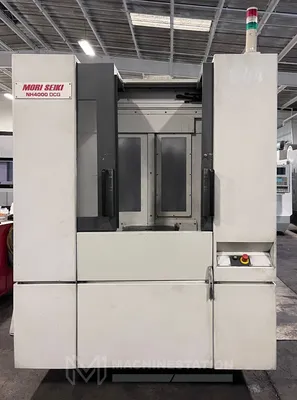

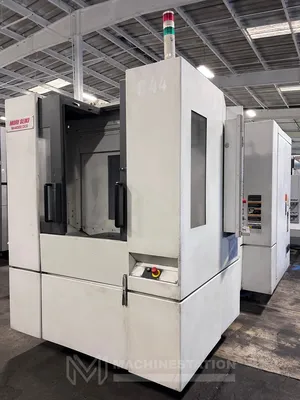

USED 2011 MORI SEIKI NH4000 DCG

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

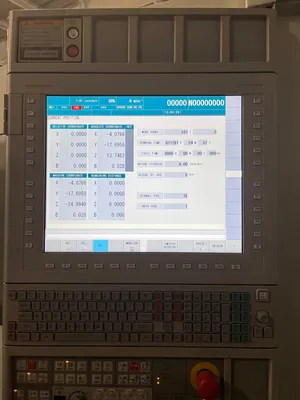

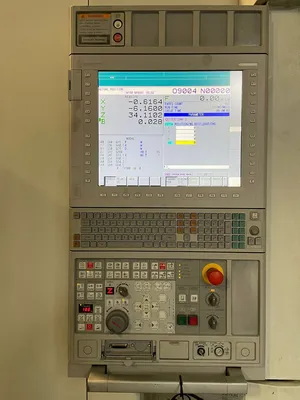

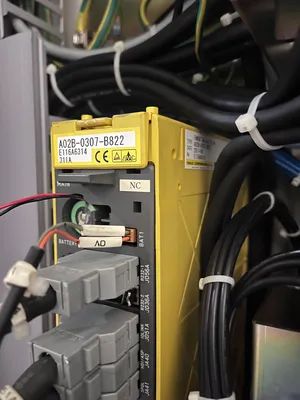

Fanuc 31i-A CNC Control
7,313 Hours Cutting Time
Twin Pallet Changer
25 HP Build in Spindle Motor
(2) USB Ports & RS-232 Port
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Coolant System

Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 24.8″
B Axis: 1° Indexing
Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″

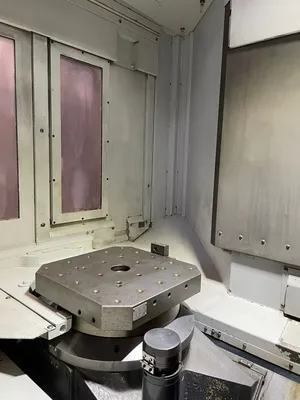

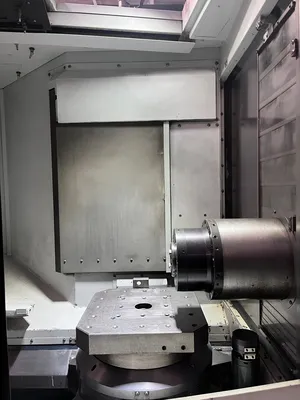

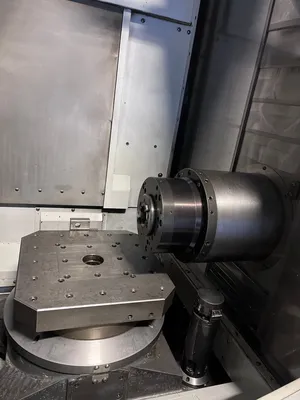

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8″
Max Workpiece Height: 35.4″
Index Time: 8 seconds 90°

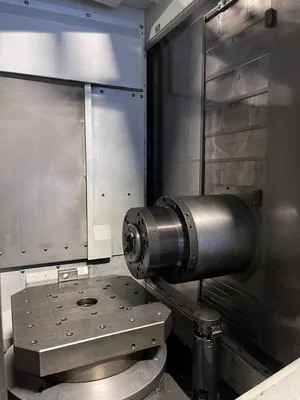

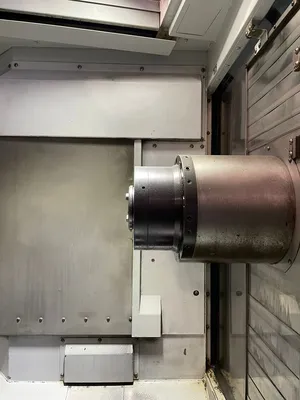

Spindle:
Taper Size: CAT-40
Max. Speed: 14,000 RPM
Spindle Motor Power: 25 HP

Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute

Tool changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter (without adjacent tools): 5.11″
Max Tool Diameter (with adjacent tools): 2.70″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm

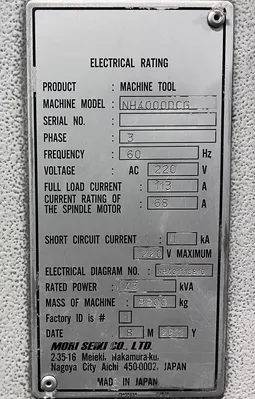

Power: 43 kva / 220v / 3-Phase
Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High
Weight: 21,605 lbs. Approx.

14,000 RPM High Precision Spindle

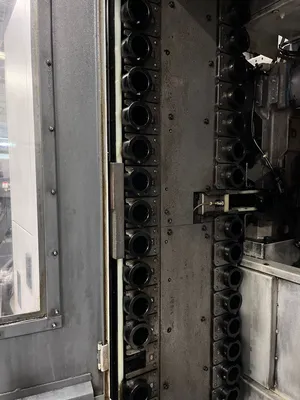

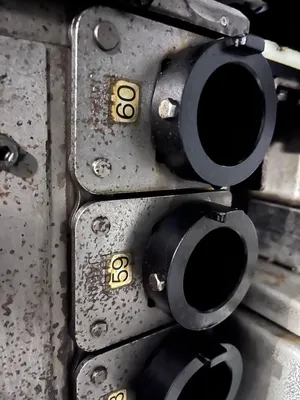

60 Station Automatic Tool Changer
Through Spindle Coolant Ready (Pump Needed)
Oil Chiller Unit
Fast Rapid Traverse Rate
Chip Conveyor
Levelling Pads
