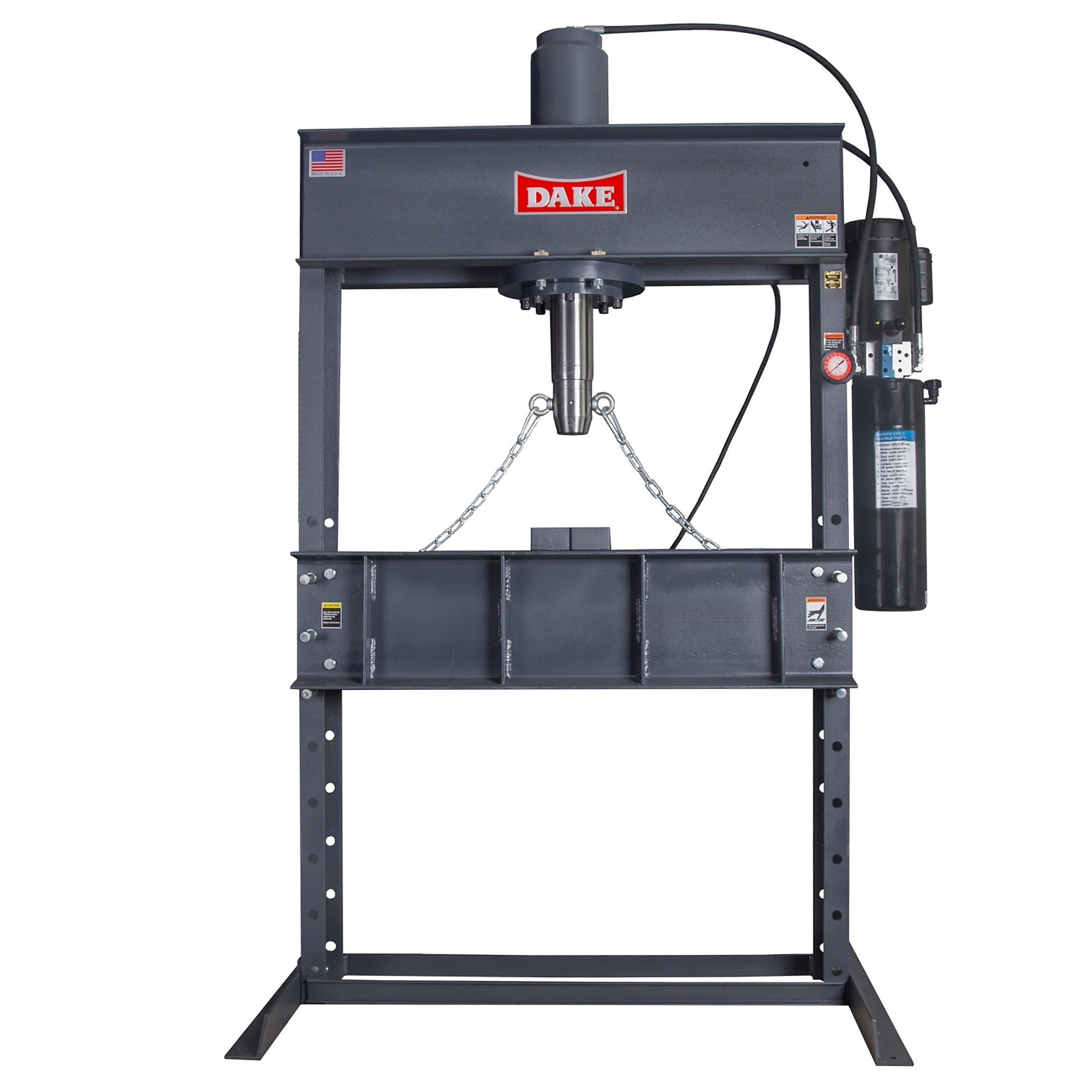

Dake, 50-ton Electrically Operated H-frame, 110v-1ph, Press Type Hydraulic, Max. Pressure 50 Tons, Model# Force 50DA
| Tonnage | 50 T | 45.359 t |
| Dimensions | 66.0 x 101.0 x 50.0 in | 66.0 x 101.0 x 50.0 in |
| Weight | 1350 (LBS) | 1350 (LBS) |
Brand - Dake
Press Type - H-Frame Hydraulic
Max. Pressure - 50 Tons
Capacity - 50 Tons
Ram Travel - 16 inches
Ram Pressing Speed - 11 i.p.m.
Horse Power - 2 HP
Hydraulic Pump - Combination power unit
Controls - On/Off switch with joystick hydraulic control
Oil Capacity - 3 U.S. gallons approx.
Width Between Uprights - 44 inches
Maximum Ram to Table - 41-3/4 inches
Minimum Ram to Table - 0 inches
Weight - 1,550 lbs.
Dimensions - 88"H x 55"W x 36"D
Lever control ram advance for easy operation.
Double acting cylinder allows for convenient positioning of ram.
Sturdy, welded channel iron frame for durability.
Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
One hand ram positioning with 4-way valve hydraulic control.
