| Swing | 31.75" | 806.45 mm |
| Machining Length | 21" | 533.4 mm |
| Max. Turning Diameter | 11.75" | 298.45 mm |
| X-Axis | 8.4" | 213.36 mm |
| Y-Axis | +/- 2" | +/- 2" |
| Z-Axis | 22.5" | 571.5 mm |
| C-Axis | 0.01° | 0.01° |
| Rapid Traverse X-Axis | 472 ipm | |
| Rapid Traverse Y-Axis | 472 ipm | |
| Rapid Traverse Z-Axis | 945 ipm | |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Spindle Nose | A2-6 | A2-6 |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turret Stations | 24 | 24 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |

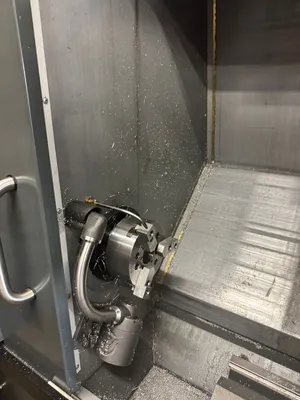

| Sub Spindle | Yes | Yes |
| Sub Spindle Max RPM | 6000 rpm | 6,000 RPM |
| Dimensions | 143" x 90" x 92" | 143" x 90" x 92" |
| Weight | 10,480 Lbs | 10,480 Lbs |

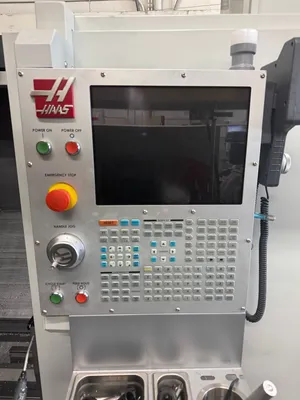

HAAS CNC Control
Rigid Tapping
Spindle Orientation
Automatic Tool Presetter
High Pressure Coolant 300 psi
Coolant Mist
Programmable Chuck Pressure
Chuck Air Blast
Sub-Spindle Air Blast
Parts Catcher
Wifi Camera

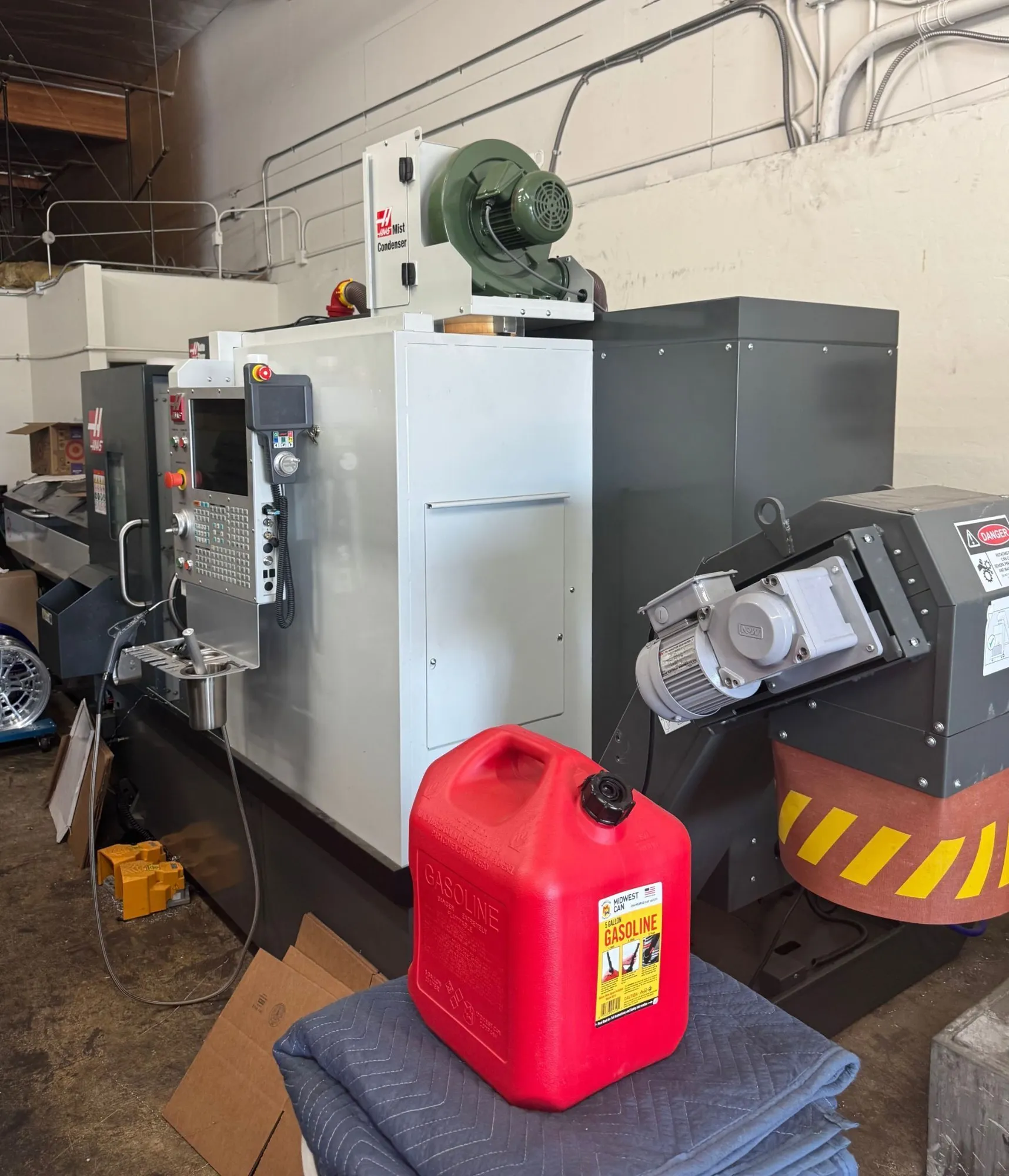

Chip Conveyor
55-Gallon Coolant Tank

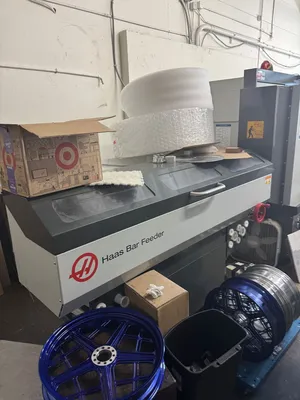

HAAS Bar Feeder
