USED 1990 Amada RG 80 EXII
Overview
Description

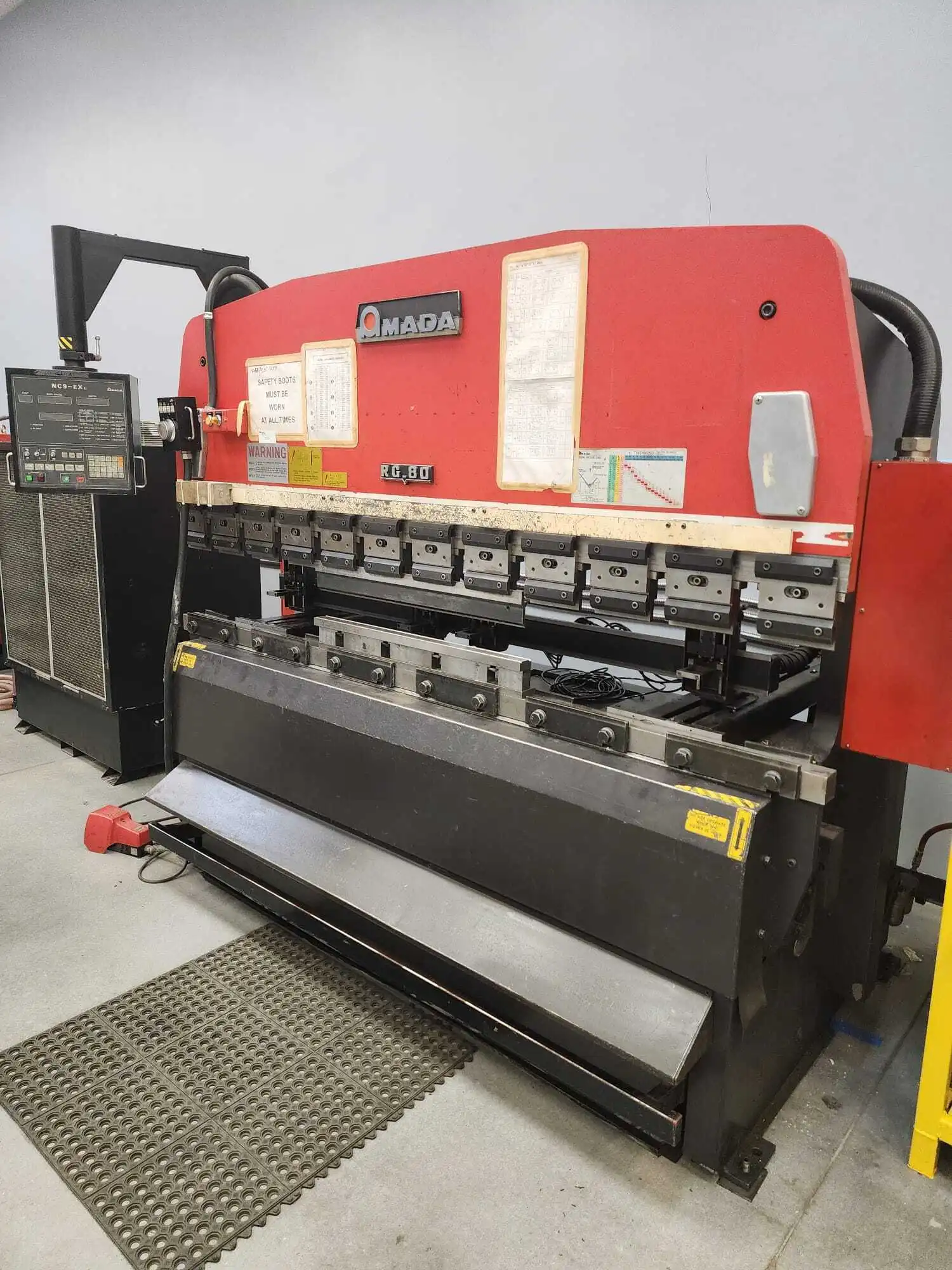

Amada CNC Press brake
Model RG-80
Year: 1990
Control NC9-EXII
Specifications
| Tonnage | 80 T | 72.575 t |
|---|---|---|
| Type | 'HYD' | 'HYD' |
| Overall Length | 8' | 2.4 m |
| Between Housings | 80" | 2 m |
| Stroke | 3.94" | 100.08 mm |
| Control | CNC (NC9-EXII) | CNC (NC9-EXII) |
| Weight | 5100 Kg | 5100 Kg |
Equipped With
Amada CNC Press brake
Model RG-80
Year: 1990
Control NC9-EXII
Technical Details (Subject to verification)
Capacity :80 Tons
Table length :2400 mm (94.6”)
Max Bending length :2505 mm (98.7”)
Distance between upright :2050 mm (80.8”)
Throat Depth :400 mm (15.76”)
Length of stroke :100 mm (3.94”)
Open Height : 370 mm (14.58”)
Power required : 6 kVA
Net weight : 5100 kg
