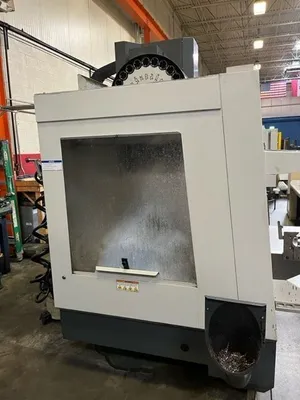

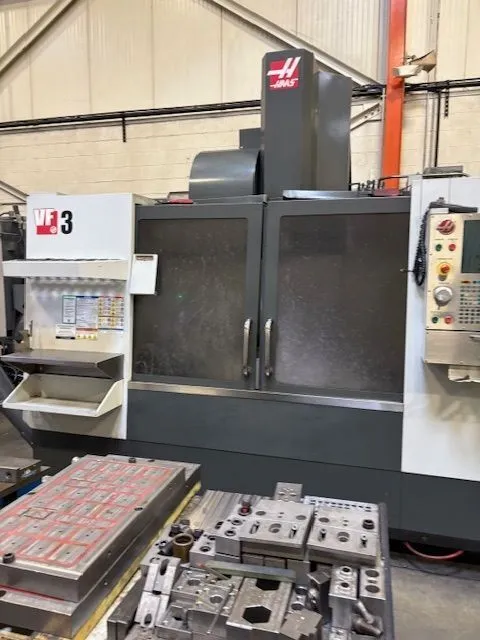

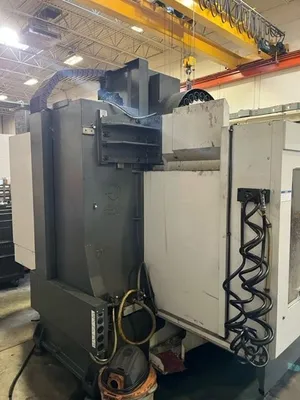

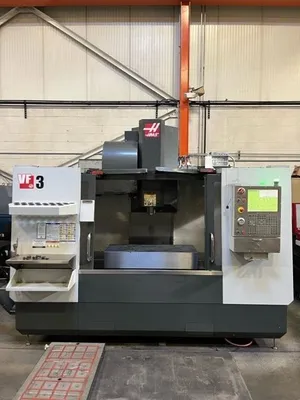

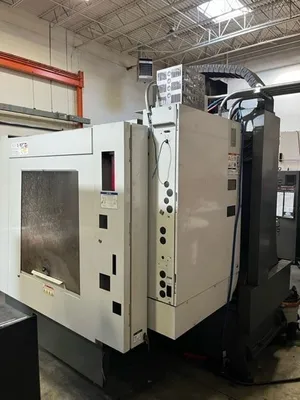

USED 2012 HAAS VF-3

Michigan US

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3
  • USED 2012 HAAS VF-3

USED 2012 HAAS VF-3

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-3
Year:
2012
Description

Haas VF-3 VMC, 2011 – Side-Mount ATC, High Speed Machining, 15k Spindle
Table Size 48″ X 18″
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4″ – 29″
X – Axis Travel 40″
Y – Axis Travel 20″
Z – Axis Travel 25″
Spindle Nose CAT # 40
Spindle Speed 15,000 RPM
Main Motor 20 HP
Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 24 + 1 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5″
Machine Weight 12,500 LBS.
Equipped with
1MB MEMORY
HAAS CNC 32-BIT CONTROL
HAAS INTUITIVE PROGRAMMING SYSTEM
HIGH SPEED MACHINING
MACROS
RIGID TAPPING
ROTATIONAL & SCALING
SOFTWARE VERSION M17.03A
TOOL LIFE MANAGEMENT
CHIP AUGER WITH CHIP CHUTE

Specifications
X40"1,016 mm
Y20"508 mm
Z25"635 mm
Power30 hp22.4 kW
RPM15,000 RPM15,000 RPM
# ATC2020
TaperCT 40CT 40
Table-W18"457.2 mm
Table-L48"1,219.2 mm
# Axis33
Dimensions8 x8 x88 x8 x8
Weight12,00012,000

Haas VF-3 VMC, 2011 – Side-Mount ATC, High Speed Machining, 15k Spindle
Table Size 48″ X 18″
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4″ – 29″
X – Axis Travel 40″
Y – Axis Travel 20″
Z – Axis Travel 25″
Spindle Nose CAT # 40
Spindle Speed 15,000 RPM
Main Motor 20 HP
Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 24 + 1 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5″
Machine Weight 12,500 LBS.
Equipped with
1MB MEMORY
HAAS CNC 32-BIT CONTROL
HAAS INTUITIVE PROGRAMMING SYSTEM
HIGH SPEED MACHINING
MACROS
RIGID TAPPING
ROTATIONAL & SCALING
SOFTWARE VERSION M17.03A
TOOL LIFE MANAGEMENT
CHIP AUGER WITH CHIP CHUTE
