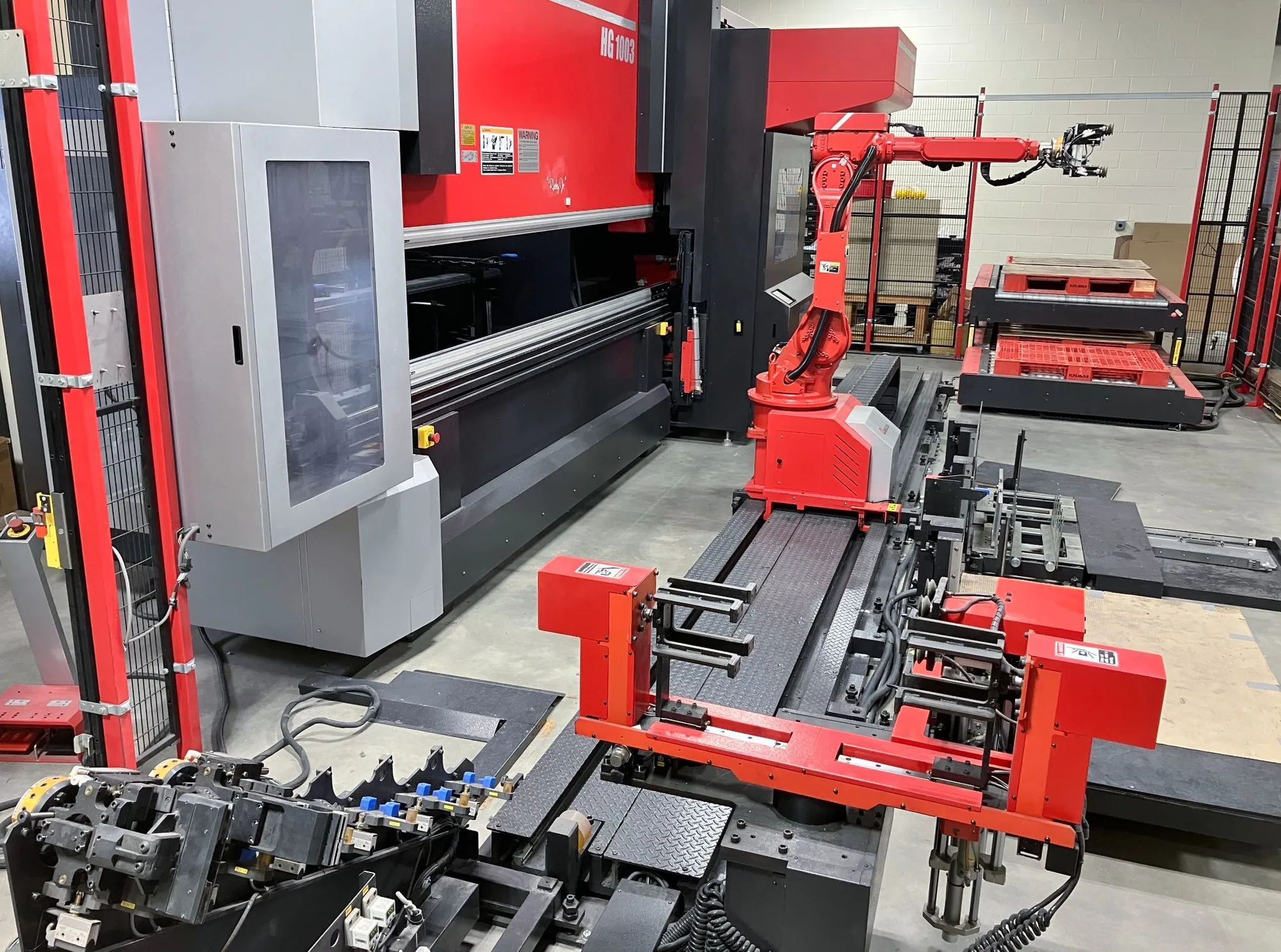

The HG1003ARS has adopted a high-end press brake, dubbed HG-ATC, and equipped with a new hybrid drive system and a tool changer, capable of automatic setup for step bend layout. Material loading, material handling during bending & part unloading are all performed by a single 7-axis articulated robot, capable of various motions. The AMADA HG1003ARS system can bend complex-shaped parts without setups & can run for long hours.
| TONNAGE | 100 T | 90.719 t |
| BENDING LENGTH | 120.5" | 3,060.7 mm |
| TABLE LENGTH | 122.4" | 3,109 mm |
| DISTANCE BETWEEN HOUSINGS | 106.3' | 32.4 m |
| MAX STROKE | 9.8" | 248.92 mm |
| THROAT | 17.7" | 449.58 mm |
| OPEN HEIGHT | 23.5" | 596.9 mm |
ROBOTIC BENDING CELL
AMADA AMNC 3i CONTROL (TOUCH SCREEN

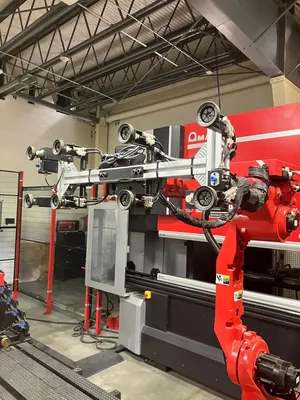

7-AXIS (6 AXES OF MOTION & 1 AXIS OF TRAVEL) AMADA HGROBOT020/YASKAWA DX100 ROBOTIC ARM (44LB PAYLOAD)
AUTOMATIC TOOL CHANGER (CAPABLE OF STORING UP TO 15 PUNCH STOCKERS & 18 DIE STOCKERS)

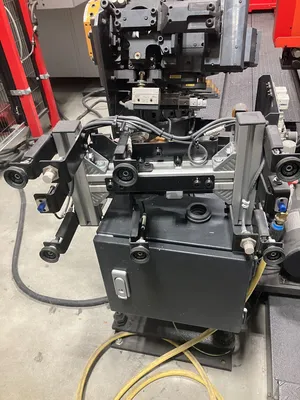

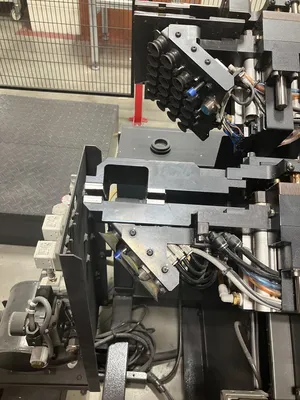

AUTOMATIC GRIPPER CHANGER
ROLLER TABLE/CONVEYOR FOR FINISHED PARTS (AMADA PF-A3)
AN ASSORTMENT OF DIES & PUNCHES (FULL LIST AVAILABLE UPON REQUEST)
** AS OF FEBRUARY 2026, RUN TIME – 4,189 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $850,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** SERVO-HYDRAULIC (HYBRID) PRESS BRAKE
** HYBRID DRIVE SYSTEM THAT COMBINES THE HIGH SPEED & PRECISION OF ELECTRIC MOTOR WITH THE POWER OF HYDRAULC CYCLINDERS
