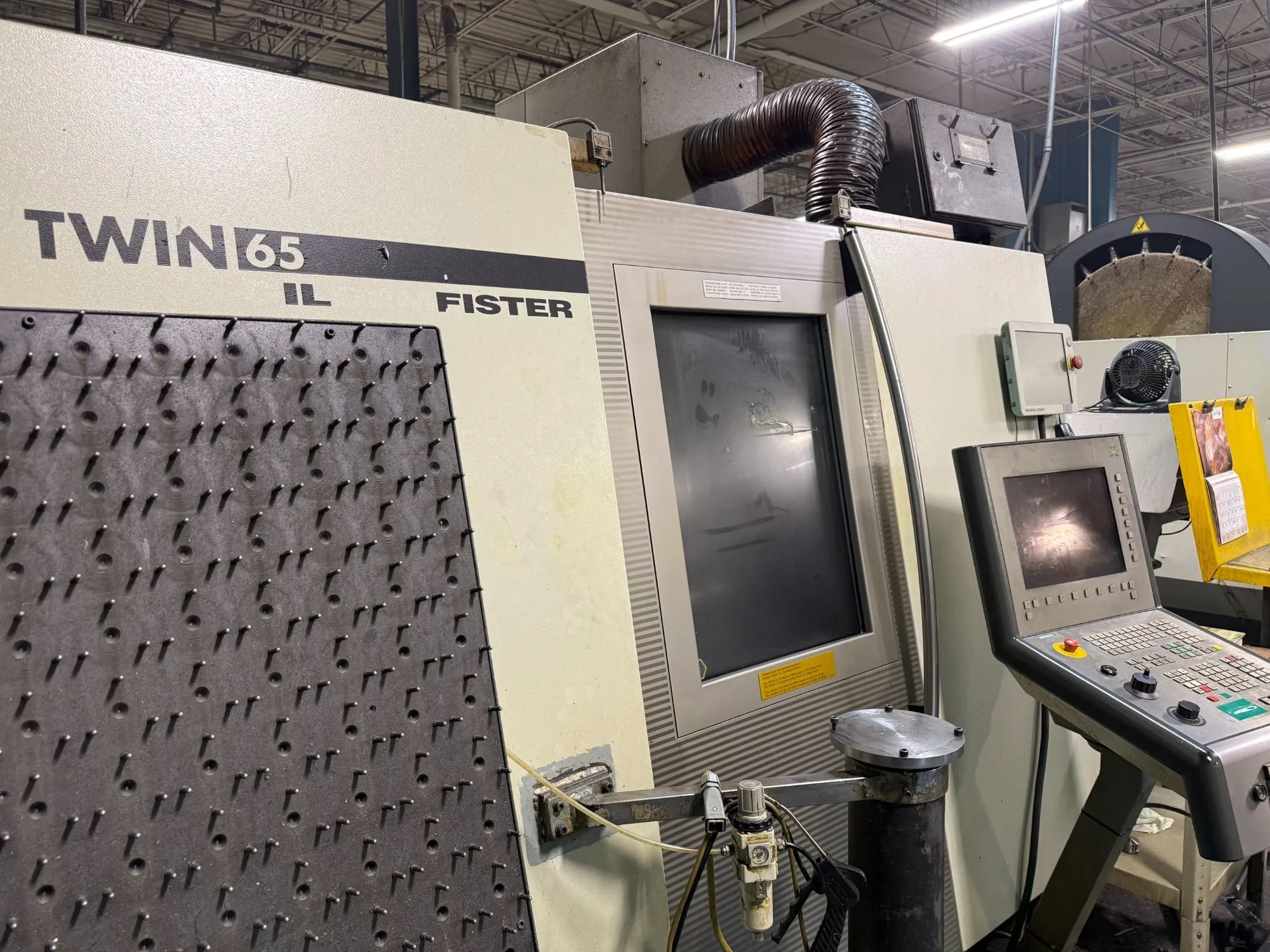

DMG Gildemeister Twin 65 Linear Multi Axis CNC Lathe, 2005. Features sub spindle, hydraulic double chuck, max RPM 5,000, and Siemens control. Power: 53.6 hp, dimensions: 162"x121"x110". Contact for details!
| Swing | 10" | 254 mm |
| Machining Length | 25" | 635 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 53.6 hp | 40 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 8" | 203.2 mm |
| Control | CNC (Siemens) | CNC (Siemens) |
| Dimensions | 162 x 121 x 110 | 162 x 121 x 110 |
| Weight | 16500 LBS | 16500 LBS |
Hydraulic Chuck Diameter (double chuck): 8"
Swing Over Bed: 10"
Turning Diameter: 8"
Work Piece Length: 25"
X-Axis: 8.6"
Z-Axis: 21.6"
Spindle Bore: 2.56"
Bottom Turret Tool Changer: 12
Upper Turret Tool Changer: 12
Max Spindle Speed: 5000 RPM
Main Motor: 40 KW
Power: 400V/230/3Ph/60Hz
Control: Siemens
Approx Weight: 16,500 LBS
Approx Dims: 162" x 121" x 110"
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
