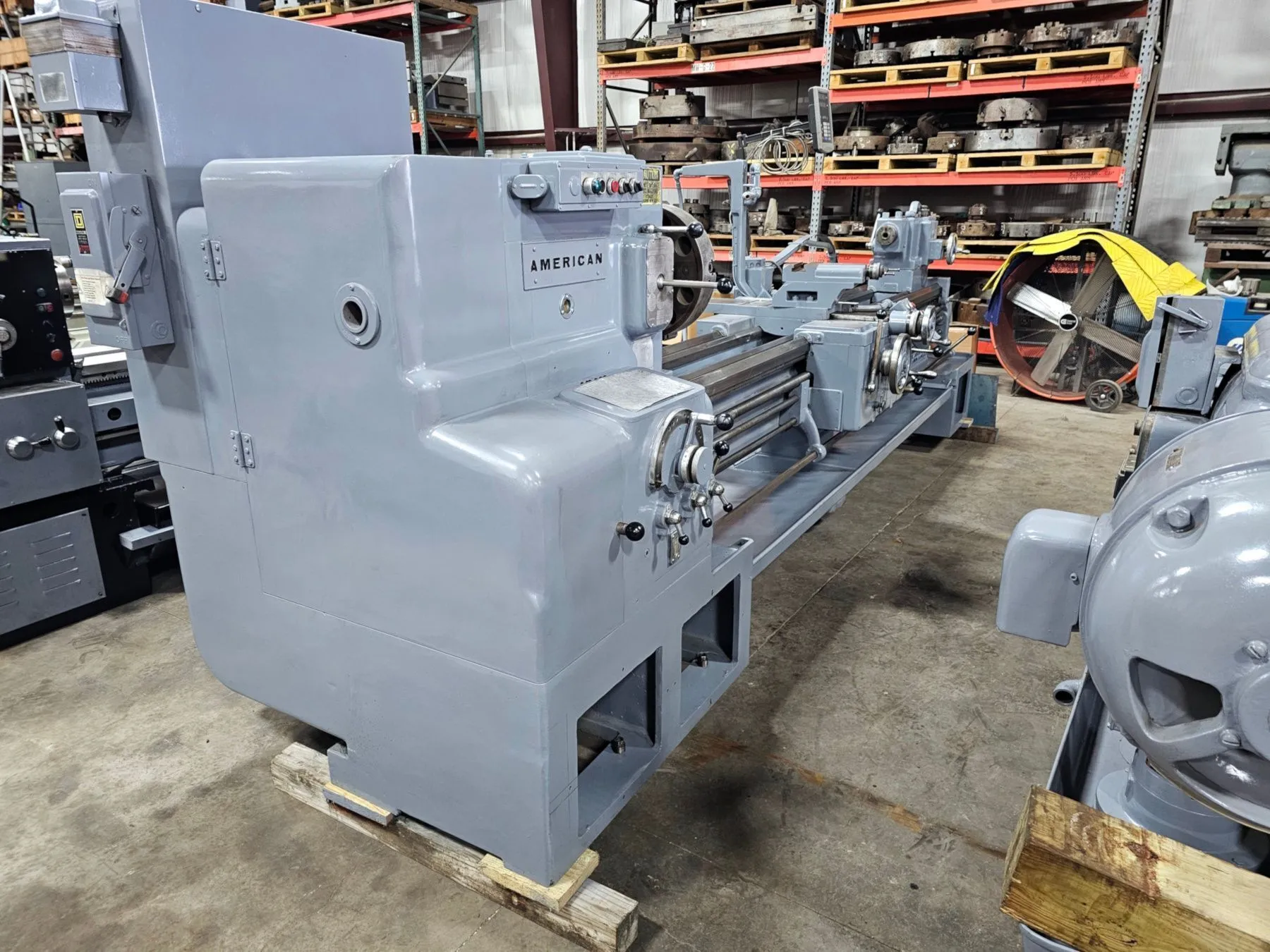

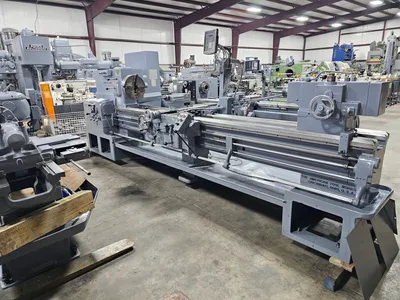

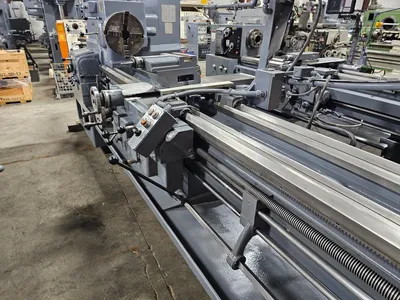

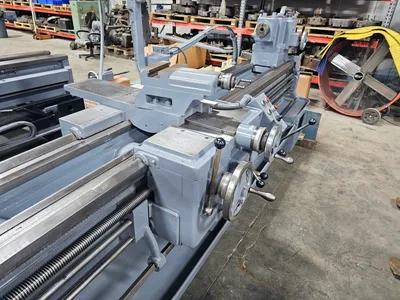

20" X 102 Used American Pacemaker Engine Lathe Model 20
| Swing | 25" | 635 mm |
| Swing Over Cross Slide | 16" | 406.4 mm |
| Centers | 102" | 2,590.8 mm |
| Spindle Bore | 2" | 50.8 mm |
| RPM | 1,000 RPM | 1,000 RPM |
| Power | 15 hp | 11.2 kW |
| Dimensions | R-L 178" X F-B 60" X Height 60" | R-L 178" X F-B 60" X Height 60" |
| Weight | 15,000 Lbs. | 15,000 Lbs. |
Swing Over Bed Ways......................25"
Swing Over Cross Slide...................14"
Compound Travel..........................4"
Carriage Length On Bed...................26-3/4"
Center Distance..........................102"
Spindle Hole.............................2"
Spindle Speeds (27)......................15 To 1,000 Rpm's
Spindle Nose.............................L-2

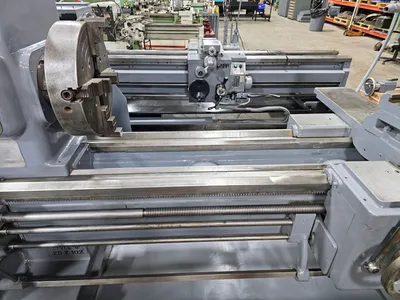

Chuck Size...............................15" 4 - Jaw
Feeds....................................0033 To .200 IPR
Threads Inch (66)........................2 To 120 TPI
Tail Stock Quill Diameter................4"
Tail Stock Quill Travel..................10"
Tail Stock Taper.........................# 4 Morse
Main Motor...............................15 Hp.
Floor Space..............................R-L 178" X F-B 60"
Height...................................80"
Weight...................................15,000 Lbs.
Steady Rest Roller Type..................6" Capacity
Coolant Pan..............................Yes
Thread Dial..............................Yes
Hardened And Ground Way..................Yes
Taper Attachment.........................No
Threads Metric...........................No
Note: Machine will be cleaned, painted and cycled.
Head stock and apron oil change and new belts.
