Low Hours - Haas Mini Mills are the industry standard for compact machining centers. They are perfect for schools, start-up shops, or as a first step into CNC machining. Loaded with full-size features, they are valuable additions for shops needing a “second-op” machine, or an additional spindle where space is limited.
| size | 20" x 16" x 14" | 20" x 16" x 14" |
| X Travel | 20" | 508 mm |
| Y Travel | 16" | 406.4 mm |
| Z Travel | 14" | 355.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 10 | 10 |
| Taper | CT40 or BT40 | CT40 or BT40 |
| Table-W | 40" | 1,016 mm |
| Table-L | 14" | 355.6 mm |

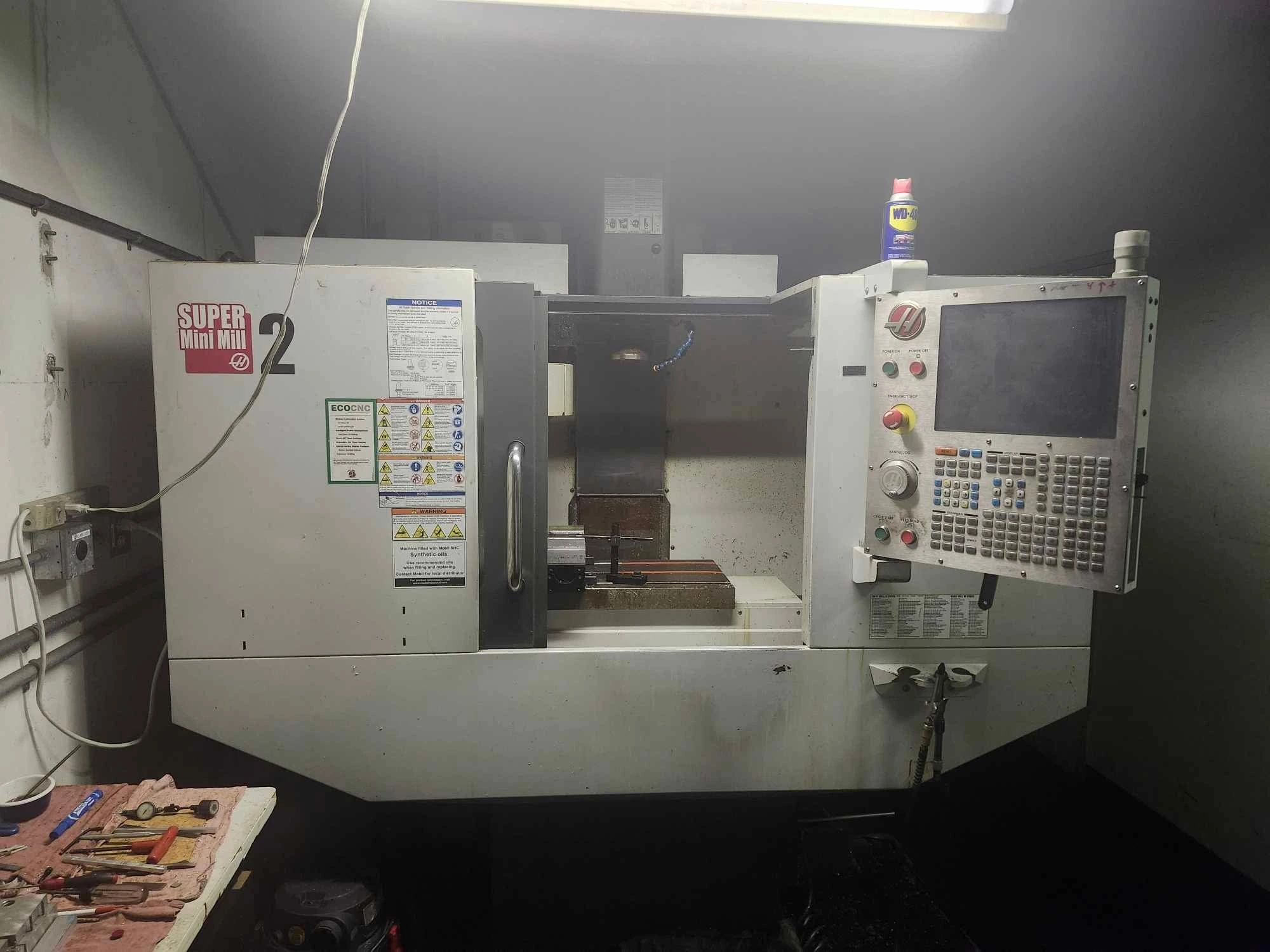

Haas Super Mini Mill 2 Vertical Machining Center
Table Size: 40" x 14" T-Slotted
Machine Travels (X/Y/Z): 20" x 16" x 14"
Spindle To Table Distance: 4 - 18"
Table Capacity: 500 LBS
Spindle Taper: CAT-40 Taper
Spindle Speeds: 10,000 Max RPM
Transmission: Direct Speed, Belt Drive
Rapid Traverse Rate (X/Y/Z): 1200 IPM
Maximum Cutting Feed Rate: 833 IPM
Tool Changer Style: Carousel
Tool Change Time: 4.2 Seconds Average
Max Tool weight: 12 LBS
Spindle Drive: 15 HP
