NEW 2024 JAINNHER JHU-2706CNC

JAINNHER Model JHU-2706CNC Universal Grinding Machine, Swing 13.78", Grinding Length 59.06"

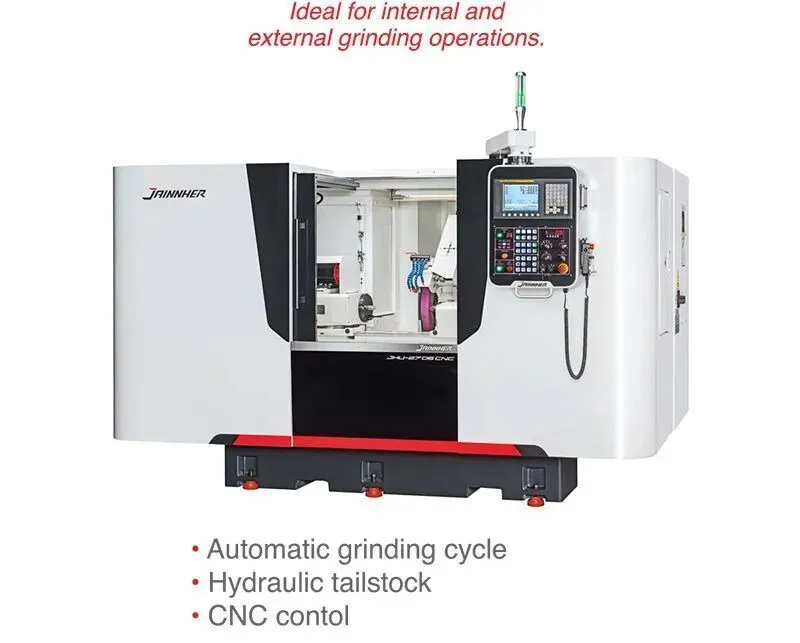

The Jainnher JHU-2706CNC is a precision CNC universal cylindrical grinder with a
(9.8") max grinding diameter and (23.6") length, featuring a 5HP (3.75kW) wheel motor, 0.001mm min setting unit, and hydrodynamic bearings. It is designed for high-accuracy grinding, achieving 2μm roundness.
Universal grinding machine-The wheel headstock provides 120° of swivel angle. And the worktable swivels 5°~ 11° CCW and 3°~6° CW tailstock sleeve movement is hydraulically operated for convenient workpiece loading and unloading.

As a high precision grinding machine manufacture in Taiwan since 1982, JAINNHER’s founders came from mechanical background and lead the team members to build a complete product line for fulfill various grinding demand. Our service tenet “Quality, Responsibility, Innovation capability” is to make a remarkable experience for all customers. We put every effort in stabilization technology and process control. We pay close attention to all users and respond to their requests promptly. “Exceeding The Pursuit Of Excellence”. We’ll continuously invest to the improvements of products, and sincerely hope can be your trustworthy partner of grinding solution.

Professional
Jainnher Machine owns 40 year’s experience and has develop a completely machine series to fulfill various grinding request. There is a widely used of grinding machines , such as: precision aerospace and other transportation industry, cutting tools, medical parts and consumer goods…etc. We all have successful cases of customized solution with different industries.

Stability
Jainnher’s machine series were designed and in-house manufactured by our senior R&D and technical team to make sure the quality is strictly under controlled. The integration of pre-sale/after-sale services ensures a stable operation of machines at customer's factory.

Reliability
Jainnher’s machine series were designed and in-house manufactured by our senior R&D and technical team to make sure the quality is strictly under controlled. The integration of pre-sale/after-sale services ensures a stable operation of machines at customer's factory.
PRECISION, RIGID SPINDLE
The grinding wheel spindle is supported by two special hydrodynamic bearings on the ends with five-point support, providing maximum rigidity and stability of spindle running. In case insufficient lubrication oil occurs, the spindle stops automatically to avoid wearing on the spindle and bearings.

SPECIAL VIBRATION ABSORBING DESIGN
The forced lubrication system of the grinding wheel spindle features vibration absorbing function. The oil film pressure, created by the hydrodynamic bearings, automatically absorbs vibration according to the current working condition.

Tools and Tool Box
Grinding Wheel & grinding wheel flange
Wheel Dresser
X axis linear scale on CNC machine
2-Point Center Rest
Water Pump and tank
Fully Enclosed Splash Guard
Touch Probe Gausge for CNC machine
