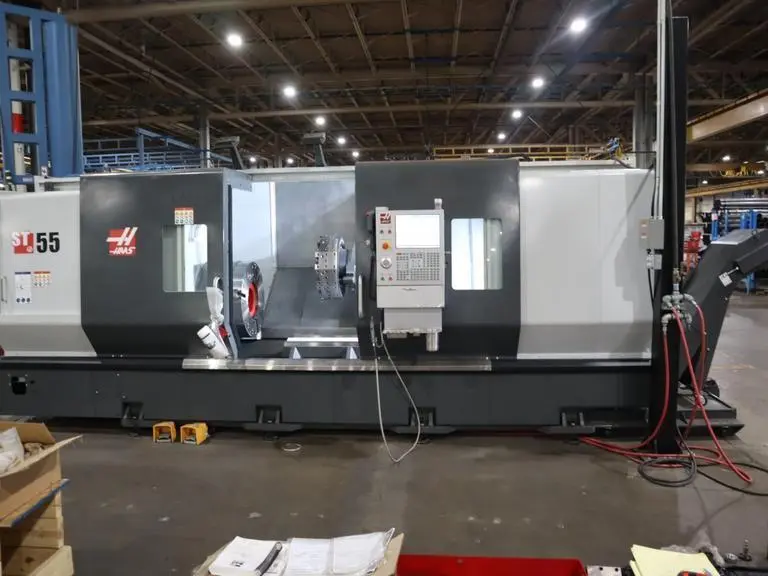

Haas ST-55 CNC Turning Center, New in 2023
Like - New, only 10 Spindle Hours
| Swing | 34.5" | 876.3 mm |
| Machining Length | 80" | 2,032 mm |
| Chuck Size | 26" | 660.4 mm |
| Bar Capacity | 12.5" | 317.5 mm |
| Power | 55 hp | 41 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 265" x 102" x 99" | 265" x 102" x 99" |
| Weight | 31,000 lbs | 31,000 lbs |
General Specifications:
Max Swing Over Bed: 34.5"
Max Swng Over Saddle: 25.5"
Max Turning Diameter: 25.5"
Max Turning Length: 80"
Max Bar Capacity: 12.5"
Hole Thru Spindle: 12.5"
Chuck Size: 26"
Spindle Nose: A1-20 Front and Rear Headstock
Spindle Speeds: 1,000 Max RPM
Number of Steps: 2-Speed Gearbox
Turret Capacity: 12 Stations
Turret Travels: (X,Z) 17.0" x 8.0"
Rapid Traverse Rate: (X/Z) 710 / 320 IPM
Tailstock Quill Diameter / Taper: #6MT
Spindle Motor: 55 HP
Electrics: 440 Volt, 3 Phase, 53 Full Load Amps
Haas Next Generation CNC Control
12 Station Automatic Tool Turret
Programmable Tailstock
(2) SMW Big Bore (12.2" Bore) 26" Pneumatic Chucks
Hennig Chip Conveyor
1,000 PSI Coolant System
Rigid Tapping
1GB Memory
8 Spare M Functions
Cabinet Cooler
Ethernet Interface
High-Intensity Lighting
XL Remote Jog Handwheel - Touchscreen
Spindle Orientation
WIFI Connect
(2) Remote Foot Actuators
(2) 3" Bore Turret Tool Holders
(3) 2.5" Bore Turret Tool Holders
(1) Bolt-On Turning Holder
Several Turning Clamps for Turret, Chuck Jaws, Manuals
LIKE NEW ONLY 10 SPINDLE HOURS!
