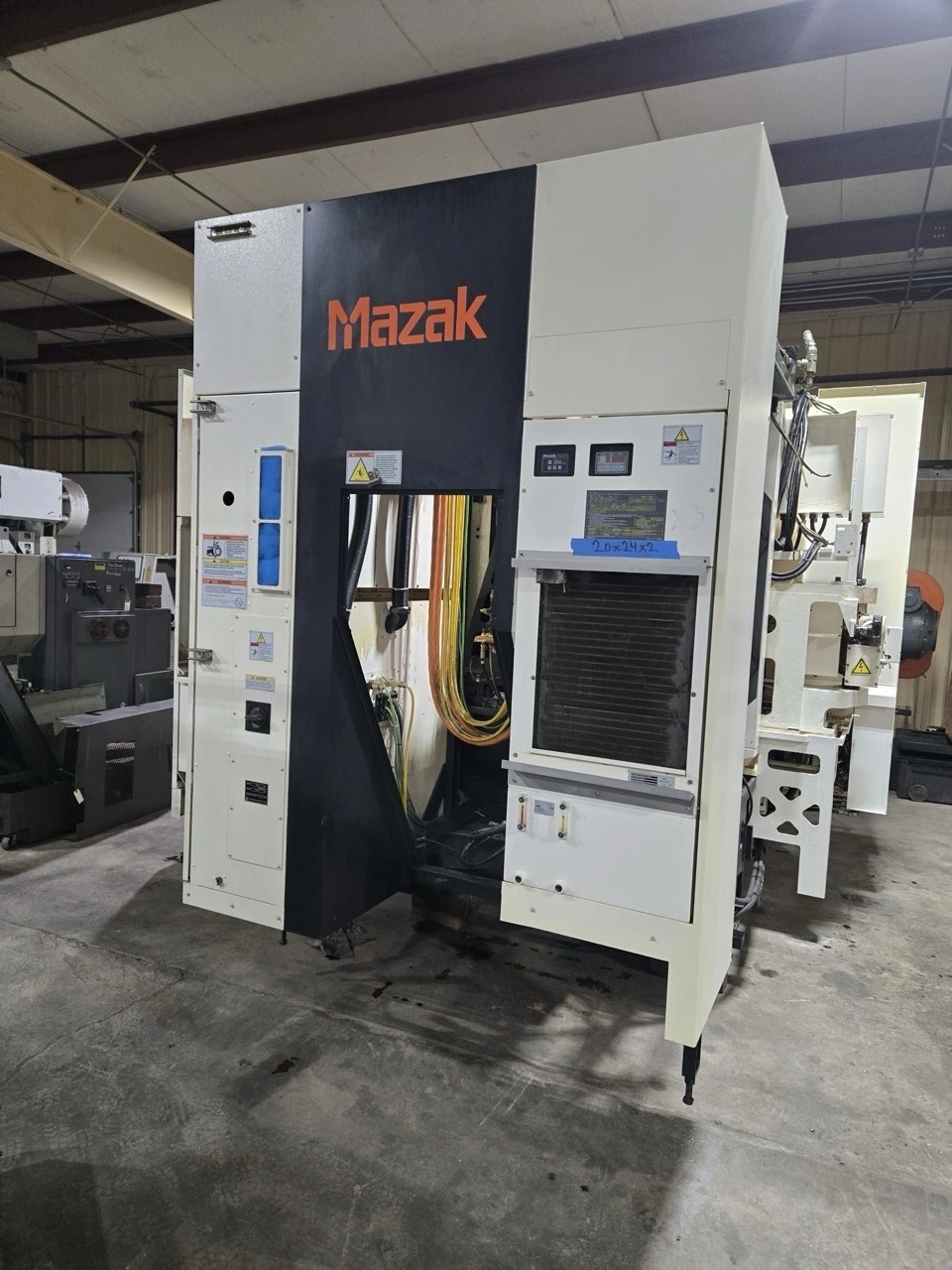

Used Horizontal Machining Center, equipped with full 4th axis, CAT 40 taper, and chip conveyor. Features 22.05" X, 25.2" Y, and Z travel, 25 hp, 80-tool capacity.
| X | 22.05" | 560.07 mm |
| Y | 25.2" | 640.08 mm |
| Z | 25.2" | 640.08 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 80 | 80 |
| Taper | 40 | 40 |
| Pallet-W | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
CAPACITY
Maximum workpiece diameter: 24.80 inches
Maximum workpiece height: 35.43 inches
X-axis travel (column right and left): 22.05 inches
Y-axis travel (spindle up and down): 25.20 inches
Z-axis travel (table back and forth): 25.20 inches
SPINDLE (standard)
Spindle taper hole: 7/24 taper, No. 40 (standard)
Spindle speed maximum: 18,000 min⁻¹
TABLE & PALLET
Pallet width: 15.75 inches
Pallet length: 15.75 inches
ATC TOOL MAGAZINE
No. of tool pockets (standard): 40
MACHINE SIZE
Width: 87.01 inches
Length: 181.93 inches
-Full 4th Axis
-CAT 40 Taper
-Chip Conveyor
-Probing
-80 Tools
