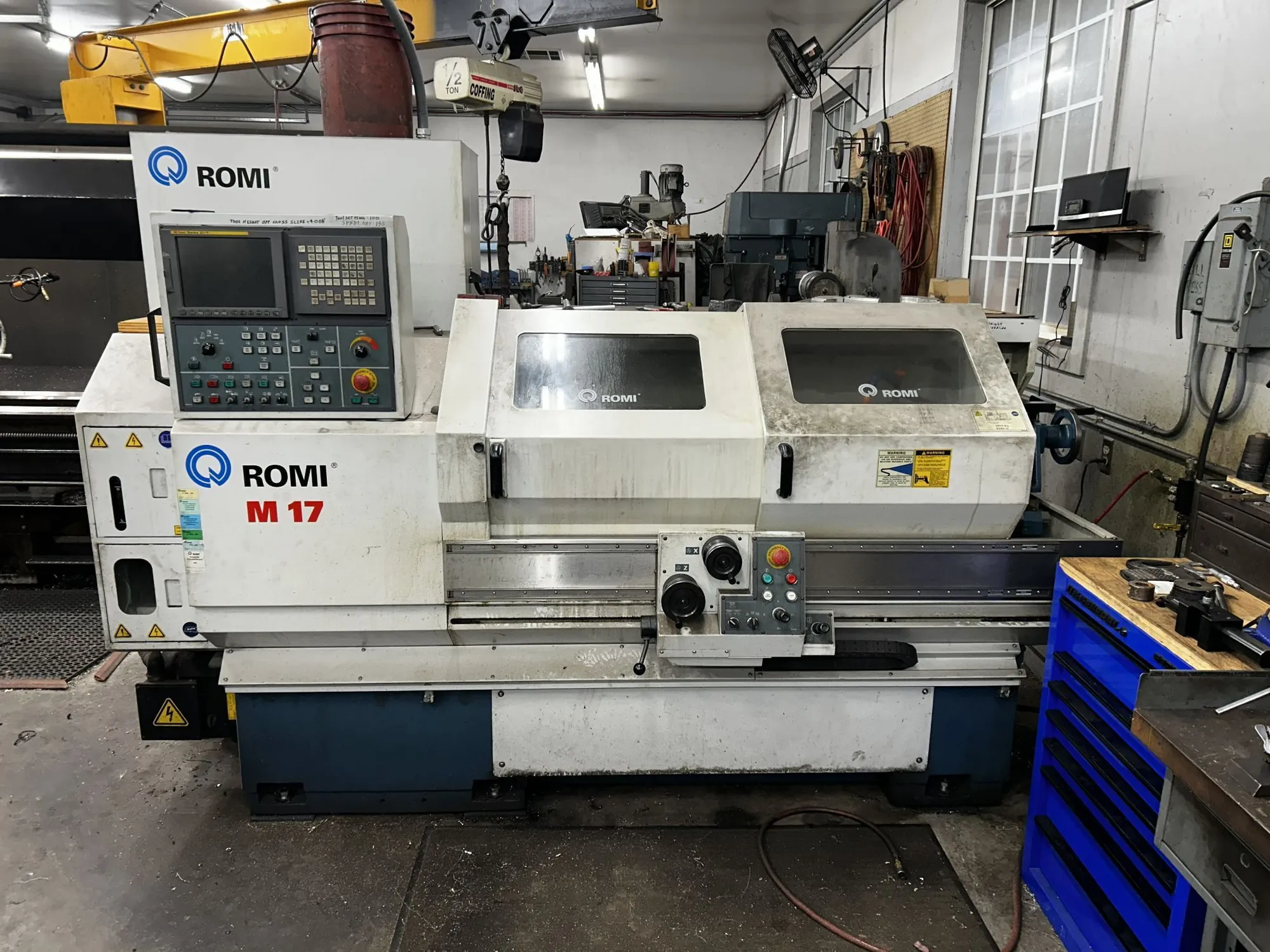

2007 Romi M17 Flat Bed CNC Teach Lathe with Fanuc 21i-T Control, 8" 3-Jaw Chuck, Tailstock, Quick Change Tool Post. Machine only has 410 Cutting Hours.
| Swing | 16.93" | 430.02 mm |
| Machining Length | 43" | 1,092.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 21i-T Control) | CNC (Fanuc 21i-T Control) |
| Dimensions | 108" x 50" x 77" | 108" x 50" x 77" |
| Weight | 5,700 LBS | 5,700 LBS |
Swing Over Bed.................16.93"
Swing Over Cross Slide.........8.03"
Maximum Turning Diameter.......16"
Maximum Turning Length.........43"
Distance Between Centers.......43.46"
Spindle Drive Motor............10 HP
Spindle Nose...................A2-5
Spindle Bore...................2.09"
Spindle Speeds.................3,000 RPM
Rapid Traverse X-Axis..........394 IPM
Rapid Traverse Z-Axis..........295 IPM
Tailstock Quill Diameter.......2.36"
Tailstock Quill Travel.........4.7"
Electrics......................480V/3PH/60HZ
Approx. Dimensions.............108" x 50" x 77"
Machine Weight.................5,700 LBS
Fanuc 21i-T CNC Control
8" 3-Jaw Chuck
Tailstock
Quick Change Tool Post
HOURS:
Power on Time.......6,451
Run Time............777
Cutting Time........410
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
