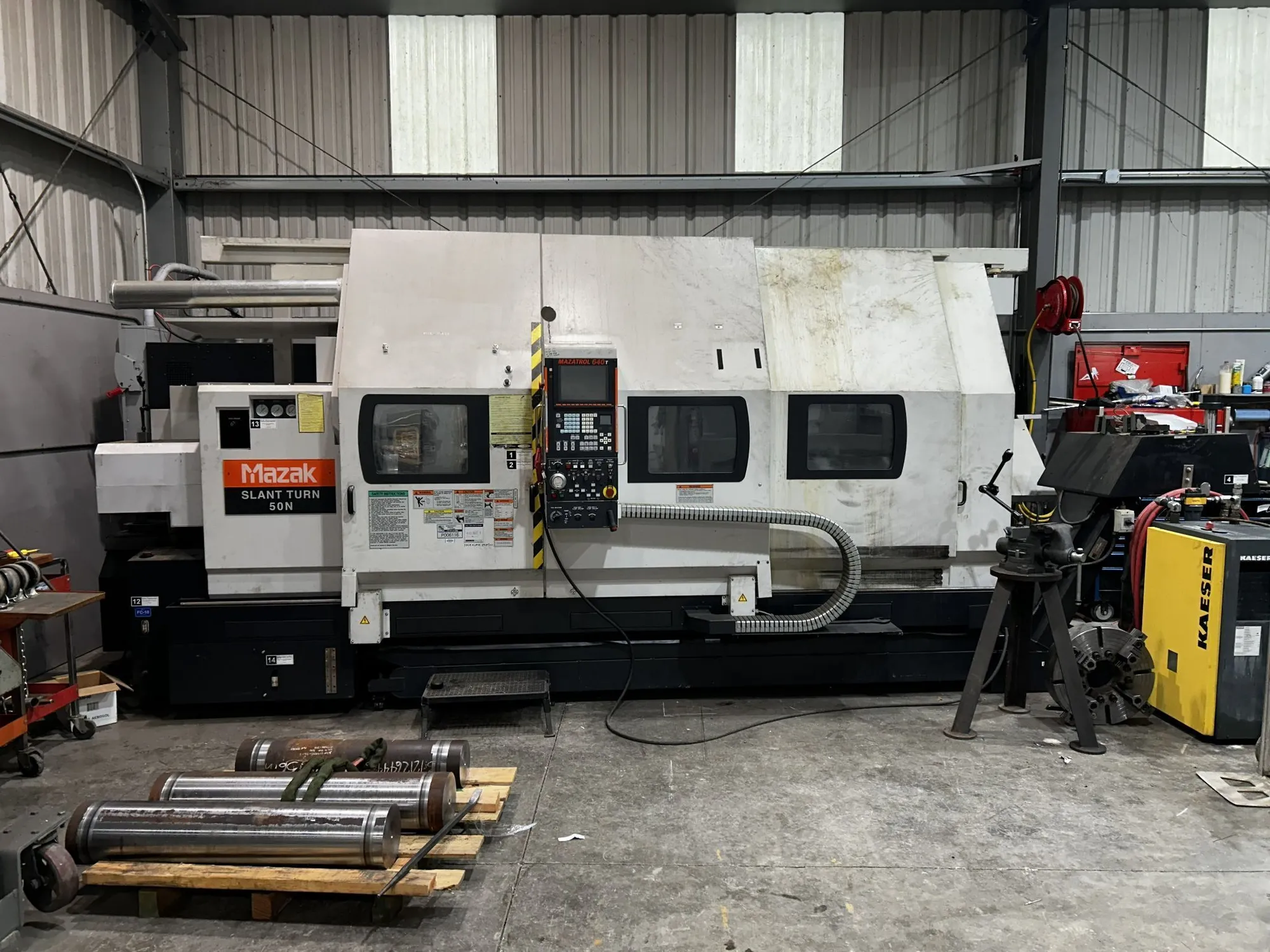

USED 2008 MAZAK SLANT TURN 50N-2000
Overview
Description
2008 Mazak Slant Turn 50N CNC Lathe
Specifications
| Swing | 31.69" | 804.93 mm |
|---|---|---|
| Machining Length | 79.13" | 2,009.9 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,600 RPM | 1,600 RPM |
| Turning Dia | 28" | 711.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol 640T) | CNC (Mazatrol 640T) |
Max Swing Over Bed............31.7"
Max. Turning Diameter.........28"
Max. Turning Length...........79.13"
Distance Between Centers......89"
X-Axis Travel.................25.00"
Z-Axis Travel.................80.00"
Spindle Bore..................5.00"
Bar Capacity..................3.50"
Draw Tube ID..................3-9/16"
Without Draw Tube.............4"
Spindle Motor.................50 HP
Spindle Nose..................A2-11
Spindle Speed.................1,600 RPM
Rapid Traverse................473/552 IPM
Number of Tools...............10 Station Turret
Equipped With
Mazatrol 640T CNC Control
Multi-Tap Transformer
Tailstock
Manual Steadyrest
Donaldson Torit WSO 25-1 Mist Collection
Mayfran Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
