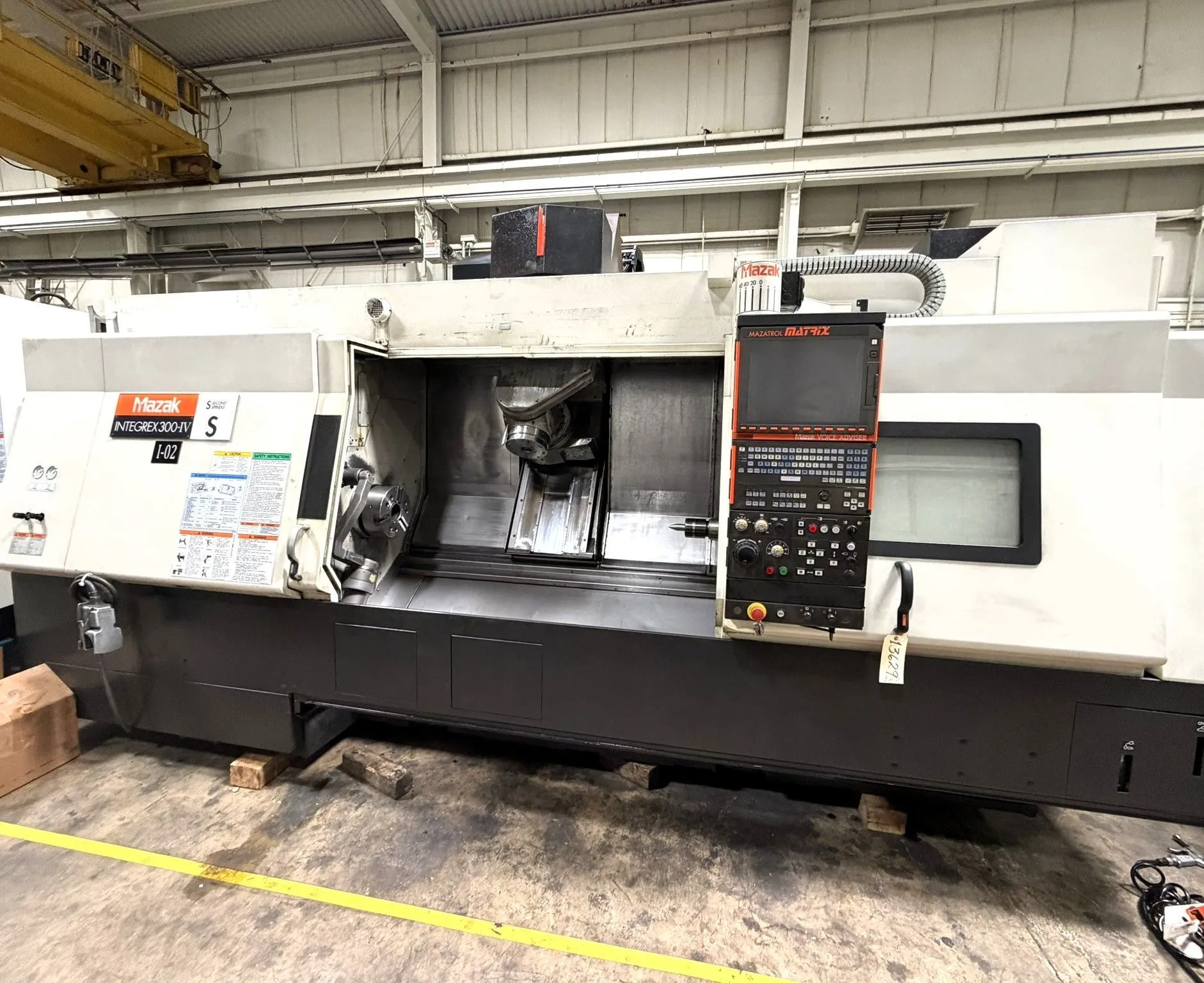

USED 2006 MAZAK INTEGREX 300 IV S
Overview
Description
MAZAK INTEGREX 300-IVS 5-AXIS CNC MILL/TURN CENTER,
Mazatrol Matrix CNC Control
4,000 RPM Main & Sub-Spindle. 12,000 RPM Milling Spindle B-Axis
Renishaw Probe & 10" Chuck
Chip Conveyor & Coolant System
Parts Catcher & Tools Measurement
Specifications
| # Axis | 7 | 7 |
|---|---|---|
| Swing | 25" | 635 mm |
| Machining Length | 60" | 1,524 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | No | No |
| Control | CNC (MATRIX) | CNC (MATRIX) |
Capacity
Max. Machining Dia. 30.000"
Max. Machining Length 60.000"
Main Spindle
Chuck size 10"
Max.Speed 4,000 RPM
Motor output (30 min. rating0 40 HP
Second Spindle
Max. Speed 4,000 RPM
Motor output (30 min. rating) 35 HP
Milling Spindle
B-Axis Travel 225 deg.
Magazine capacity 20
Max. Speed 12,000 RPM
Motor output (20 ED rating) 25 HP
Feed Axes
Travel X-Axis 24.80"
Travel X2 Axis 9.06"
Travel Y-Axis 9.06"
Travel Z-Axis 62.40"
Travel Z2-Axis 60.24"
Equipped With
Mazatrol Matrix CNC Control
4,000 RPM Main & Sub-Spindle.
12,000 RPM Milling Spindle B-Axis
10" Chuck
Chip Conveyor & Coolant System
Parts Catcher & Tools Measurement
KM63 type tooling
