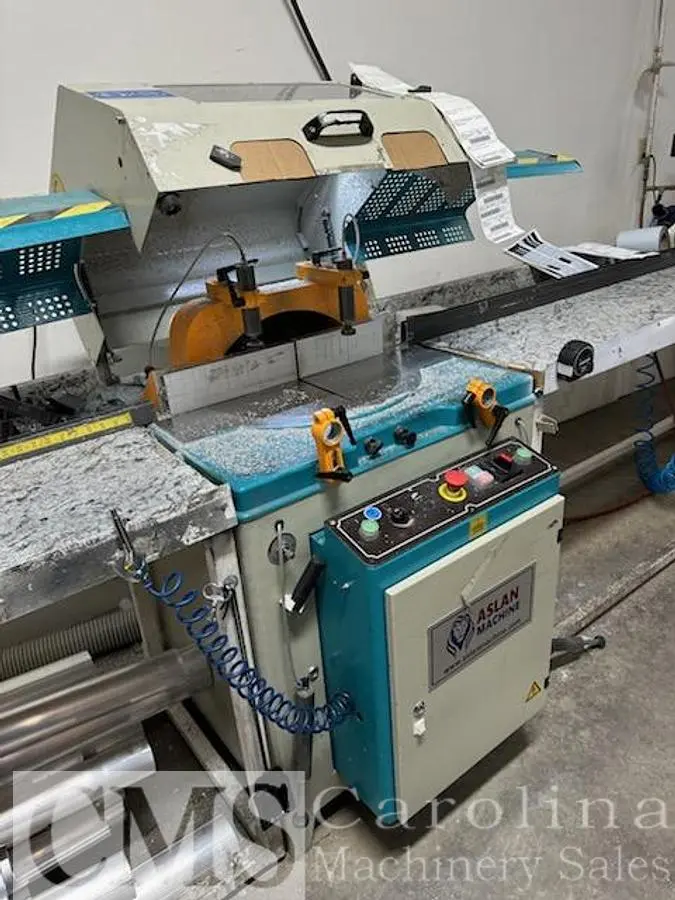

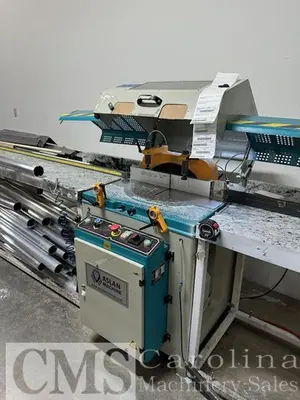

USED 2021 ASLAN US1 420

● For smooth, precise, fast and easy cutting of aluminum profiles
● Can cut profiles at all angles from -75.0° to left and +75° to right
● Adjustable saw blade rising speed
● Adjustable fence for wider cutting capacity
● Multiple profile cutting at one sequence
● Safety guard for protection
● Double hand operation for safety
● Standard vertical pneumatic profile clamping system
● Standard horizontal pneumatic profile clamping system
● Lighted cabin for increased visibility
● Top and bottom dust ports
● Easy to use control panel
● Standard hydro-pneumatic (oil and air) system for smooth cutting
● Spray mist cooling system for the blade
● Strong motor
● Special alloy aluminum table, strong sheet body and durable electrostatic paint
● Cast iron center

Standard Equipment
● Ø 420 mm saw blade installed.
● 2 pneumatic vertical clamps
● Air gun

Optional Equipment
● 2 pneumatic horizontal clamps
● 2 dust ports
● Spray mist system
● Standalone clamp pressure adjusters for flexible profiles

Technical Specs
● Motor Power: 2.2 kw (3 hP)
● Voltages: 230 (1 phase), 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 3000 rpm
● Blade Size: 420 mm (17 inch)
● Bore Diameter: 30 mm / 32 mm
● Air Pressure: 90-120 psi (6 - 9 Bar)
● Weight: 260 kg (575 lb)
● Dimensions (WxLxH): 90x85x130 cm (33x35x51 inch.)
