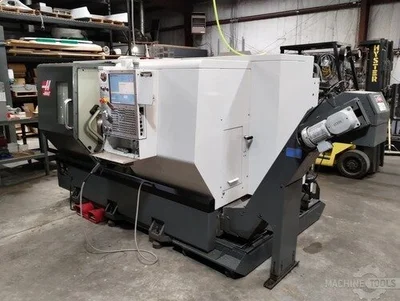

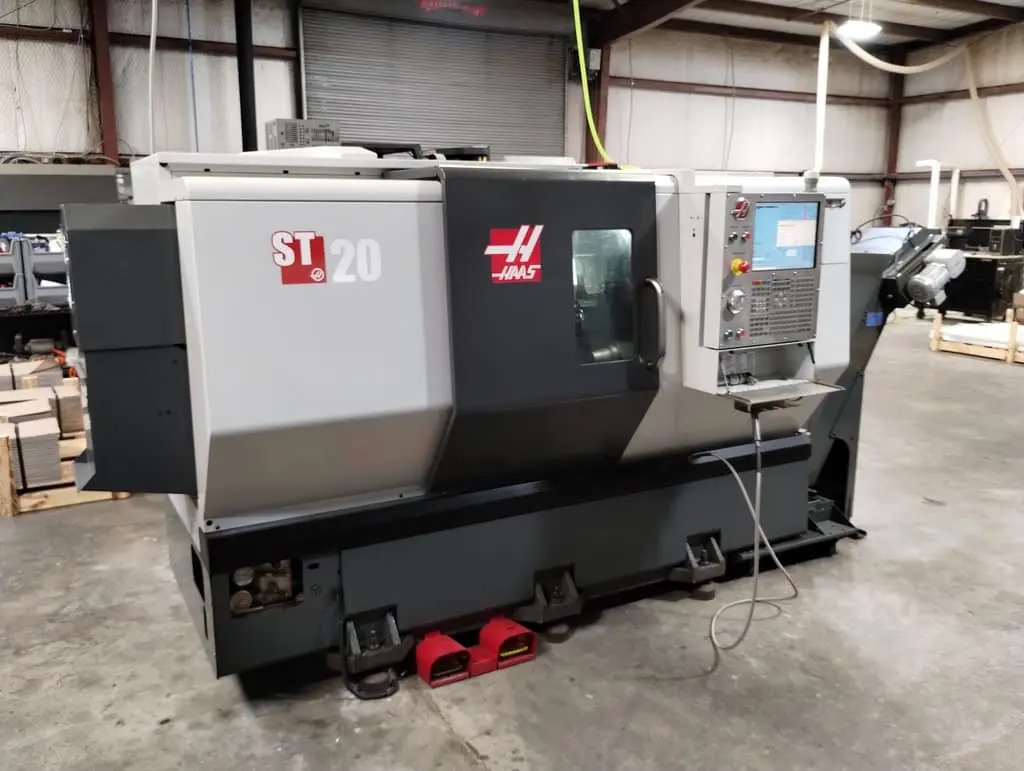

Haas ST-20 CNC Lathe (2012)
| Swing | 31.75" | 806.45 mm |
| Machining Length | 20.5" | 520.7 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | No | No |
General Info
Stock #: 141260004
Location: GA
Brand: Haas
Model: ST-20
Year: 2012
Approx. Shipping Weight: 8,500 LBS.
Approx. Shipping Dimensions: 12' L x 8' W x 8' H
Skidding Fee: Skidding Unavailable
Loading Fee: Loading Included
Specifications
Max Turning Diameter: 13"
Max Swing Over Bed: 21"
Max Turning Length: 22.5"
Max Bar Capacity: 2"
X Axis Travel: 8.4"
Z Axis Travel: 22.5"
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 2.5"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

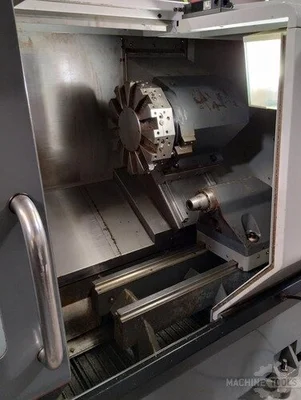

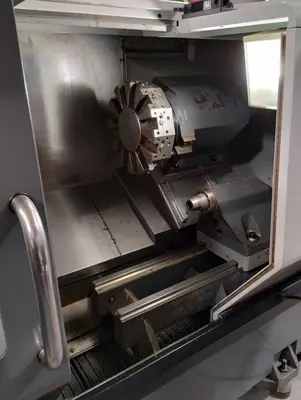

Turret Capacity: 12 Station (BOT)

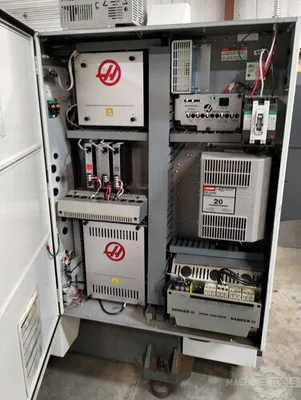

Electrical: 195V - 260V / 3PH / 40 FLA
Equipped With

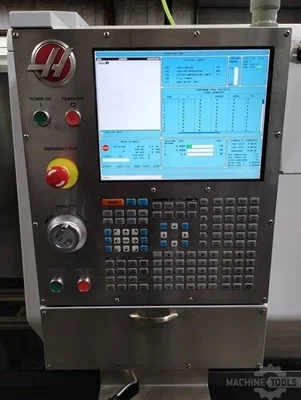

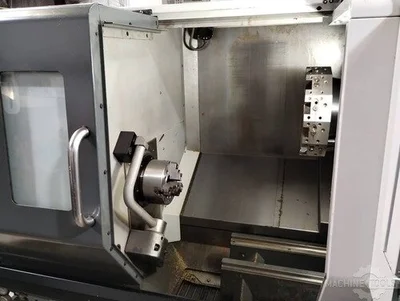

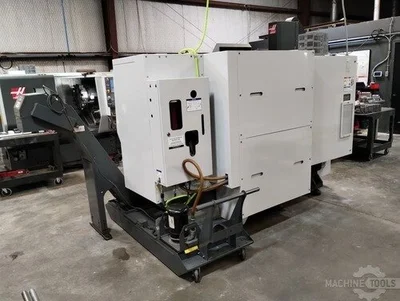

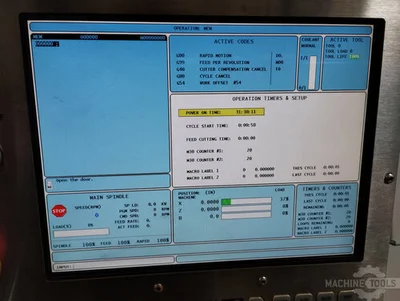

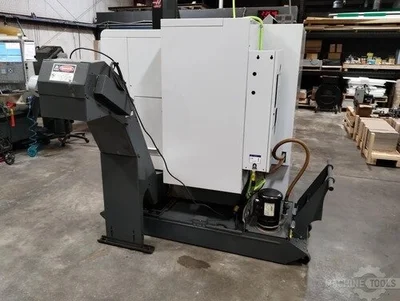

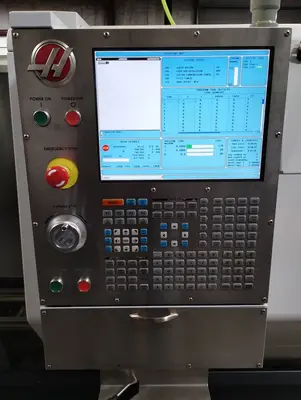

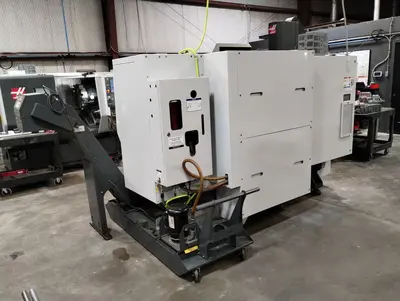

New Spindle Cartridge, New X-Axis Linear Rails / Bearing Blocks, New X-Axis Ball Screw, New Ball Screw End Support Bearings, New X & Z Wipers, New Spindle Belt, New Encoder Belt, Tool Presetter, Part Probing System, Haas Cold Fire II Control, Hennig Chip Conveyor, Samchully 3-Jaw Hydraulic Chuck, Hydraulic Tailstock, 12 Station BOT Turret, Coolant Tank w/ Pump
Additional Info
This lathe can be demoed upon request. Please contact us to schedule. Lathe was recently partially rebuilt and fully realigned. See "Equipped With" for replacement part details.
