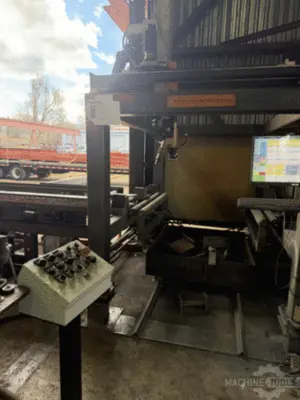

This heavy-duty beam coping machine is designed for precision cutting, beveling, and shaping of steel profiles. Its full-stroke hydraulic clamps and powered lift rollers ensure smooth material handling, while the advanced Koike and Hypertherm cutting torches provide high-quality results on mild steel, stainless, and aluminum. The machine supports large and custom-length heavy-duty roller conveyors, cross transfer tables, and a heavy-duty beam rotator set for maximum efficiency. Integrated measurement systems and Windows-based CNC control allow for automated programming, flange and web detection, and precise material positioning. Designed with operator safety in mind, all flame-cutting components are fully protected, and the system includes emergency stop features, LED indicators, and wireless control for material handling.
Dimensions: 120ft by 40ft x 12ft
Control: CNC (CNC CONTROL)

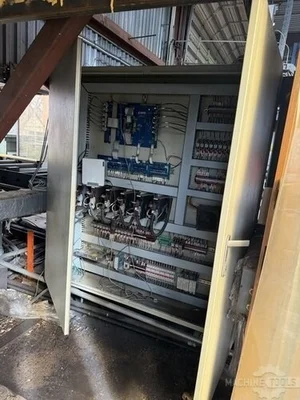

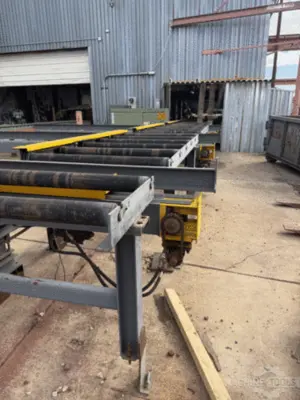

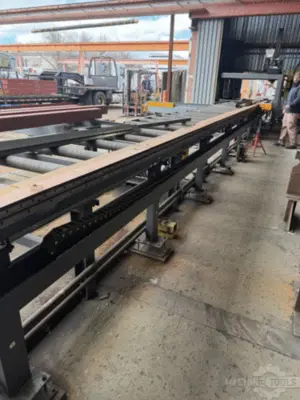

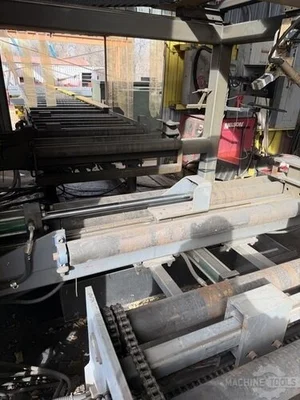

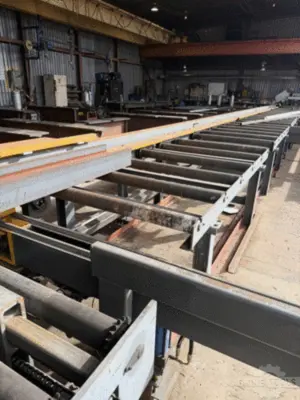

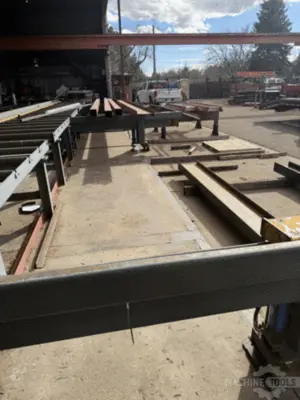

AMTEK APC1200 Plasma Fiber Etching Raycus 50W Measurement MD60 system (up to 60 ft, integrated with conveyors) RC6 – 100”, 6-Roller, 44” Wide Heavy Duty Powered Roller Conveyors (1000 lbs per foot) RC2 – Double 44” Wide Heavy Duty Powered Roller Conveyors (1000 lbs per foot) CF (12’3″) Infeed Conveyor CF (20′-2 1/6″) Infeed Conveyor 20 HP Hydraulic Power Unit Hydraulic Kit (covers 10% of Material Handling at list) Wireless control with electrical cabinet for material handling Koike / Hypertherm Torch integration for plasma and oxy-fuel cutting Material zero start position detection and flange/web offset detection Full stroke hydraulic clamps (manual / automatic operation) Heavy-duty powered roller conveyors and cross transfer tables (custom lengths, up to 8,000 lbs capacity) Beam rotator set (up to 8,000 lbs per unit / 16,000 lbs per set) 5-axis cutting and beveling capability (X, Y, Z, W, V) LED indicators, start/stop/pause/retrace/resume controls Plasma Torch: Hypertherm PowerMax 125 Mini, 1” max piercing on mild steel Fiber Optic Cutting Head with Raycus 50W Resonator, 8” focal length Yaskawa servo drives and motors with brakes on every axis Full electrical circuit protection (main power input, emergency stop, clamps manual control)
