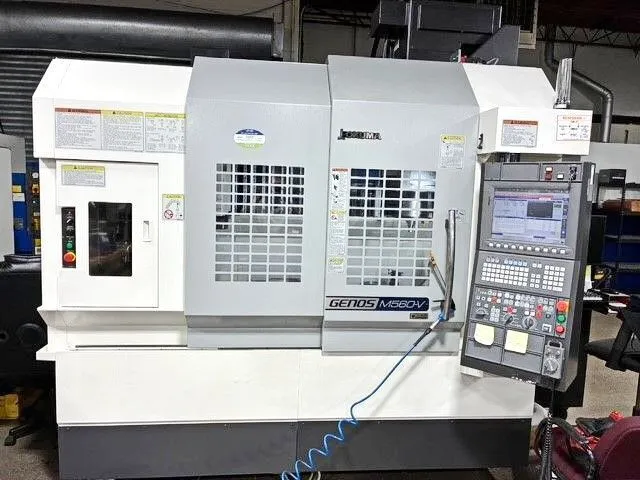

2022 Okuma Genos M560-V Vertical CNC Machining Center, TSC, Renishaw OMP400 Probe, Kurt Vises, Chip Conveyor
| X-Axis | 41.34" | 1,050 mm |
| Y-Axis | 22.05" | 560.07 mm |
| Z-Axis | 18.11" | 459.99 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 22.05" | 560.07 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,980 lb | 898.1 kg |
| Distance Spindle Nose to Table | 24.02" | 610.11 mm |
| Rapids (X/Y/Z) | 1,575 / 1,575 / 1,260 in/min. | 1,575 / 1,575 / 1,260 in/min. |
| Control | CNC (Okuma OSP-P300MA) | CNC (Okuma OSP-P300MA) |
| Dimensions | 133.8" X 110.24" X 114.56" | 133.8" X 110.24" X 114.56" |
| Weight | 12,125 lb | 12,125 lb |
Through spindle coolant
High-pressure coolant pump (1,000 psi)
Renishaw OMP400 optical probe
(3) Kurt vises
Chip conveyor
Spindle cooling system
