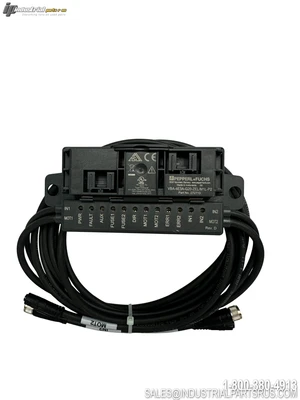

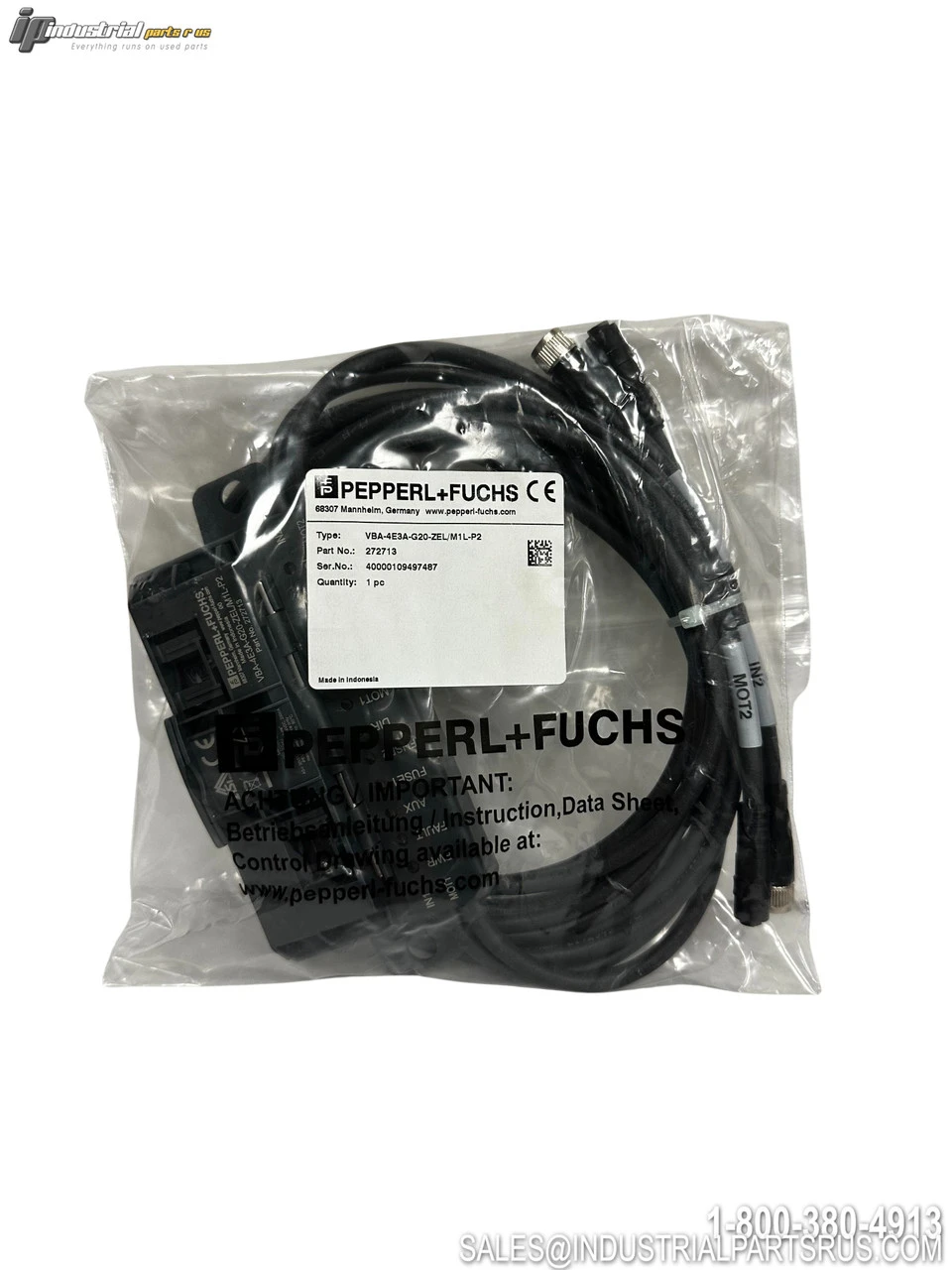

NEW PEPPERL+FUCHS VBA-4E3A-G20-ZEL/M1L-P2

The Pepperl+Fuchs VBA-4E3A-G20-ZEL/M1L-P2 is an AS-Interface Motor Control Module designed for controlling one or two DC roller motors in conveyor applications. This compact G20 series module features two sensor inputs for 3-wire sensors and two electronic outputs optimized for Interroll EC310 roller motors and compatible DC motors, with configurable start/stop ramps and communication monitoring.
Specification
Value
Brand
Pepperl+Fuchs
Model/Part Number
VBA-4E3A-G20-ZEL/M1L-P2
Product Type
AS-Interface Motor Control Module
Pepperl+Fuchs Part Number
272713
Communication Standard
AS-Interface V3.0
Node Type
A/B Slave with Extended Addressing
Maximum Nodes
62
Input Points
2
Output Points
2
Input Type
3-Wire Sensors
Output Type
DC Roller Motors (Drum Motors)
Auxiliary Voltage
18-30 VDC
Operating Voltage
26.5-31.6V
Operating Current
≤35mA
Connection Type
M8 Connectors
AS-Interface Profile
S-7.A.E
IO Code
7
ID Code
A
ID1 Code
6
ID2 Code
E
Compatible Motors
Interroll EC310, EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK/PM500XC
Series
G20
Features
Configurable Start/Stop Ramps, Communication Monitoring, Function Display
Connection Method
Cable Piercing with Gold Plated Contact Pins
We warranty all items for 30 days from date of purchase.

SKU: AI0285
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: DC Roller Motors (Drum Motors)
Country/Region of Manufacture: Germany
Full Load Amps: ≤35mA
Manufacturer: Pepperl+Fuchs
Part Number: VBA-4E3A-G20-ZEL/M1L-P2
Controller Platform: AS-Interface
Shelf: K-10
Model: VBA-4E3A-G20-ZEL/M1L-P2
MPN: VBA-4E3A-G20-ZEL/M1L-P2
Type: I/O Module
