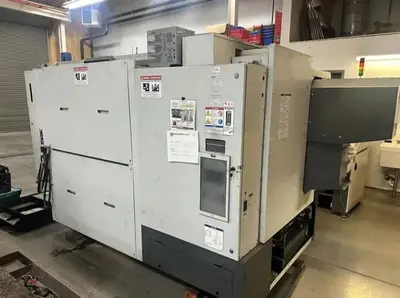

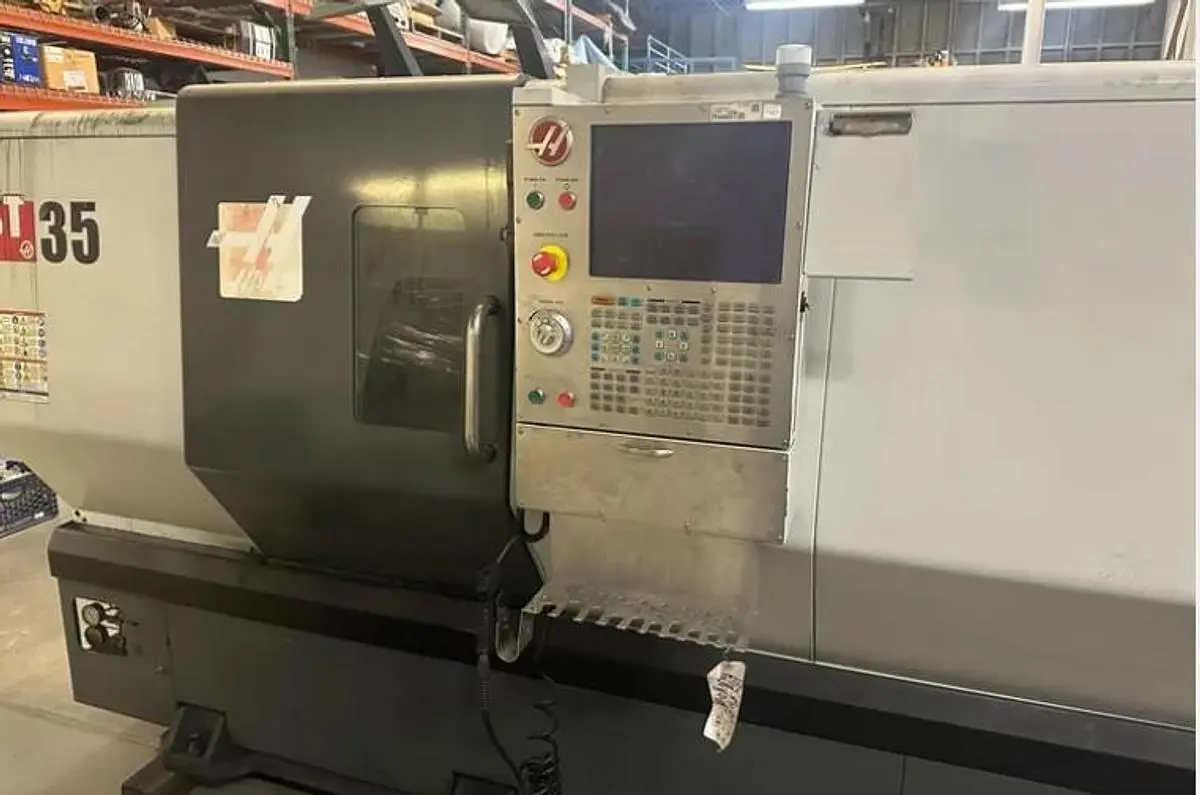

USED 2014 HAAS ST-35

4" Bar Capacity
Programmable Tailstock
15" 3 Jaw Hydraulic Chuck
2 Speed Gearbox
Tool Presetter
High Intensity Lighting
300 PSI High-Pressure Coolant
Remote Jog Handle

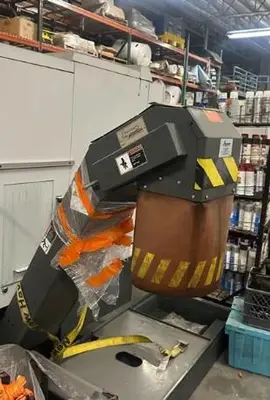

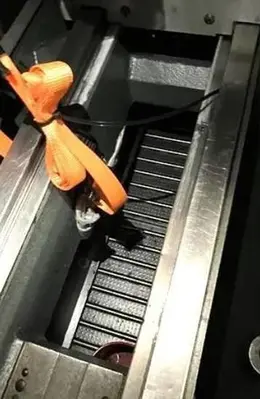

Chip Conveyor
Rigid Tapping
RS 232 Port Interface

**From Aerospace Facility, not used much**

The 2014 Haas ST-35 is a robust CNC lathe designed for high-performance machining. This used model features a 15-inch 3-jaw hydraulic chuck and offers a substantial bar capacity of 4 inches, making it ideal for handling large workpieces. Its maximum swing is 31.75 inches, with a turning diameter of up to 21 inches and a machining length capacity of 26 inches, providing flexibility for various production requirements.

This machine is equipped with a powerful 40 HP spindle motor achieving speeds up to 3,200 RPM, supported by a 2-speed gearbox for versatile operations. The X-axis and Z-axis offer travels of 12.75 inches and 26 inches, respectively, while the rapid traverse rate is an efficient 945 IPM. With a spindle bore of 4.62 inches, it features an A2-8 spindle nose and accommodates 12-station bolt-on turret positions for tool versatility.

Additional features include a tailstock with an MT #4 taper, chip conveyor, tool presetter, and high-pressure coolant system to enhance efficiency. Compact yet robust, the machine dimensions are 121 x 79 x 83 inches and it weighs 14,300 lbs., making it a solid choice for manufacturing spaces that require powerful, precision machining.

Chuck Size: 15" 3 Jaw Hydraulic
Maximum Swing: 31.75"
Maximum Turning Diameter: 21"
Maximum Machining Length: 26"
Maximum Bar Capacity: 4"
X-Axis Travel: 12.75"
Z-Axis Travel: 26"
Spindle Nose / Spindle Bore: A2-8" / 4.62"
Spindle Speeds: 3,200 RPM
Spindle Motor: 40 HP
Transmission: 2 Speed Gearbox
Number of Turret Positions: 12 Station Bolt on Type
Rapid Traverse Rates: 945 IPM
Tailstock Taper: MT #4
Machine Dimensions: 121" x 79" x 83"
Machine Weight: 14,300 lbs.
