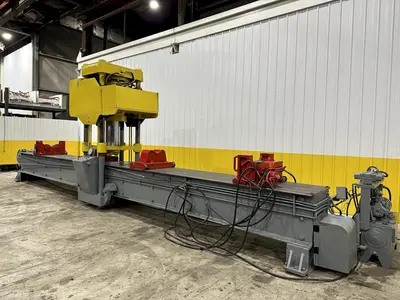

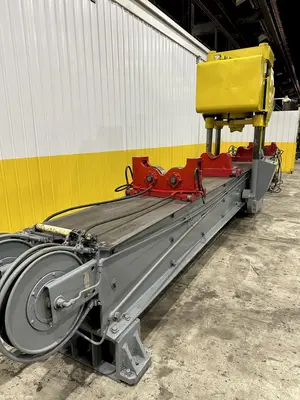

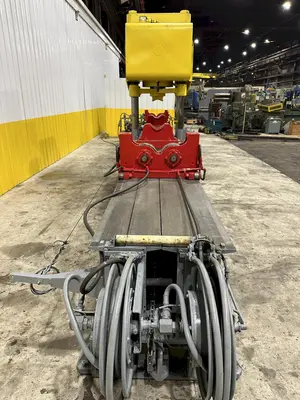

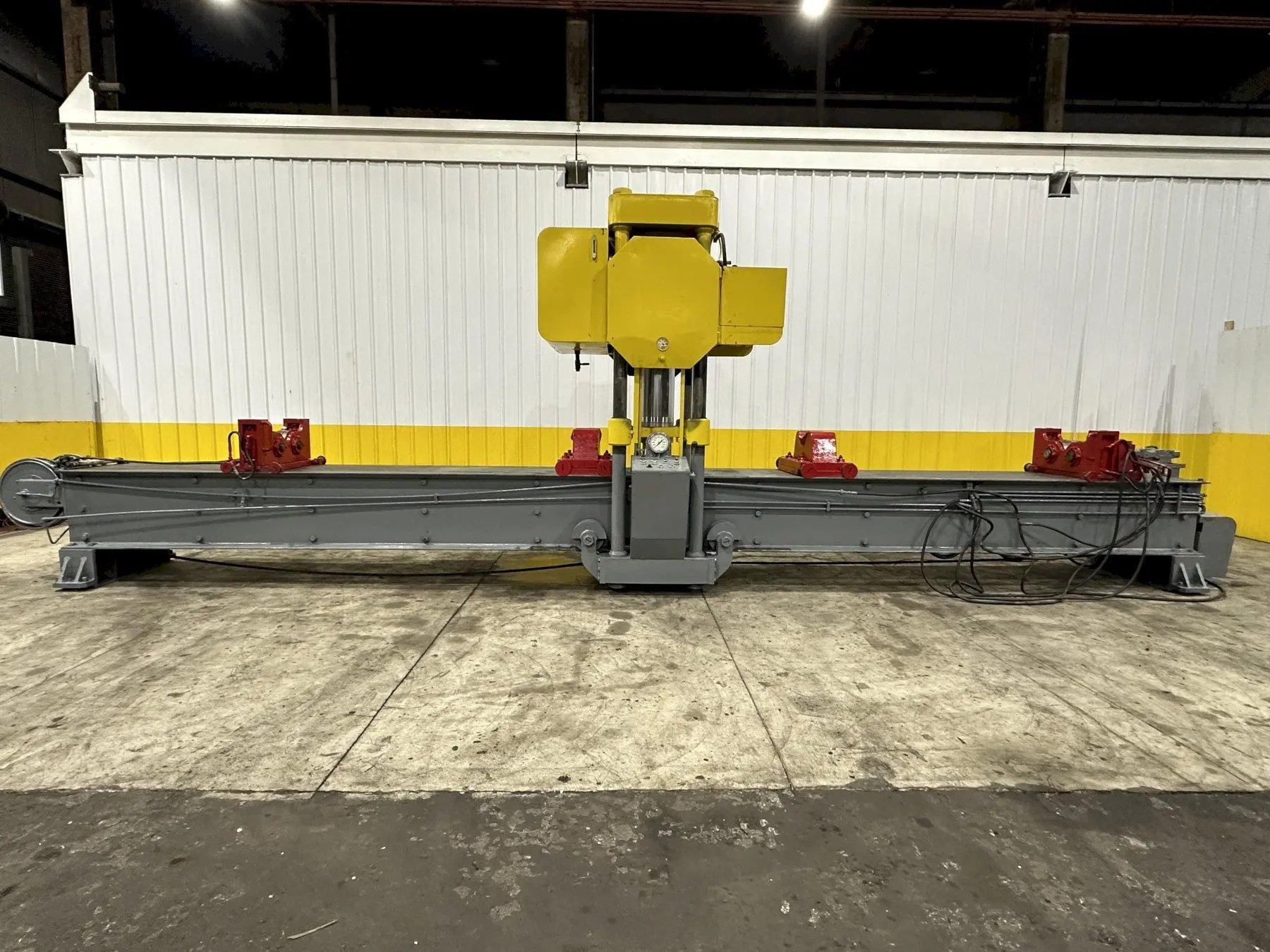

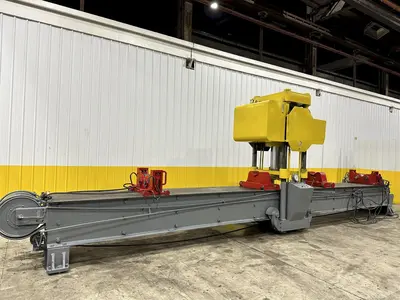

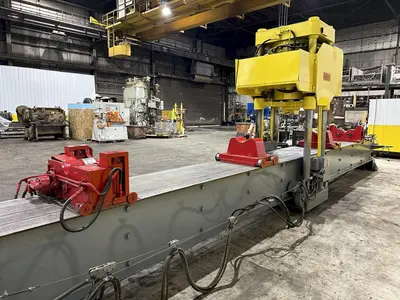

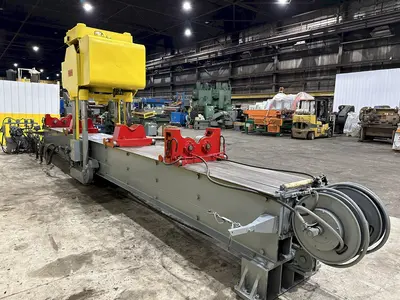

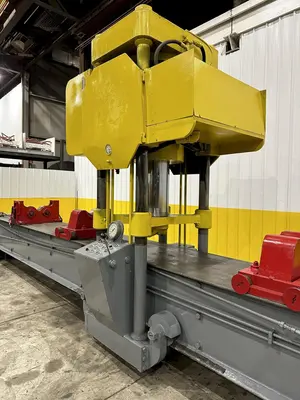

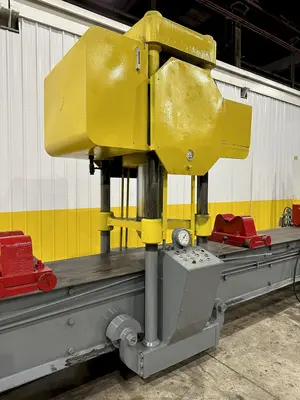

400 TON X 30' DRILCO TRAVELING HEAD HYDRAULIC STRAIGHTENING PRESS: STOCK #24953

SERIAL ....................... 11289
MODEL ........................ 400T
CAPACITY ..................... 400 TON
STROKE OF RAM ................ 15"

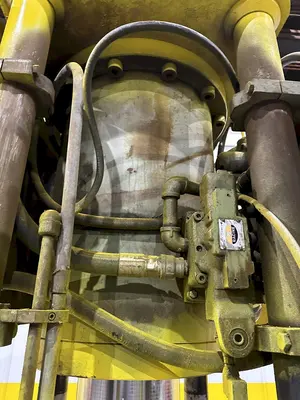

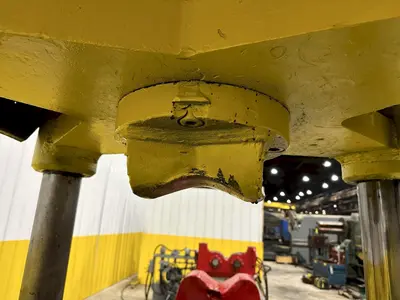

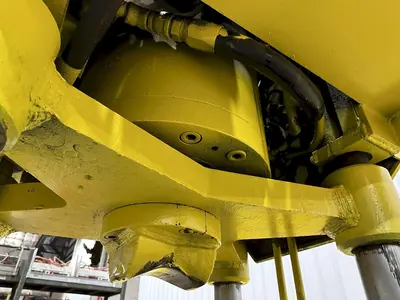

RAM BORE DIAMETER ............ 16"

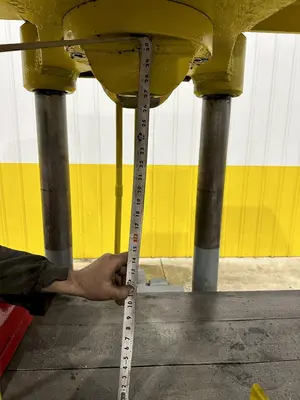

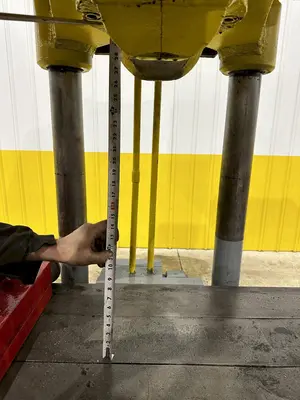

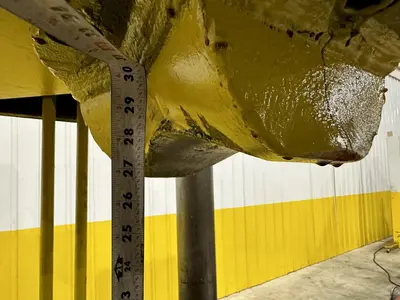

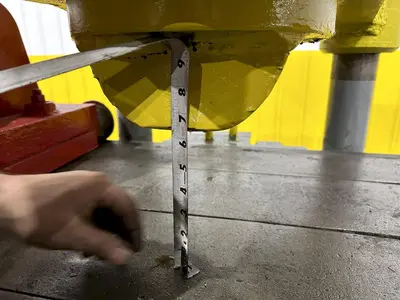

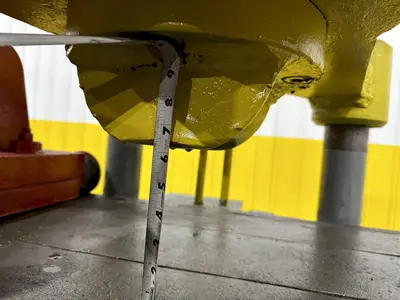

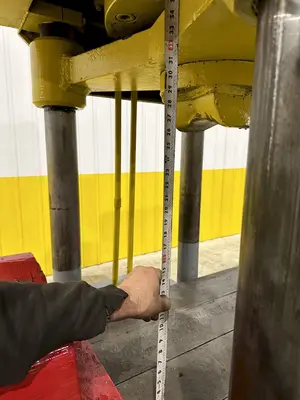

DAYLIGHT RAM TO BED .......... 26" MAX

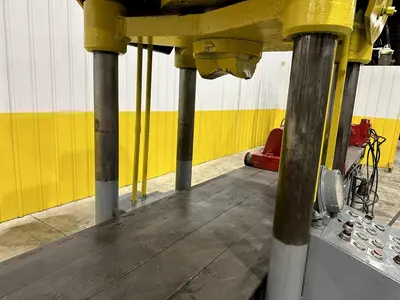

LENGTH OF TABLE .............. 360" (30 FT)
WIDTH OF TABLE ............... 29-1/2"
DISTANCE BETWEEN POSTS ....... 31"
TABLE HEIGHT FROM FLOOR ...... 36-1/2"
PRESS HEAD TRAVERSE .......... 26' - POWERED

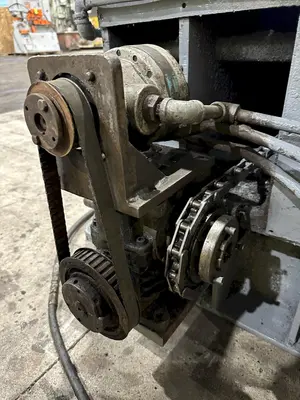

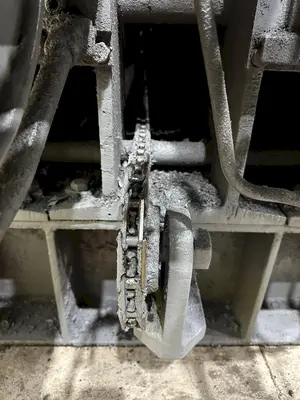

PRESS HEAD TRAVERSE .......... CHAIN DRIVEN

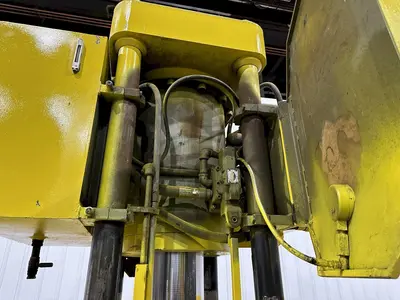

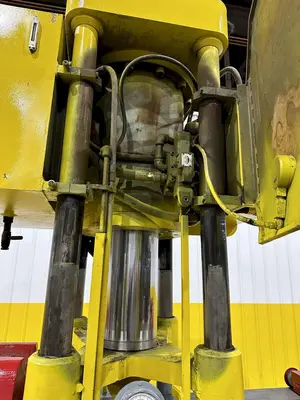

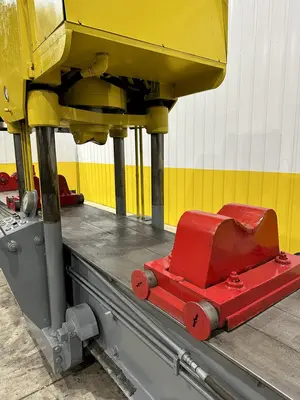

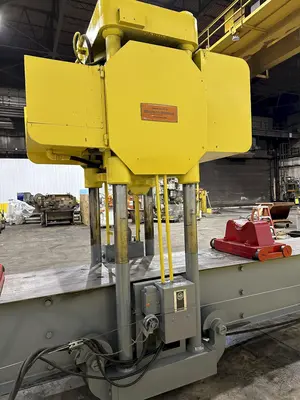

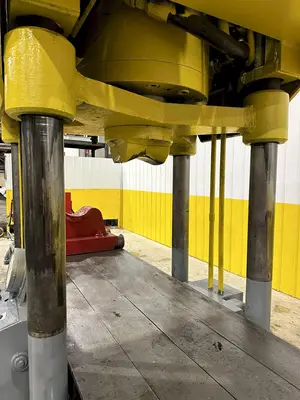

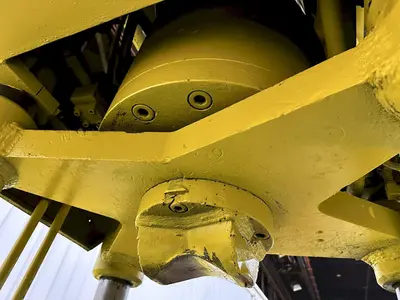

PRESS HEAD DESIGN ............ 4-POST, TIE-ROD
TONNAGE CONTROL .............. HAND LEVER

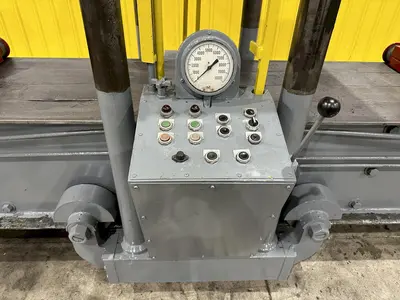

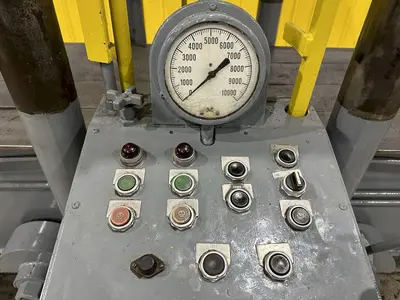

TONNAGE PRESSURE GAUGE ....... YES

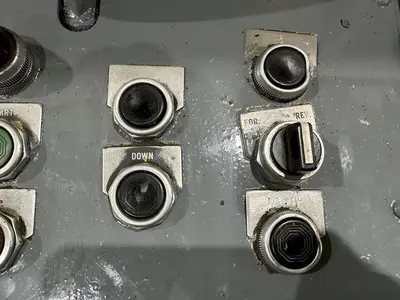

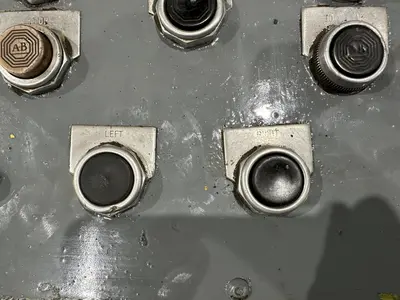

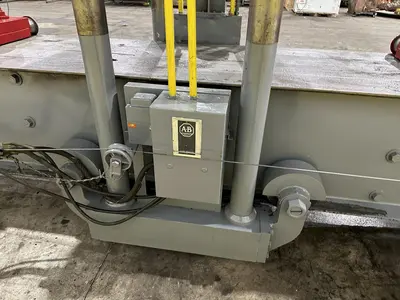

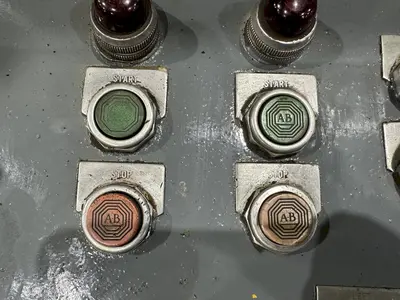

PUSH BUTTON TABLE CONTROLS ... YES

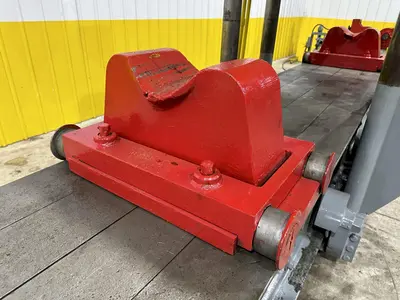

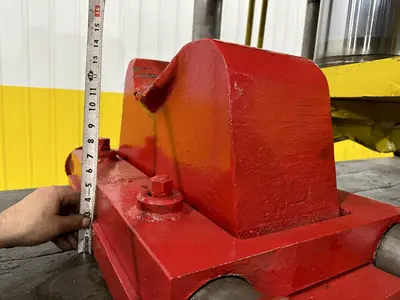

"V" STYLE PUSH BLOCKS ........ MOVABLE ON BED

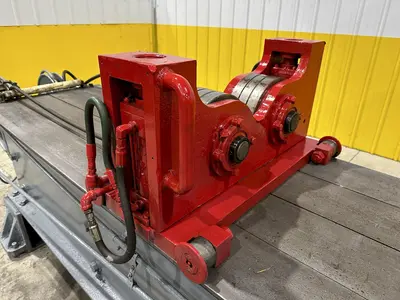

MATERIAL LIFT BLOCK .......... MOVABLE ON BED
LIFT BLOCK HYD CYL STROKE .... 5"

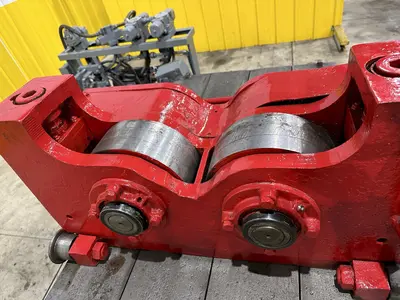

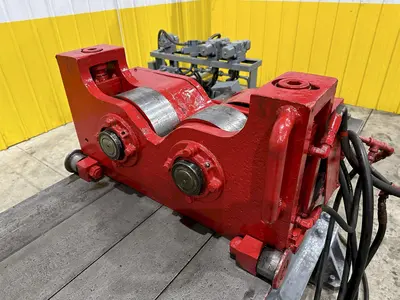

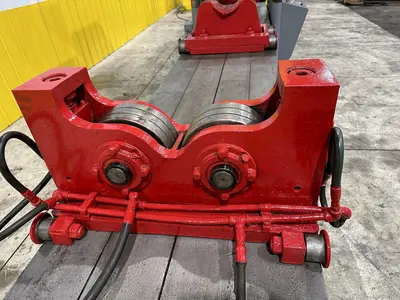

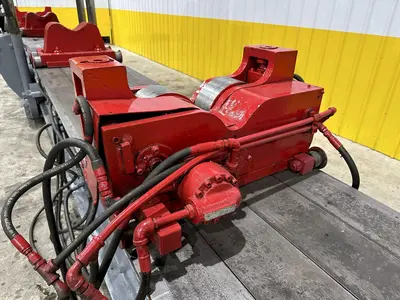

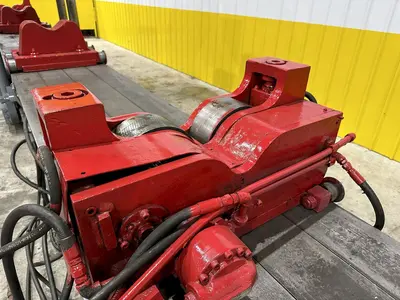

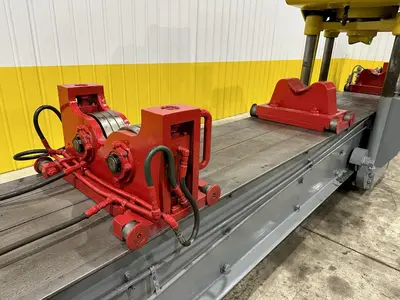

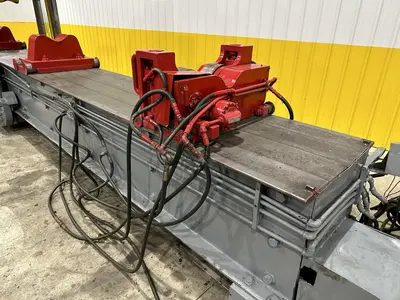

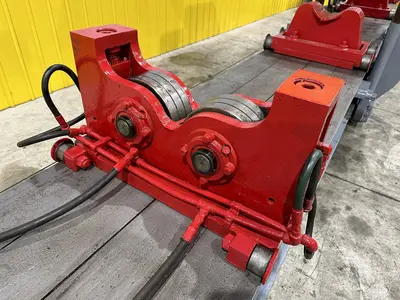

POWER TURNING ROLLS .......... YES, HYDRAULIC

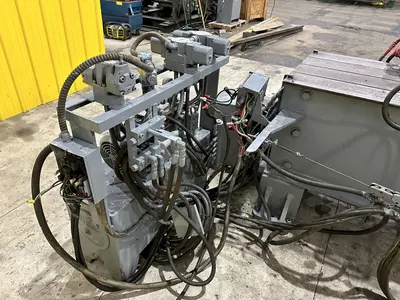

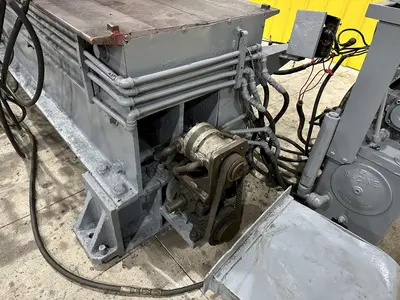

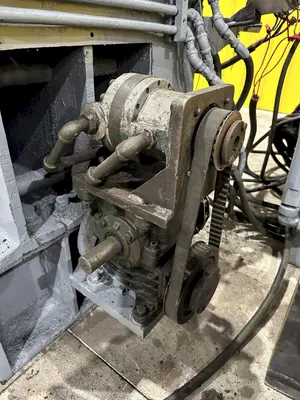

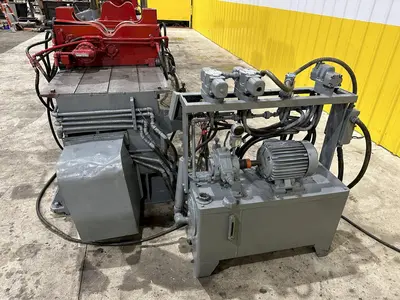

HYDRALIC UNIT - LIFT BLOCKS .. 5 HP

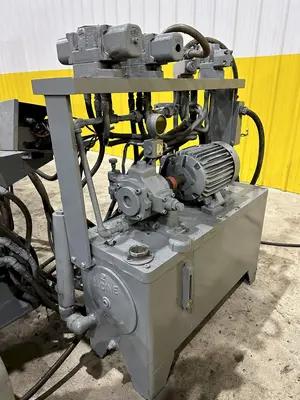

HYDRAULIC UNIT - FOR PRESS ... 15 HP

Brand
Not Specified
Type
Presses, Straightening
Stock No.
24953
