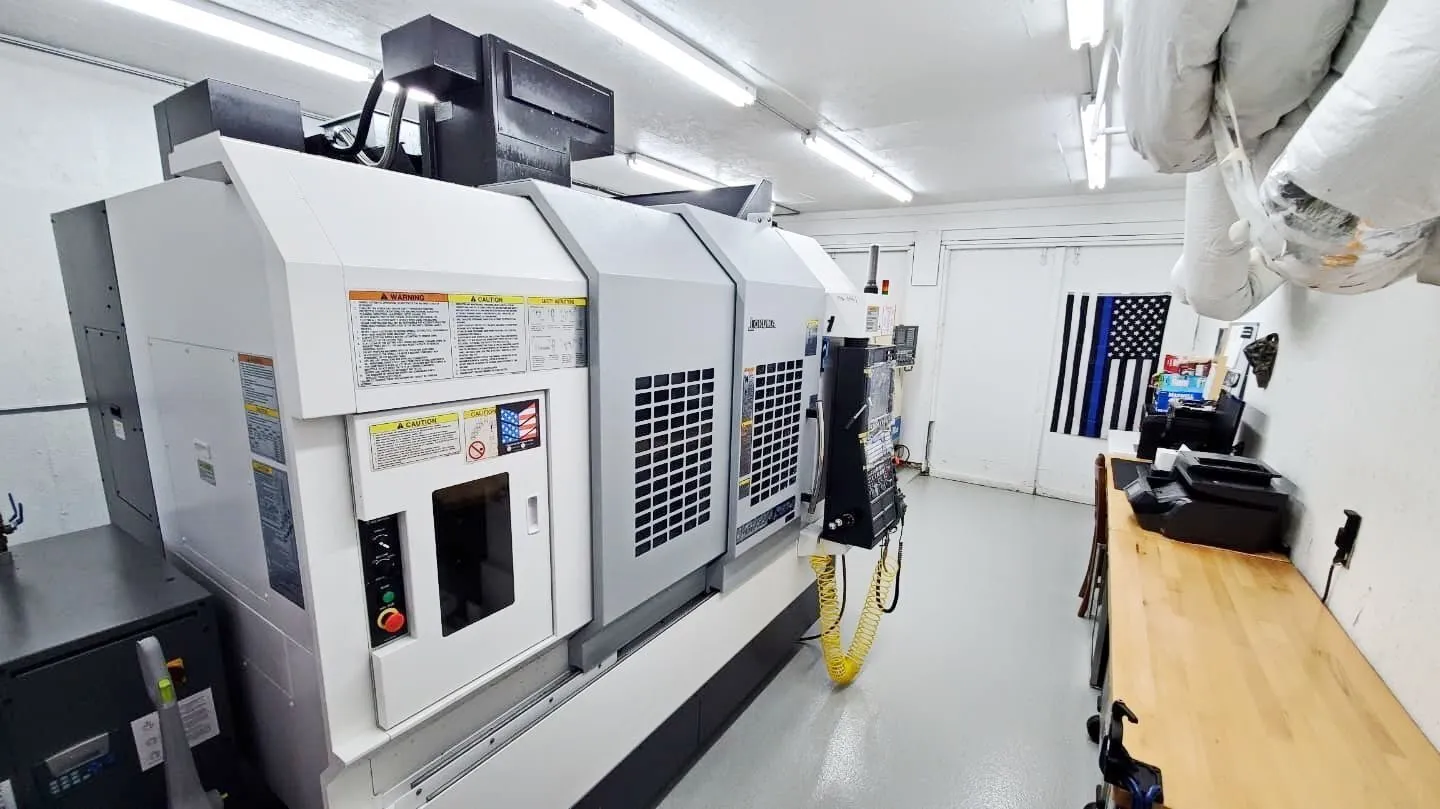

2019 Okuma Genos M560-V Vertical CNC Machining Center, 4th Axis Rotary Indexing Table, Renishaw RMP/RTS Probes, High-Pressure Coolant Unit, Chip Conveyor
| X-Axis | 41.34" | 1,050 mm |
| Y-Axis | 22.05" | 560.07 mm |
| Z-Axis | 18.11" | 459.99 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 22.05" | 560.07 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,980 lb | 898.1 kg |
| Distance Spindle Nose to Table | 24.02" | 610.11 mm |
| Rapids (X/Y/Z) | 1,575 / 1,575 / 1,260 in/min. | 1,575 / 1,575 / 1,260 in/min. |
| Control | CNC (Okuma OSP-P300M) | CNC (Okuma OSP-P300M) |
| Dimensions | 125.75" X 100.94" X 108.11" | 125.75" X 100.94" X 108.11" |
| Weight | 18,260 lb | 18,260 lb |
*under 1000 hrs spindle time!
ATS RT-160 4th axis indexer
Renishaw RMP/RTS probes
MP Systems RF8 high-pressure coolant unit
Spindle cooling system
Chip Conveyor
