USED 2013 FANUC FANUC R2000IB/210F

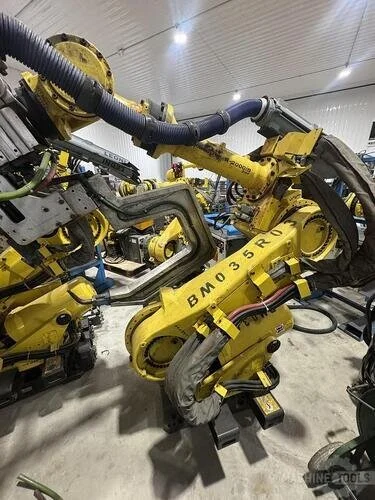

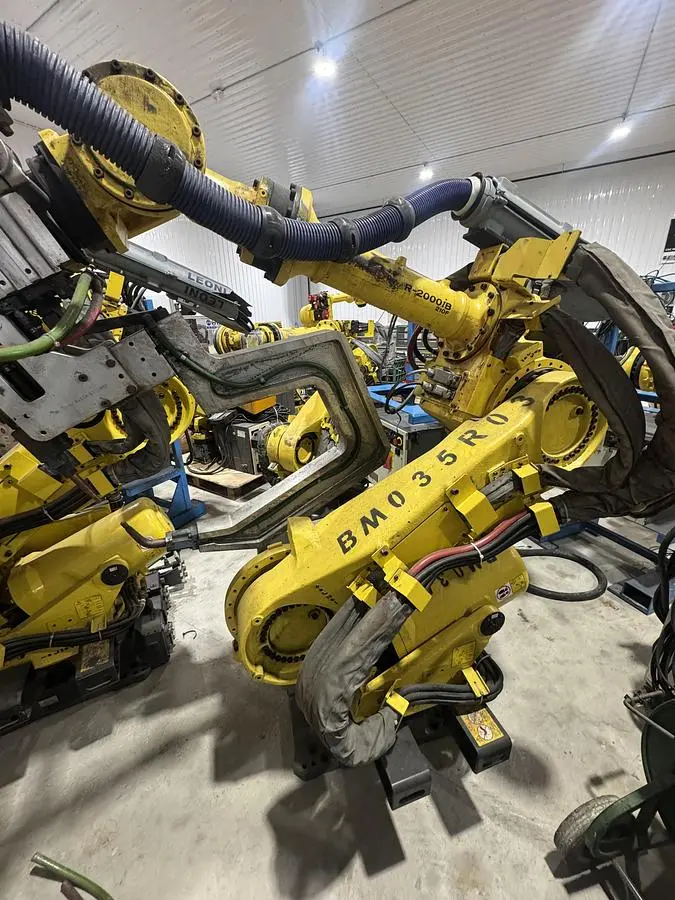

FANUC R-2000iB/210F Robot, R-30iA Control, Used, 2013

This used FANUC R-2000iB/210F (2013) is a robot available from R.A.B. Industries. It is equipped with the R-30iA controller and 6-axis configuration.

1-USED FANUC R-2000iB/210F 6 AXES ROBOT WITH R-30iA CONTROLLER

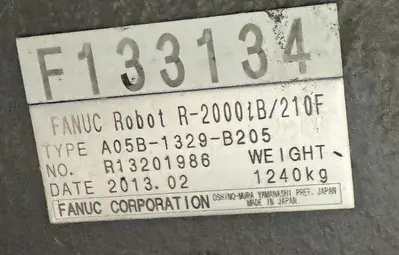

SERIAL NUMBER F133134

FANUC PART NUMBER FOR ARM A05B-1329-B205

DATE OF MFG. 02/2013

STK#105441

TESTED READY TO GO

===========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

APPLICATIONS:

[Resistance Welding Robots](https://www.rabindustries.com/blog/59713-industrial-robot-resistance-welding-applications)

[Spot Welding Robots](https://www.rabindustries.com/blog/59679-application-industrial-robotic-spot-welding)

Injection Molding Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Assembly Robots

Fiberglass Cutting Robots

The[Fanuc R‑2000iB/​210F](https://www.rabindustries.com/blog/7705-fanuc-r-2000ib-210f-data-sheet-r-series-robot) is a floor-mount­ed robot with an extreme­ly high pay­load of 210kg (462lbs), 2655mm hor­i­zon­tal reach, and six degrees of free­dom. It is great for a vari­ety of appli­ca­tions, such as mate­r­i­al han­dling, weld­ing, dis­pens­ing, and mate­r­i­al removal. The R‑2000iB/​210F has a slim arm and wrist which helps it fit into con­fined and hard to reach places, giv­ing man­u­fac­tur­ers even more ver­sa­til­i­ty when plan­ning their appli­ca­tions. This also helps to reduce inter­fer­ence with sys­tem periph­er­als. Despite the slim arm, the R‑2000iB/​210F has a very large work enve­lope with the abil­i­ty to reach over­head and behind. You can find this robot running on both the Fanuc R30iA or R30iB robot controller platforms depending on date of mfg. The R-2000iB/210F is one of the most popular robots Fanuc has ever produced.

Robot Specifications:

PAYLOAD 210 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.3 mm

MASS 1240 kg

STRUCTURE Articulated

MOUNTING Floor

Robot Motion Speed:

J1 95 °/s (1.66 rad/s)

J2 90 °/s (1.57 rad/s)

J3 95 °/s (1.66 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)

Robot Motion Range:

J1 ±180°

J2 +75° - 60°

J3 +230° - 132°

J4 ±360°

J5 ±125°

J6 ±360°

EQUIPPED WITH:

FANUC R30iA ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
