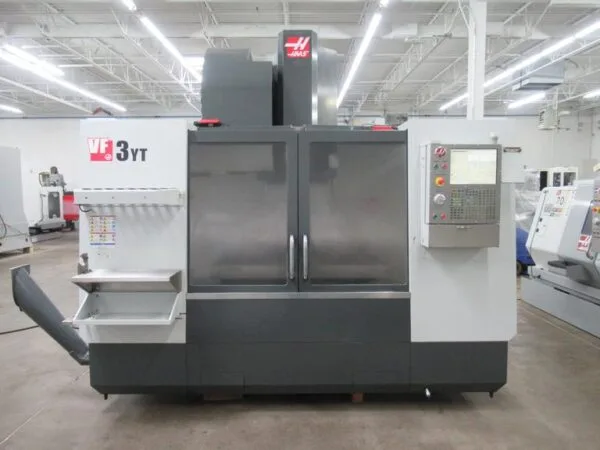

Haas VF3YT CNC Mill
CNC Vertical Machining Center
Specification:
Machine Control Haas MainCon CNC Control
Table Size 54″ x 25″
Machine Travels (X/Y/Z) 40″ x 26″ x 25″
Spindle To Table Distance 4″ – 29″
Table Capacity 3,500 lbs.
Spindle Taper CT 40
Spindle Speeds 8,100 RPM Max
Transmission 2-Speed Gearbox
Rapid Traverse Rate (X/Y/Z) 1,000 ipm X / 710 ipm Y & Z
Maximum Cutting Feed Rate 650 ipm
Tool Changer Style Side Mount Tool Changer, Twin Arm
Tool Changer Capacity 40 Stations
Tool Change Time 1.8 Sec. Tool to Tool
Max Tool weight 12 Lbs.
Spindle Drive 20 HP Vector Spindle Drive
Approximate Machine Dimensions: 144.00″L x 97.00″W x 113.00″H
Approximate Weight: 14000.00 lbs.
Haas MainCon CNC Control, 8,100 RPM Direct Inline Drive Spindle, 2-Speed Gearbox, 40 Station Twin-
Arm Automatic Tool Changer, Haas Probing System with Renishaw Tool and Parts Probes, 300 PSI Thru-
Spindle Coolant, Chip Auger, Auxiliary Filter, USB Port, Programmable Coolant Nozzle, Coolant Pumps and Tank
