| size | 24" x 60" | 24" x 60" |
| Swing | 24.8" | 629.92 mm |
| Centers | 60" | 1,524 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 14.5" | 368.3 mm |

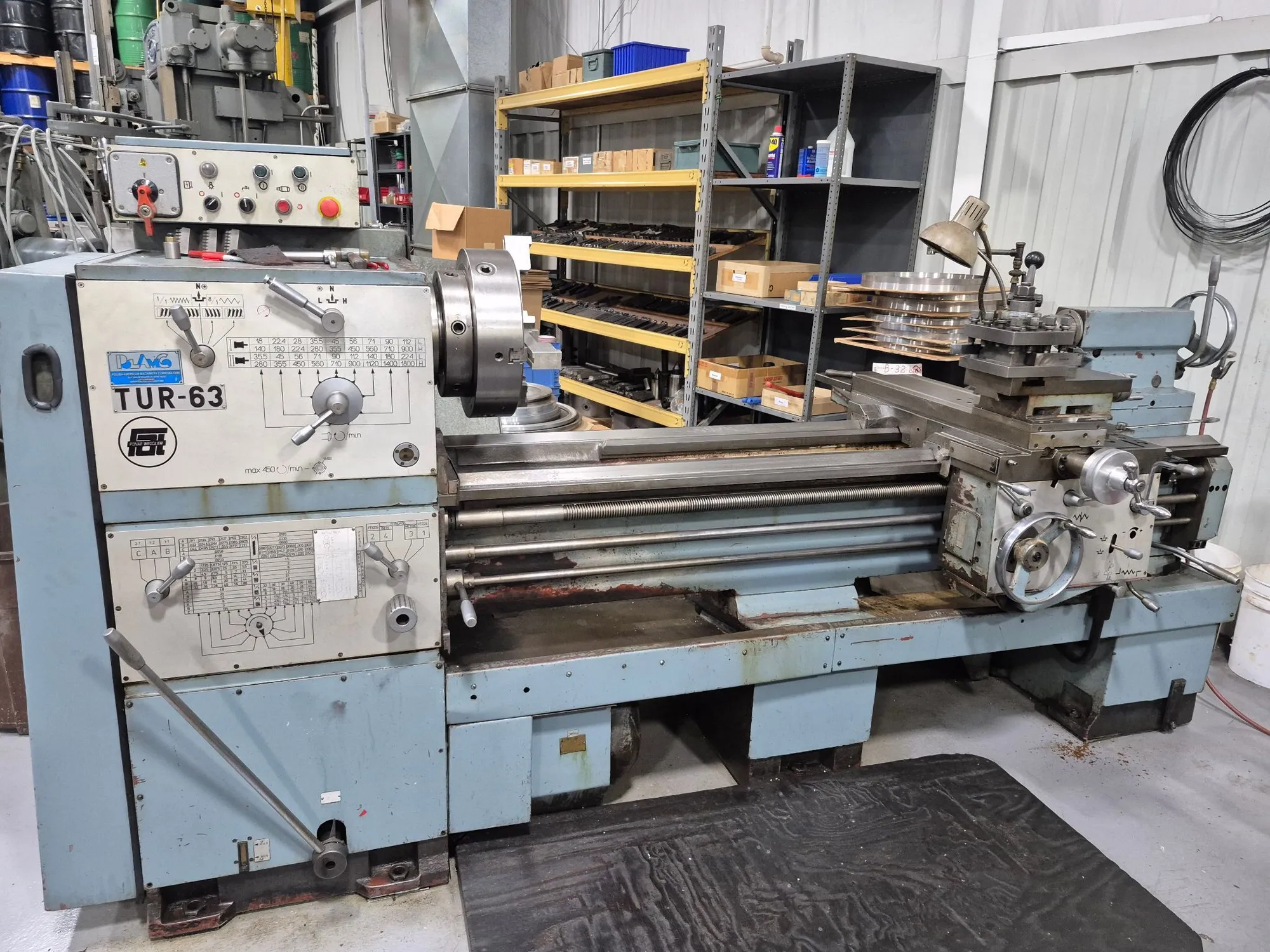

Polamco Model TUR63A/60 24" X 60" Geared Head Engine Lathe
Specifications and Equipment
Swing over bed ways: 24"
Swing over cross slide: 14.9"
Distance between centers: 60"
Spindle Bore: 5 1/4"
Spindle Nose (Front and Rear): D1-11
Spindle speeds (21 Speeds): 28 - 1120 RPM
Spindle headstock gear ranges: 2
Feeds Range: .003 - .967 IPR
16" 3 Jaw Chuck
Inch Metric Dials
Hard Ways
Manuals
Tailstock
Dial Thread Chasing Attachment
