USED BULLARD 36" CUTMASTER
Overview

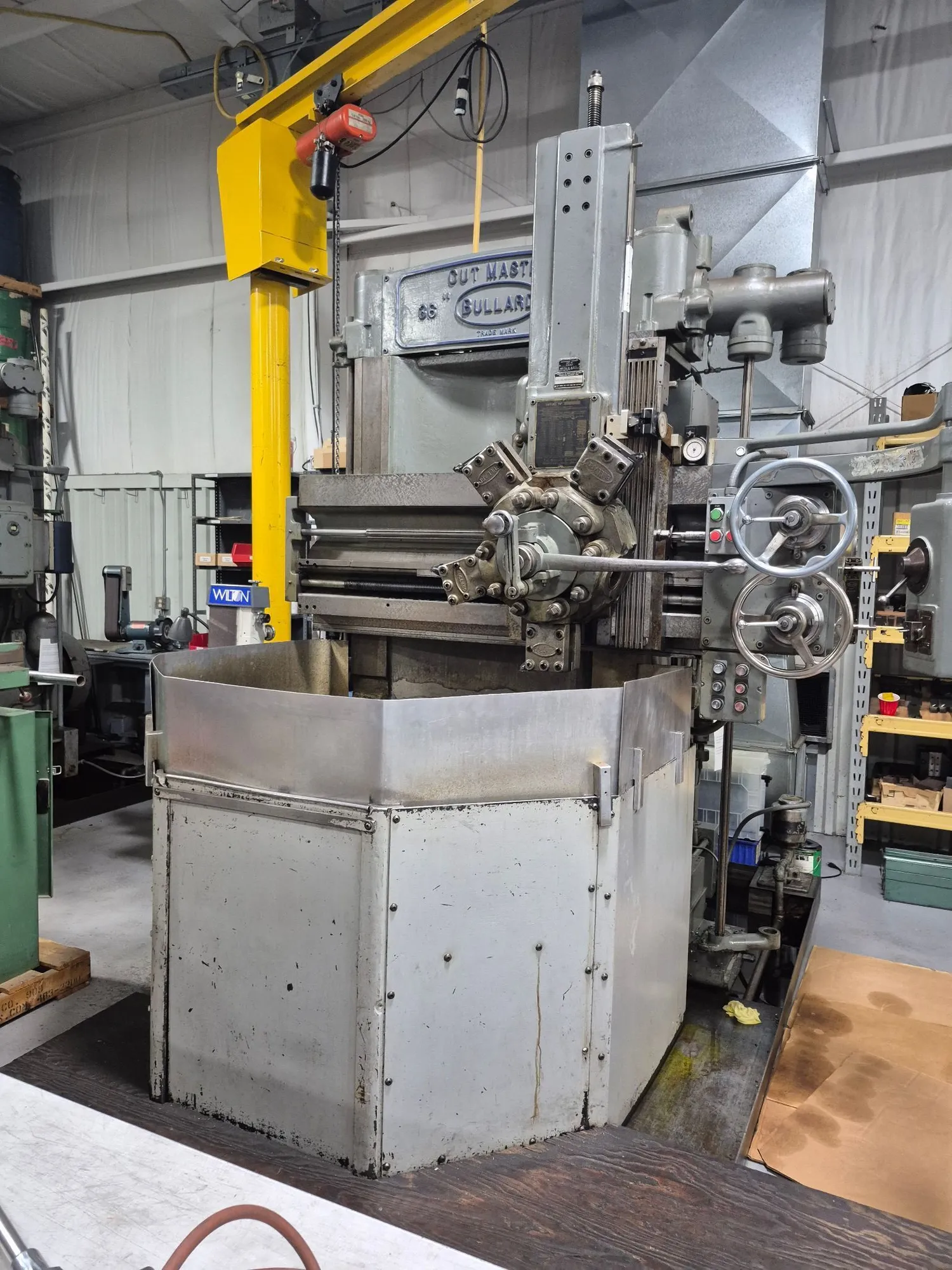

Bullard Cutmaster 36" Vertical Turret Lathe, 36" 3 Jaw Independent Chuck, Turret Head, (2) Available
Specs
36" Bullard Cutmaster Vertical Turret Lathe
Table Diameter 36"
Maximum Swing
Maximum Distance Table To Rail 30"
Cross Rail Vertical Travel 20"
Max. Distance Table To Face Of Turret 41.25"
Turret Head Vertical Travel 26"
Turret Head Toolpost Holes 2.75"
Table Speeds 4.9 - 180 RPM
Feeds .0026 - .500 IPR
Motor 20 HP 1750 RPM
Dimensions
98'' front to back
112'' height with rail and head in low position
105'' side to side
Machine weight 20,400 lbs
Equipped With
36" 3 Jaw Combination Independent Chuck
5 Position Turret
* 36'' 3 jaw combination chuck all chuck slides and keys are in very good condition,jaws move freely they have used a fixture on this machine so the chuck in in very good condition.
* Table speeds are 4.9- 180 RPM I ran the machine thru all speed ranges and the transmission sound very good all ranges in working properly.
* Cross rail and turret slide ways are in good condition, and lead screws are also in good condition axis move smoothly in each direction.
* The machine has dial type position indicators for both X & Z axis position.
* The feeds, rapid traverse and hand wheels are all in good working condition The rapid traverse spline shaft has been replaced with an AC motor which good upgrade.
* The main motor is 1750 RPM 20 HP
* Coolant pump was turned on but no coolant in the pan.
Note: This machine is in very good condition and has been very well maintained.
