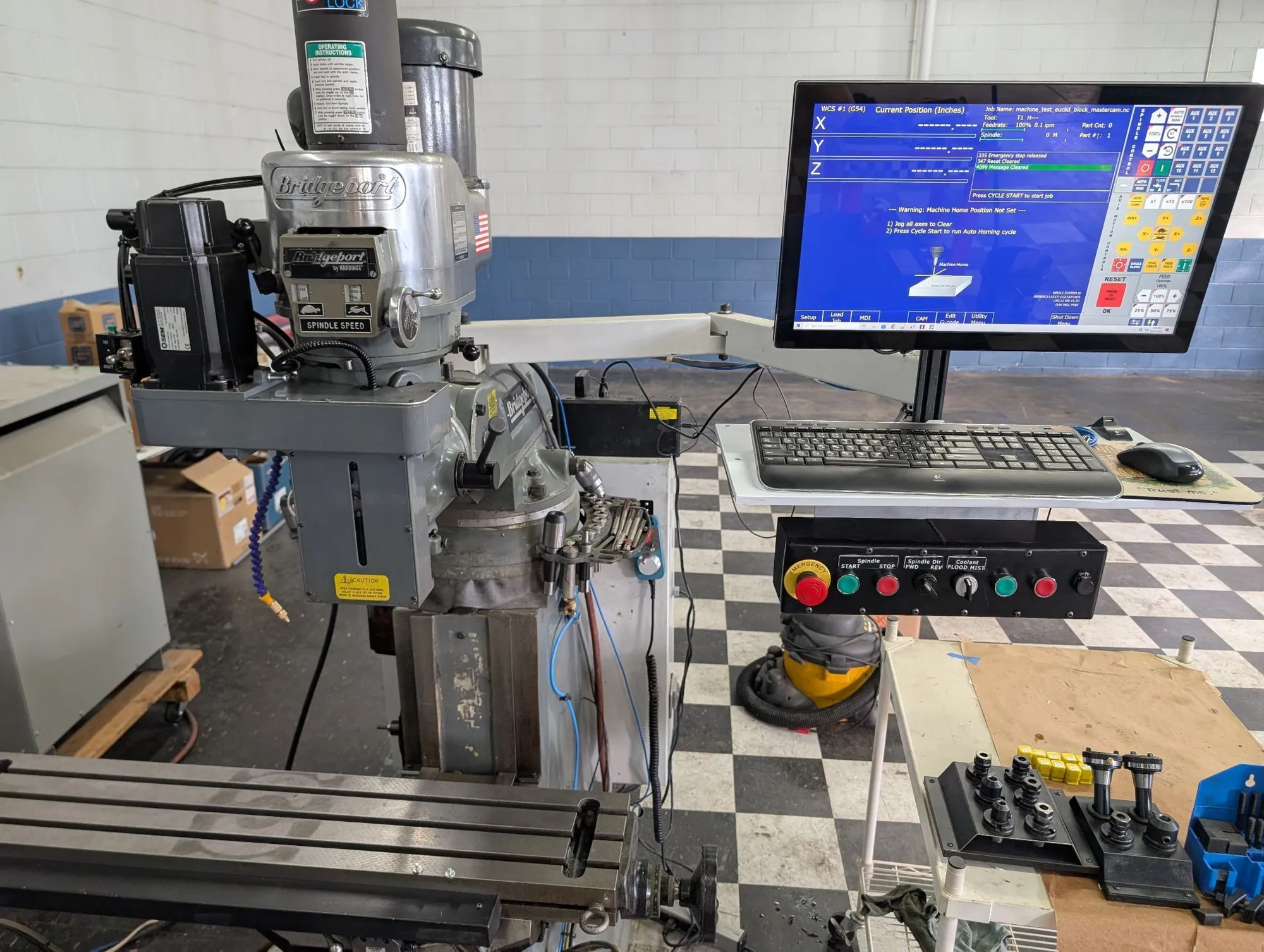

Bridgeport 3-Axis CNC Knee Mill Retrofit with Centroid M39 Control.
Professionally reconditioned.
Excellent Condition!
| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 36" | 914.4 mm |
| Travel-Cross | 11" | 279.4 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R-8 | R-8 |
| Control | CNC (Centroid) | CNC (Centroid) |
Typical Specifications (Retrofit Basis)
**All OEM Specifications are for reference only and are subject to confirmation by the buyer**
Controller: Centroid M39
Table Size: Typically 9" x 49"
Travels (X/Y/Z): Approx. 36" (X), 11" (Y), 5" (Quill)
Spindle Speed: 60 - 4200 RPM
Spindle Motor: 2 HP
Feed Rates: Up to 200 IPM rapid rate
Centroid M39 CNC Control with Independent Keyboard & Monitor
Air- operated draw bar
Variable Speed Motor
Remote Jog MPG
Quick-change Collet adapters and toolholders - as pictured
R-8 Collets - as pictured
Automatic way-lube oiling system
Spindle-air in-line oiler / filtration system
flood Coolant
Key Features of Centroid Retrofit:
Performance: High-speed processing with conversational and G-code programming.
Functionality: Rigid tapping, 3-axis simultaneous interpolation, and automatic tool height measurement.
Interface: User-friendly conversational interface, color graphics, USB port, and Ethernet.
