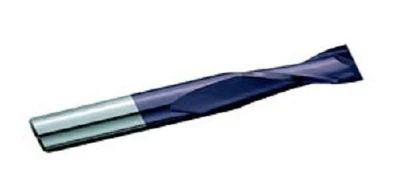

GARR Tool 11367 220MA 7/8" 2 Flute Square End Mill Solid Carbide New Tools

GARR Tool 11367 220MA 7/8" 2 Flute Square End Mill Solid Carbide New Tools
Series 220MA EDP# 11367
7/8" EM SQ 2FL SE SMG*TiALN*
Solid submicron grain carbide end mill - center cutting
30 degree helix - rhs/rhc
Up to 40% faster than uncoated
Dry or semi-dry machining
TOLERANCES
flute dia. +.000-.002
3mm - 6mm shank dia. +.0000-.0003" (-0.0000-0.0075mm)
1/4" - 1" shank dia. -.0001-.0004" (-0.0025-0.0100mm)
Edp # Flutes Flute Dia. Flute Length Shank Dia. Neck Dia.
11367 2 0.875 1.5 0.875 0.0
Overall Length Reach Length (l.b.s.) Neck Length Behind Flutes Corner Radius End Type Flat? Weight (lbs)
4.0 0.0 0.0 0.0 SQ N 1.06
