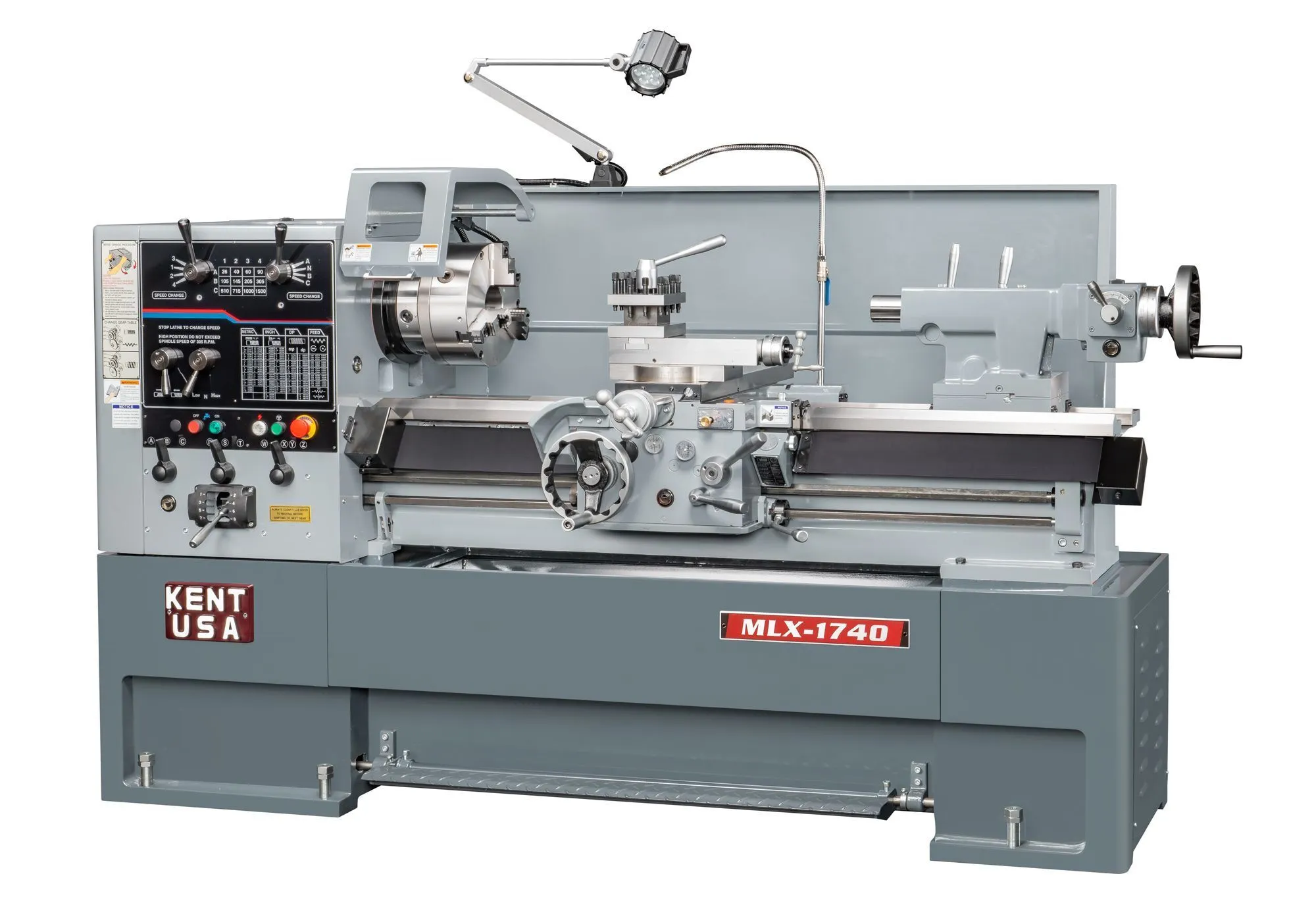

Kent USA precision lathes are designed for turning medium to heavy workpieces with tighter tolerances. These reliable workhorses feature heavy-duty construction throughout to cut big and heavy workpieces. Our precision lathes are built with a solid full-length casting base. In addition, front-loading chip tray for easier cleaning, adjustable overload feed clutches, and quick reversal feed from apron – all of which come standard.
| Swing | 17" | 431.8 mm |
| Centers | 40" | 1,016 mm |
| Threading | 2-112 TPI | 2-112 TPI |
| Taper | MT#4 | MT#4 |
| Power | 10 hp | 7.5 kW |
| RPM | 0 RPM | 0 RPM |
| Dimensions | 80 x 32 x 52 in | 80 x 32 x 52 in |
| Weight | 2640 lbs | 2640 lbs |
7.5 HP (10 HP on MLX model) Spindle Motor, 12-Speeds
3.125” Spindle Through Hole
Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning
Adjustable Over-load Feed Clutches
Quick Reversal Feed from Apron
Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops (ML Model Only)
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials with Quick-change Sleeve
3-jaw chuck
Steady rest
Follow rest
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
3-position carriage stop
Bed mount carriage stop
