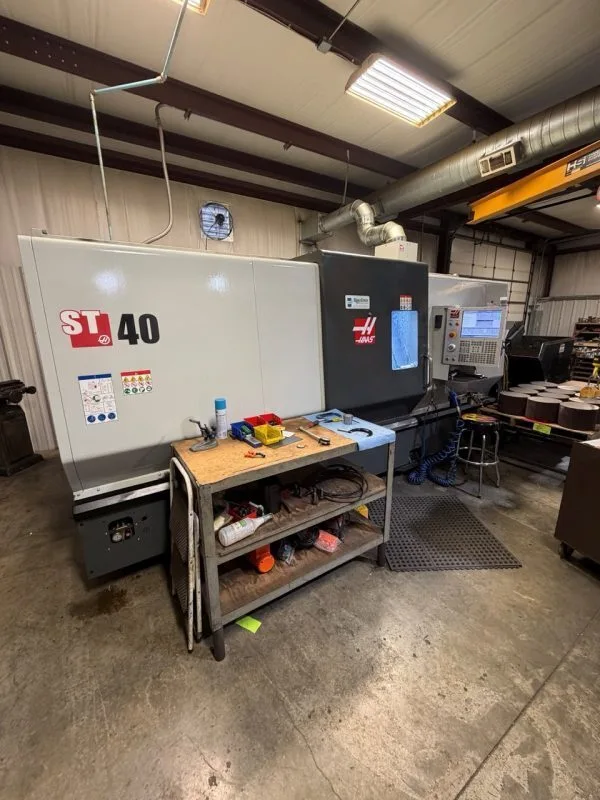

Haas ST-40 CNC Turning Center, New in 2022 with Extra Performance Package
| Swing | 34.5" | 876.3 mm |
| Machining Length | 1,118 mm | 44.016" |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 216″ x 95″ x 110″ | 216″ x 95″ x 110″ |
| Weight | 21,740 lbs | 21,740 lbs |
General Specifications:
Chuck Size: 15″
Max. Part Swing: 35.50″
Max. Cutting Diameter: 30″
Max. Cutting Length: 44″
Bar Capacity: 4″
X-Axis: 20″
Z-Axis: 44″
Spindle Nose: A2-8
Spindle Motor: 55 HP
Spindle Bore: 4.62″
Tool Capacity: 12
Spindle Speed: 2,400 RPM
Electrical: 220 V 3 Phase
Run Time: 9,912
Dimensions: 216″ x 95″ x 110″ / 21,740 lbs
Haas CNC Control
1 GB Memory
Visual Part Programming System
Belt Type Chip Conveyor
Extra Performance Package (55 HP Spindle Motor)
Programmable Servo Tailstock
Maintenance History
