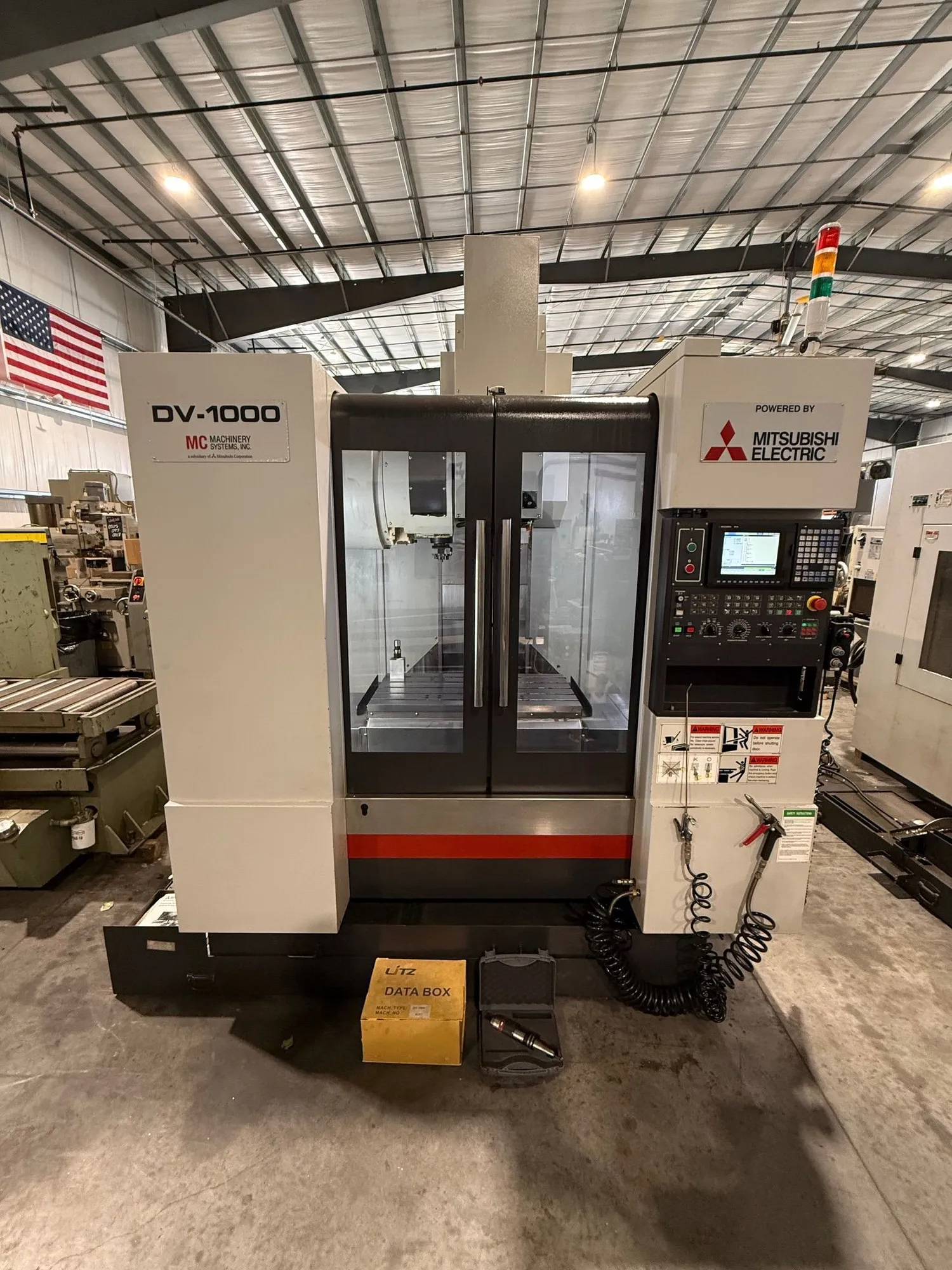

MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8159
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 22" | 558.8 mm |
| Table-L | 39.25" | 996.95 mm |
| Dimensions | 90” x 88” x 103” H | 90” x 88” x 103” H |
| Weight | 15,000 Lbs. | 15,000 Lbs. |
MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8159
Reference # 8159
Model # DV-1000
Serial # 61J100263
Year of manufacture- 9/2015’
Table size- 22” x 39.3”
Maximum table weight- 1,650 Lbs.
X axis travel- 40.2”
Y axis travel- 22”
Z axis travel- 23.6”
Spindle taper- CAT-40
Spindle speed- 15,000 R.P.M.
Spindle nose to table- 28.9” Max
Maximum cutting feeds- 787 I.P.M.
Rapids X,Y,Z- 1,417 I.P.M.
Machine cut primary plastic material
Machine hours- auto operation 1,543 , auto start- 1,407
Mitsubishi M70 CNC Control with M.P.G. manual pulse generator
Probing option with Probe and Table touch off
Rigid tapping
Chip auger
Spindle chiller
Coolant system
Leveling feet
Chip bucket
15 H.P. Spindle motor
Machine is wired for 220 Volt / 3 phase / 60 H.Z.
